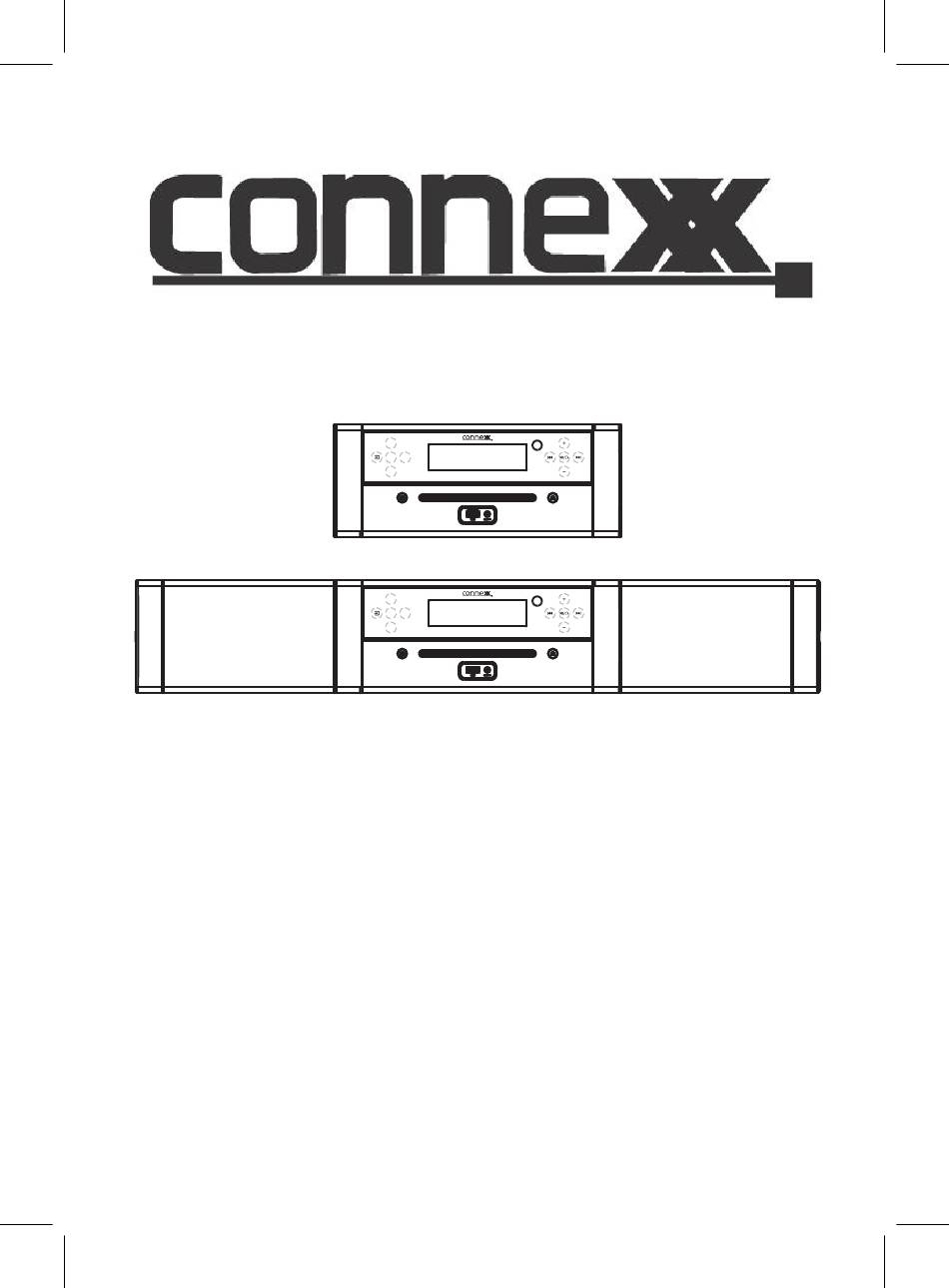

- Page 1 MODEL:SBB-75136 / WMS-DVDZ3-SB / WMS-DVDZ3 PAIR PAIR - INSTALLATION AND OPERATION MANUAL - PLEASE READ INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION....................3 FEATURES......................PARTS INCLUDED WITH MAIN UNIT.............. IMPORTANT SAFETY INSTRUCTIONS............ABOUT DISCS....................PLACING AND MOUNTING................GENERAL VIEW....................SPEAKER/POWER WIRE SOCKET DIAGRAM..........REMOTE CONTROL..................BATTERY INSTALLATION--REMOTE CONTROL........GENERAL OPERATIONS................LISTEN TO FM RADIO................... BLUETOOTH PAIRING AND PLAYBACK............ADDING OPTIONAL EXTERNAL SUBWOOFER........... CONNECT USING OPTICAL................ -
Page 3: Introduction
INTRODUCTION Thank you for choosing a Connexx product. We hope you will find the instructions in this owner's manual clear and easy to follow. If you take a few minutes to review, you will learn how to use all the features of your new media center w/DVD for maximum enjoyment. -
Page 4: Important Safety Instructions
The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to CAUTION the presence of uninsulated “dangerous voltage” RISK OF ELECTRIC SHOCK within the product’s enclosure that may be of DO NOT OPEN sufficient magnitude to constitute a risk of electric CAUTION: TO REDUCE THE RISK OF shock to persons. - Page 5 6 ) Clean only with dry cloth 13 ) Refer all servicing to qualified service Unplug this product from the wall outlet before personnel. Servicing is required when the has been damaged in any way, such cleaning. Do not use liquid cleaners or aerosol apparatus as power-supply cord or plug is damaged, liquid cleaners.
-
Page 6: About Discs
ABOUT DISCS The region number for this DVD Player is: 1 See the following page for information regarding region numbers. PLAYABLE DISCS: The following discs can be played back on this DVD player: DISC TYPES: Data on most DVDs is divided into sections called titles and then into subsections called chapters, each of which is given a title or chapter number. -
Page 7: Placing And Mounting
PLACING & MOUNTING 1. Placing When placing the media center in any type of enclosed space, be sure to allow space around it for ventilation. If placing in a tight space without ventilation, heat generated from the unit could produce a potential heat hazard. -
Page 8: General View

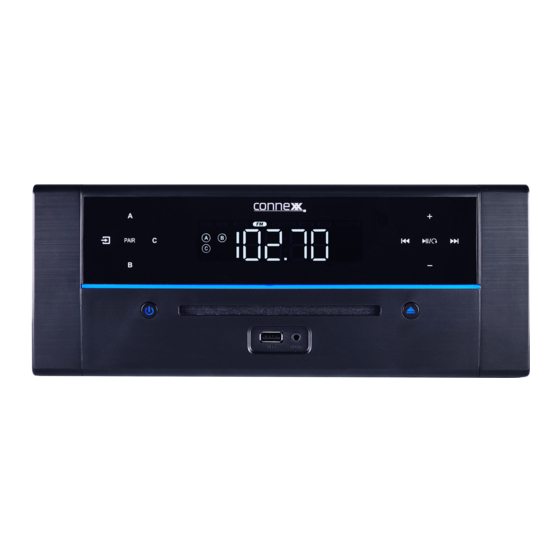

GENERAL VIEW Front View PAIR 10. Next touch button 1. Zone A touch button 11. Play/pause, Station recall touch button 2. Zone C touch button 12. Volume down touch button 3. Display 4. Remote sensor 13. Power on/off button 14. USB port 5. - Page 9 Rear View HDMI OUT (ARC) OPTICAL IN EXT IR TV AUDIO IN 5. EXT IR jack 1. VIDEO OUT jacks 6. OPTICAL IN jack 2. HDMI OUT (ARC) jack 7. EXTERNAL SUBWOOFER connector 3. ANTENNA jack 4. TV AUDIO IN jacks 8.
-
Page 10: Speaker/Power Wire Socket Diagram
SPEAKER/POWER WIRE SOCKET DIAGRAM GRAY - B RIGHT + SPEAKER (6X4-ohms) WIRING COLOR CODE GUIDE 12V DC CAUTION! Power Connecting the speakers Extension incorrectly will cause distortion and damage the power amplifier. RED - POWER IN 12V + BLACK - POWER GND 10A FUSE VIOLET - C RIGHT + BLACK - POWER GND... -
Page 11: Remote Control
REMOTE CONTROL 1. Power on/off button 2. PAIR button 3. REP. (repeat) button 4. Zone A button PAIR REP. TUNE- TUNE+ 5. Zone B button 6. Source button 7. Fast forward/Up button 8. Previous/Left button 9. Fast backward/Down button 10. SETUP button 11. -
Page 12: Battery Installation--Remote Control
BATTERY INSTALLATION--- REMOTE CONTROL Battery Installation 1.Slide and lift the battery door (Figure 1). 2.Install 2 (two) AAA size batteries into the battery compartment as indicated by the polarity markings (Figure 2). 3.Replace the battery door (Figure 3). Battery Precaution Remote Control Effective Range When there is an obstacle between the unit and the remote control, the remote control may not operate properly. -
Page 13: General Operations
GENERAL OPERATIONS 1. Press the button on the unit or remote control to power on the unit from standby mode. 2. Press the button on remote control or touch the button on unit repeatedly to switch to desired mode as listed: BT TV AUX FM OPTICAL USB NOTE: USB mode will be selected when the USB device is inserted. -
Page 14: Listen To Fm Radio
LISTEN TO FM RADIO BEFORE OPERATION Insert the Antenna into the ANTENNA Jack on rear panel as illustrated as below. SEARCHING STATION 1. Power ON the unit. 2. Press the button on remote control or touch the button on unit repeatedly to switch to FM mode, the FM frequency will appear on the display. -
Page 15: Bluetooth Pairing And Playback
BLUETOOTH PAIRING AND PLAYBACK 1. Power ON the unit. 2. Press the button on remote control or touch the button on unit repeatedly until "BT" appears on display and blinks, now it is in BT pairing mode. 3. Activate the external BT Device and enter BT searching mode. Start pairing as the screen instructions on the external BT Player. -
Page 16: Adding Optional External Subwoofer
ADDING OPTIONAL EXTERNAL SUBWOOFER NOTE: Before connecting, please disconnect power. 1. Connect one end of subwoofer connection cable ( not supplied ) to the "+" Jack on the rear of the unit as the figure above. 2. Connect the other end to the "-" Jack on the rear of the unit as the figure above. 3. -
Page 17: Connect Using Optical
CONNECT USING OPTICAL OPTICAL OUT Optical Cable(Not Supplied) NOTE: Before connecting, please disconnect power. 1. Connect one end of optical connection cable ( not supplied ) to the OPTICAL IN jack on the rear of the unit as pictured above. 2. -
Page 18: Connect To Tv(Analog)
CONNECT TO TV (ANALOG) White TV AUDIO IN White Audio Out Jacks of TV/DVD/VCR/DVR Audio Cable(Not Supplied) NOTE: Before connecting, please disconnect power. 1. Connect as the figure above. 2. Power ON the unit. 3. Press the button on remote control or touch the button on unit repeatedly until "... -
Page 19: Connect Using Hdmi
CONNECT USING HDMI Video Cable not supplied Yellow Yellow TV 2 TV 3 Yellow Yellow HDMI OUT (ARC) VIDEO OUT HDMI Cable (not supplied) MAIN TV To HDMI IN on MAIN TV NOTE: Before connecting, please disconnect power. 1. Connect as the figure above.(TV 2, TV 3 are optional to connect) 2. -
Page 20: Aux In
AUX IN : LISTEN TO EXTERNAL AUDIO DEVICES AUX IN cable not included smart phone To the Phones/Aux Out/Line Out Jack on the external audio device 1. Connect one end of audio connection cable to the AUX IN jack on the front of the unit as illustrated above. -
Page 21: Dvd
DVD: PLAYBACK THROUGH DVD PLAYER 1. Power ON the unit. button on unit repeatedly until " DVD " 2. Press the button on remote control or touch the appears on display, or press the button on the unit or remote control directly to enter DVD mode. 3. - Page 22 5. GOTO: In DVD playback mode, press the GOTO Button once. The TT (Title), CH (Chapter) and establish time selection menu will pop up on the screen. Using the direction & numeric Buttons to select the desired title, chapter or time then press the Button to start to play from the selected Title, Chapter or established time.
-
Page 23: System Setup
SYSTEM SETUP GENERAL SETUP Press the SETUP Button once. The SYSTEM SETUP menu will appear on the connected TV. TV SYSTEM SCREEN SAVER RESOLUTION TV TYPE PASSWORD RATING DEFAULT Press the Direction ► Buttons to enter to the menu then press the Direction ▲ or ▼ Buttons to select and highlight the function you need to set or reset: 1. - Page 24 6. If RATING is selected after unlock, using the Direction and Buttons to change the rating level as follows. Press the Buttons to select the desired level as the list below. Press the Button to confirm the selection. ~ Rate levels: 1.
-
Page 25: Disc Maintenance
DISC MAINTENANCE Caring for Discs Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to contact with the shiny, unprinted side of the disc. ● Do not attach adhesive tape, stickers, etc. to the disc label. ●... -
Page 26: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the following guide before requesting service Check the following guide before requesting service No power power cable not connected ~Check fuse or blown fuse ~Check 12V connection Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected No sound... -
Page 27: Specifications
SPECIFICATIONS Operation Voltage......................DC10V-14V Power Supply Requirement..............DC 12 Volts, Negative Ground Overall Dimension (WMS-DVDZ3-SB)..........741.2(W)x122.0(H)x161.0(D)mm Overall Dimension (WMS-DVDZ3)..........312.0(W)x122.0(H)x161.0(D)mm Max Power Consumption......................90W Video In/Out Level................1 Vp-p/Load impedance:75 ohm Radio Coverage ....................FM 87.5 -108.0 MHz Bluetooth Effective Range.....................Up to 30 feet (Measured in open area. Wall and structures may affect the effective range.) Remote Effective Range....................Up to 15 feet Specifications subject to change without notice. - Page 28 www.riverparkinc.com 2017 RIVERPARK Inc. V. 082217...
