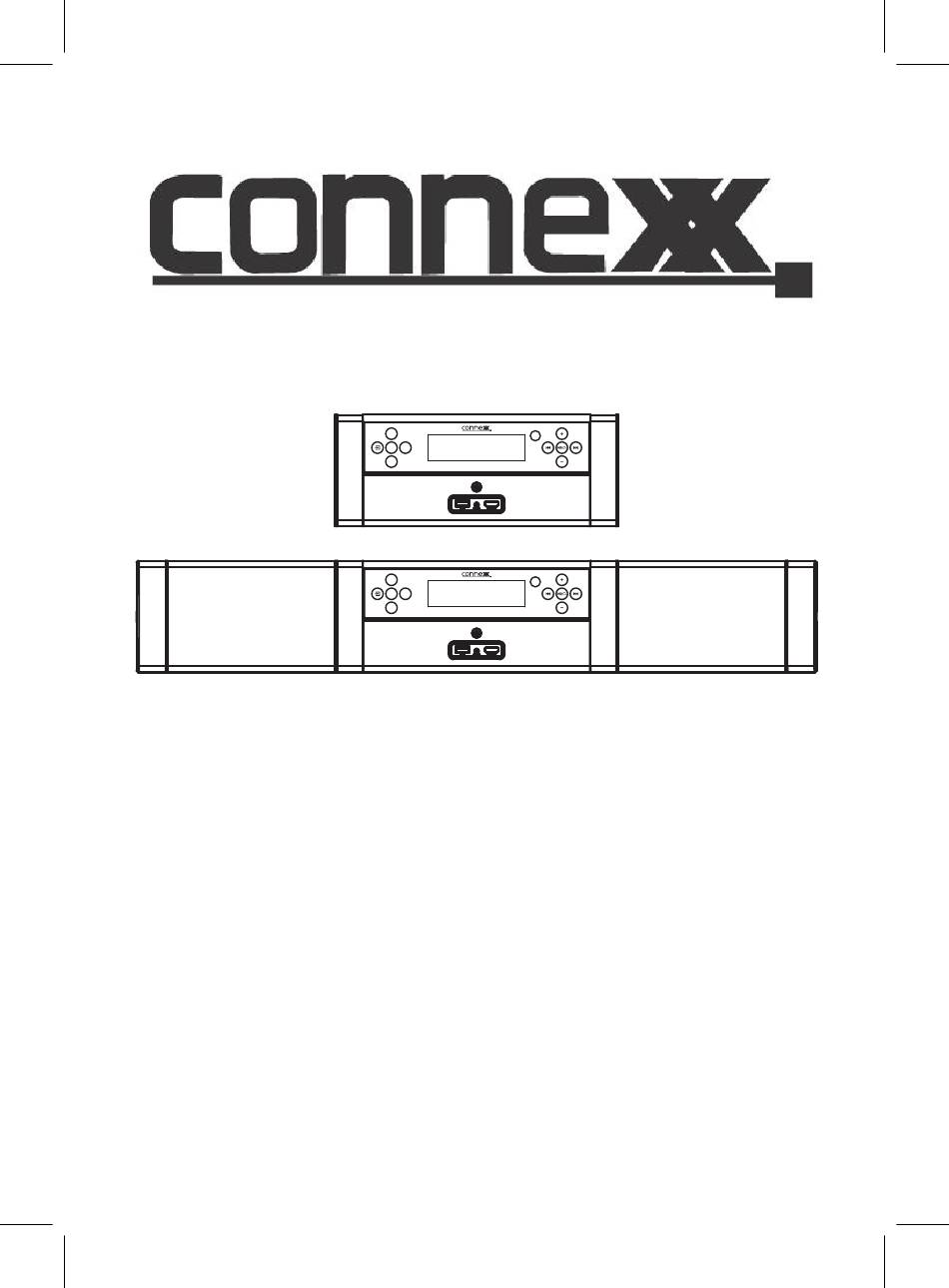

- Page 1 MODEL:WMSMCZ3H / WMSMCZ3H-SB PAIR PAIR - INSTALLATION AND OPERATION MANUAL - PLEASE READ INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION....................3 FEATURES......................3 PARTS INCLUDED WITH MAIN UNIT.............. IMPORTANT SAFETY INSTRUCTIONS............PLACING AND MOUNTING................GENERAL VIEW....................SPEAKER/POWER WIRE SOCKET DIAGRAM..........REMOTE CONTROL..................BATTERY INSTALLATION--REMOTE CONTROL........GENERAL OPERATIONS................LISTEN TO FM RADIO................... BLUETOOTH PAIRING AND PLAYBACK............ADDING OPTIONAL EXTERNAL SUBWOOFER........... CONNECT USING OPTICAL................ -
Page 3: Introduction
INTRODUCTION Thank you for choosing a Connexx product. We hope you will find the instructions in this owner's manual clear and easy to follow. If you take a few minutes to review, you will learn how to use all the features of your new media center for maximum enjoyment. -
Page 4: Important Safety Instructions
The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to CAUTION the presence of uninsulated “dangerous voltage” RISK OF ELECTRIC SHOCK within the product’s enclosure that may be of DO NOT OPEN sufficient magnitude to constitute a risk of electric CAUTION: TO REDUCE THE RISK OF shock to persons. - Page 5 6 ) Clean only with dry cloth 13 ) Refer all servicing to qualified service Unplug this product from the wall outlet before personnel. Servicing is required when the has been damaged in any way, such cleaning. Do not use liquid cleaners or aerosol apparatus as power-supply cord or plug is damaged, liquid cleaners.
-
Page 6: Placing And Mounting
If placing in a tight space without ventilation, heat generated from the unit could produce a potential heat hazard. 2. Mounting Rough opening cut-out (WMSMCZ3H)............10 5/8(Width) x 3 3/4(Height) x 5 5/8(Depth) in (WMSMCZ3H-SB)..........28 3/4(Width) x 3 3/4(Height) x 5 5/8(Depth) in about 140mm (5 5/8 in ) about 140mm (5 5/8 in ) -

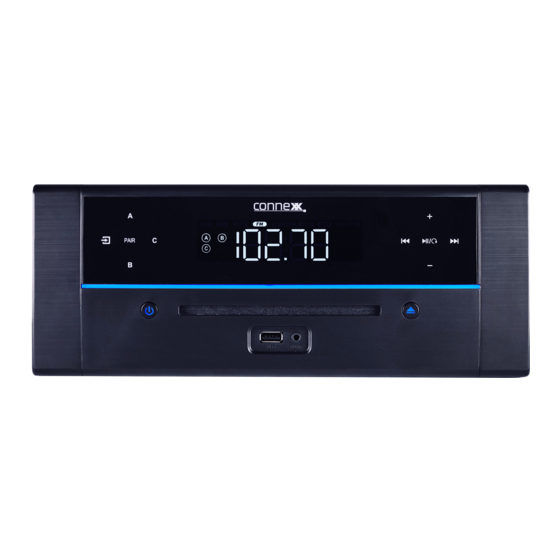

Page 7: General View
GENERAL VIEW Front View PAIR 15 16 9. Zone B touch button 1. Zone A touch button 10. Next touch button 2. Zone C touch button 11. Play/pause, Station recall touch button 3. Display 12. Volume down touch button 4. Remote sensor 13. - Page 8 Rear View HDMI OUT (ARC) OPTICAL IN EXT IR TV AUDIO IN 5. OPTICAL IN jack 1. HDMI OUT (ARC) jack 6. EXTERNAL SUBWOOFER connector 2. ANTENNA jack 3. TV AUDIO IN jacks 7. Power/speaker wire harness socket 4. EXT IR jack...
-
Page 9: Speaker/Power Wire Socket Diagram
SPEAKER/POWER WIRE SOCKET DIAGRAM GRAY - B RIGHT + SPEAKER (6X4-ohms) WIRING COLOR CODE GUIDE 12V DC CAUTION! Power Connecting the speakers Extension incorrectly will cause distortion and damage the power amplifier. RED - POWER IN 12V + BLACK - POWER GND 10A FUSE VIOLET - C RIGHT + BLACK - POWER GND... -
Page 10: Remote Control
REMOTE CONTROL 1. Power on/off button 2. Zone A button 3. Zone B button 4. Source button 5. TUNE + button TUNE+ 6. Previous button 7. TUNE - button 8. PAIR button TUNE- 9. EQ button PAIR 10. ARC (audio return channel) button 11. -
Page 11: Battery Installation--Remote Control
BATTERY INSTALLATION--- REMOTE CONTROL Battery Installation 1.Slide and lift the battery door (Figure 1). 2.Install 2 (two) AAA size batteries into the battery compartment as indicated by the polarity markings (Figure 2). 3.Replace the battery door (Figure 3). Battery Precaution Follow these precautions when using a battery in this device: 1. -
Page 12: General Operations
GENERAL OPERATIONS 1. Press the button on the unit or remote control to power on the unit from standby mode. 2. Press the button on remote control or touch the button on unit repeatedly to switch to desired mode as listed: BT TV AUX FM OPTICAL USB HDMI ARC... -
Page 13: Listen To Fm Radio
LISTEN TO FM RADIO BEFORE OPERATION Insert the Antenna into the ANTENNA Jack on rear panel as illustrated as below. SEARCHING STATION 1. Power ON the unit. 2. Press the button on remote control or touch the button on unit repeatedly to switch to FM mode, the FM frequency will appear on the display. -
Page 14: Bluetooth Pairing And Playback
BLUETOOTH PAIRING AND PLAYBACK 1. Power ON the unit. 2. Press the button on remote control or touch the button on unit repeatedly until "BT" appears on display and blinks, now it is in BT pairing mode. 3. Activate the external BT Device and enter BT searching mode. Start pairing as the screen instructions on the external BT Player. -
Page 15: Adding Optional External Subwoofer
ADDING OPTIONAL EXTERNAL SUBWOOFER NOTE: Before connecting, please disconnect power. 1. Connect one end of subwoofer connection cable ( not supplied ) to the "+" Jack on the rear of the unit as the figure above. 2. Connect the other end to the "-" Jack on the rear of the unit as the figure above. 3. -
Page 16: Connect Using Optical
CONNECT USING OPTICAL External DVD player OPTICAL OUT Optical Cable(Not Supplied) NOTE: Before connecting, please disconnect power. 1. Connect one end of optical connection cable ( not supplied ) to the OPTICAL IN jack on the rear of the unit as pictured above. 2. -
Page 17: Connect To Tv(Analog)
CONNECT TO TV (ANALOG) White TV AUDIO IN White Audio Out Jacks of TV/DVD/VCR/DVR Audio Cable(Not Supplied) NOTE: Before connecting, please disconnect power. 1. Connect as the figure above. 2. Power ON the unit. 3. Press the button on remote control or touch the button on unit repeatedly until "... -
Page 18: Connect Using Hdmi In
CONNECT USING HDMI IN HDMI OUT (ARC) To HDMI OUT (ARC) To HDMI IN on front on rear of the unit of the unit STEP ONE STEP TWO To HDMI IN(ARC) on TV To HDMI OUT on the DVD player OPTICAL OUT TV not supplied External DVD player(not supplied) -
Page 19: Connect Using Hdmi Out
CONNECT USING HDMI OUT HDMI OUT (ARC) HDMI Cable (not supplied) To HDMI IN on TV NOTE: Before connecting, please disconnect power. 1. Connect as the figure above. 2. Power ON the unit. 3. Press the button on remote control or touch the button on unit repeatedly until "... -
Page 20: Aux In
AUX IN : LISTEN TO EXTERNAL AUDIO DEVICES AUX IN cable not included smart phone To the Phones/Aux Out/Line Out Jack on the external audio device 1. Connect one end of audio connection cable to the AUX IN jack on the front of the unit as illustrated above. -
Page 21: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the following guide before requesting service Check the following guide before requesting service No power power cable not connected ~Check fuse or blown fuse ~Check 12V connection Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected No sound... -
Page 22: Specifications
SPECIFICATIONS Operation Voltage......................DC10V-14V Power Supply Requirement..............DC 12 Volts, Negative Ground Overall Dimension (WMSMCZ3H-SB)..........741.2(W)x122.0(H)x161.0(D)mm Overall Dimension (WMSMCZ3H)..........312.0(W)x122.0(H)x161.0(D)mm Max Power Consumption......................80W Video In Level.................1 Vp-p/Load impedance:75 ohm Radio Coverage ....................FM 87.5 -108.0 MHz Bluetooth Effective Range.....................Up to 30 feet (Measured in open area. Wall and structures may affect the effective range.) Remote Effective Range....................Up to 16 feet... - Page 23 www.riverparkinc.com 2019 RIVERPARK Inc. V. 051819 伍于计...
