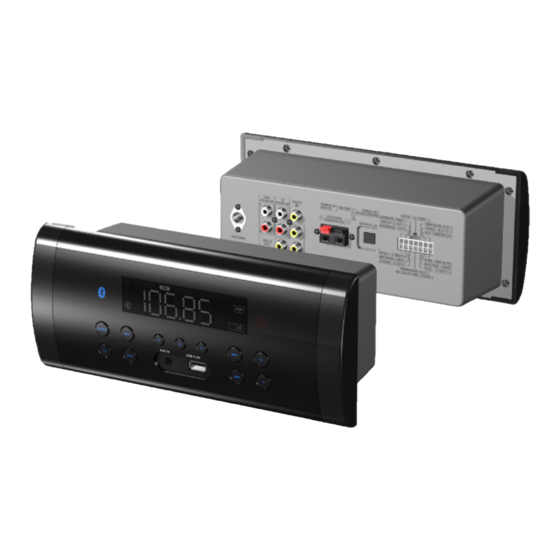

- Page 1 Media Center MODEL:WMSMCZ3 --INSTALLATION AND OPERATION MANUAL-- PLEASE READ INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE...
- Page 2 The lighting flash with arrowhead symbol within an CAUTION equilateral triangle is intended to alert the user to RISK OF ELECTRIC SHOCK the presence of uninsulated “dangerous voltage” DO NOT OPEN within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric CAUTION: TO REDUCE THE RISK OF shock to persons.
- Page 3 13 ) Refer all servicing to qualified service 6 ) Clean only with dry cloth Unplug this product from the wall outlet before personnel. Servicing is required when the cleaning. Do not use liquid cleaners or aerosol apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid cleaners.
-
Page 4: Packing List
FEATURES Digital FM tuner w/10 presets Bluetooth wireless technology 4 zone audio distribution 4 zone video distribution 3.5 mm aux input jack on front panel USB input on front panel w/device charging capabilities Digital Optical input on rear panel 2 analog stereo inputs on rear panel LED backlit controls Wireless remote control included PACKING LIST... -
Page 5: Placing And Mounting
PLACING AND MOUNTING 1. Placing When plaing the media center in any type of enclosed space, be sure to allowe space around it for ventilation. If plaing in a tight space without ventilation, heat generated from the unit could produce a potential heat hazard. -
Page 6: General View
GENERAL VIEW Front View 6. USB Jack 1. LED Display 7. AUX IN Jack 2. Remote Sensor 3. Previous/Tune Down Play/Pause/ Preset/ Next /Tune Up Memory/Preset Play Button 4. Volume Down 9. PAIR Button Volume Up 10. SOURCE Button 5. ZONE A/B/C Button 11. -
Page 7: Speaker/Power Wire Socket Diagram
SPEAKER/POWER WIRE SOCKET DIAGRAM SPEAKER (6X4-ohms) WIRING COLOR CODE GUIDE 12V DC CAUTION! Power Connecting the speakers Extension incorrectly will cause distortion and damage the power amplifier. RED - POWER IN 12V + BLACK - POWER GND 10A FUSE GREEN/BLACK - C LEFT - RED - POWER IN 12V + 10A FUSE VIOLET - C RIGHT +... -
Page 8: Remote Control
REMOTE CONTROL 1. POWER button 2. Bluetooth Mode Switch button POWER OPTICAL ZONE A 3. AUX IN Mode Switch button ZONE B 4. TV Mode Switch button TUNE - / /TUNE+ button AUX IN ZONE C 6. VOL ( Volume )+/- buttons ( Play/Pause )/ ( Memory/ Preset /Preset Play )button... -
Page 9: Battery Installation--- Remote Control
BATTERY INSTALLATION--- REMOTE CONTROL Battery Installation 1.Slide and lift the battery door (Figure 1). 2.Install 2 (two) AAA size batteries into the battery compartment as indicated by the polarity markings (Figure 2). 3.Replace the battery door (Figure 3). Battery Precaution Remote Control Effective Range When there is an obstacle between the unit and the remote control, the remote control may not operate properly. -
Page 10: General Operations
GENERAL OPERATIONS 1. Press the Power button on the unit or remote control to power on the unit from standby mode. 2. Press the SOURCE button repeatedly to switch to desired mode as the following. OPTICAL OPTICAL OPTICAL 3. During Playback: ~ Press the VOL (Volume)-/+ buttons to adjust volume level as desired. -
Page 11: Listen To Fm Radio
3. Turn on the external BT Device and enter BT searching mode. Start instructions on the external BT Player. ( For details pairing procedures, please refer to the user's manual of your BT Device. ) Notes: "WMSMCZ3" "WMSMCZ3" "WMSMCZ3" When the external BT Device searched the unit, will appear on the display of the external BT Device. -
Page 12: Adding Optional External Subwoofer
ADDING OPTIONAL EXTERNAL SUBWOOFER NOTE: Before connecting, disconnect power. 1. Connect one end of subwoofer connection cable ( not supplied ) to the "+" Jack on the rear of the unit as the figure above. 2. Connect the other end to the "-" Jack on the rear of the unit as the figure above. 3. -
Page 13: Connect Using Optical
CONNECT USING OPTICAL Optical Cable(Not Supplied) DVD or TV NOTE: Before connecting, disconnect power. 1. Connect one end of optical connection cable ( not supplied ) to the optical jack on the rear of the unit as pictured above. 2. Connect the other end to the DVD or TV back panel. 3. - Page 14 CONNECT TO TV/DVD MAIN TV White Yellow Yellow Yellow Yellow TV 4 TV 3 TV 2 DVD or TV NOTE: Before connecting, disconnect power. NOTE: Before connecting, disconnect power. 1. Connect as the figure above.(TV 2, 3, 4 are optional to connect) 2.
- Page 15 AUX IN : LISTEN TO EXTERNAL AUDIO DEVICES To the Phones/Aux Out/Line Out Jack on the external audio device 1. Connect one end of audio connection cable (not supplied) to the AUX IN jack on the front of the unit as pictured above. 2.
-
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the following guide before requesting service Check the following guide before requesting service No power power cable not connected ~Check fuse or blown fuse ~Check 12V connection Raise volume level by pressing the VOL Volume in minimum position (Volume) + button Play the music/movie in the connected No sound... -
Page 17: Specifications
SPECIFICATIONS Operation Voltage......................DC10V-14V Power Supply Requirement..............DC 12 Volts, Negative Ground Overall Dimension..................813(W)x107.2(H)x83(D)mm Max Power Consumption......................90W Video In/Out Level................1 Vp-p/Load impedance:75 ohm Radio Coverage ....................FM 87.5 -108.0 MH Bluetooth Effective Range.....................Up to 30 feet (Measured in open area. Wall and structures may affect the effective range.) Remote Effective Range....................Up to 15 feet NOTE: NOTE:... - Page 18 www.riverparkinc.com 2015 RIVERPARK Inc. V. 071015...
