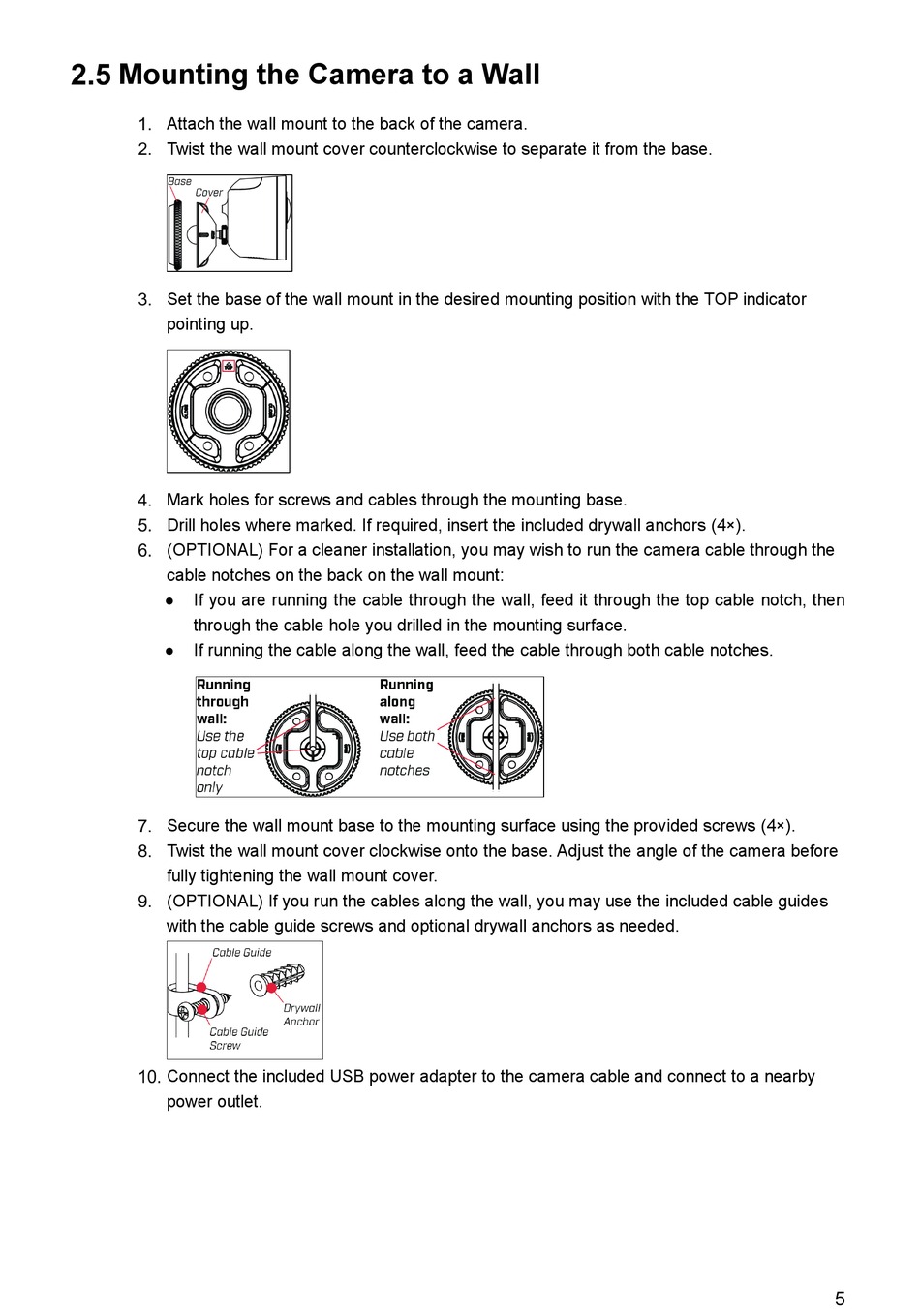

Mounting the Camera to a Wall

Attach the wall mount to the back of the camera.
Twist the wall mount cover counterclockwise to separate it from the base.
Set the base of the wall mount in the desired mounting position with the TOP indicator
pointing up.
Mark holes for screws and cables through the mounting base.
Drill holes where marked. If required, insert the included drywall anchors (4×).
(OPTIONAL) For a cleaner installation, you may wish to run the camera cable through the
cable notches on the back on the wall mount:
If you are running the cable through the wall, feed it through the top cable notch, then

through the cable hole you drilled in the mounting surface.
If running the cable along the wall, feed the cable through both cable notches.

Secure the wall mount base to the mounting surface using the provided screws (4×).
Twist the wall mount cover clockwise onto the base. Adjust the angle of the camera before
fully tightening the wall mount cover.
(OPTIONAL) If you run the cables along the wall, you may use the included cable guides
with the cable guide screws and optional drywall anchors as needed.
Connect the included USB power adapter to the camera cable and connect to a nearby
power outlet.
