PMI Aerocool BW5502 Owner's Manual

Window cooler model
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

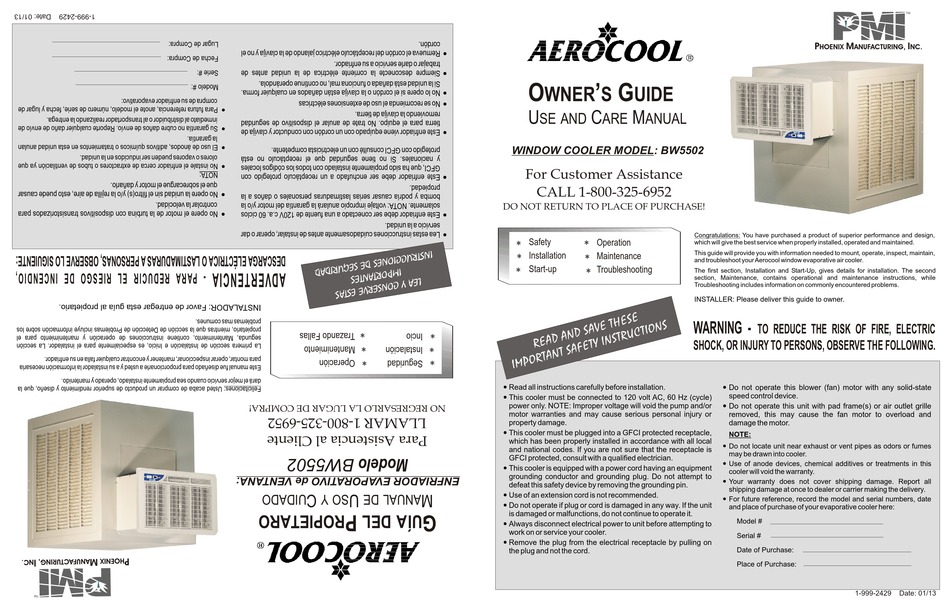

O
'
G
WNER
S
UIDE
U
C
M
SE AND
ARE
ANUAL
WINDOW COOLER MODEL: BW5502
For Customer Assistance
CALL 1-800-325-6952
DO NOT RETURN TO PLACE OF PURCHASE!
Safety
Operation
Installation
Maintenance
Start-up
Troubleshooting
Read all instructions carefully before installation.
This cooler must be connected to 120 volt AC, 60 Hz (cycle)
power only. NOTE: Improper voltage will void the pump and/or
motor warranties and may cause serious personal injury or
property damage.
This cooler must be plugged into a GFCI protected receptacle,
which has been properly installed in accordance with all local
and national codes. If you are not sure that the receptacle is
GFCI protected, consult with a qualified electrician.
This cooler is equipped with a power cord having an equipment
grounding conductor and grounding plug. Do not attempt to
defeat this safety device by removing the grounding pin.
Use of an extension cord is not recommended.
Do not operate if plug or cord is damaged in any way. If the unit
is damaged or malfunctions, do not continue to operate it.
Always disconnect electrical power to unit before attempting to
work on or service your cooler.
Remove the plug from the electrical receptacle by pulling on
the plug and not the cord.
P
M
HOENIX
ANUFACTURING,
Congratulations: You have purchased a product of superior performance and design,
which will give the best service when properly installed, operated and maintained.
This guide will provide you with information needed to mount, operate, inspect, maintain,
and troubleshoot your Aerocool window evaporative air cooler.
The first section, Installation and Start-Up, gives details for installation. The second
section, Maintenance, contains operational and maintenance instructions, while
Troubleshooting includes information on commonly encountered problems.
INSTALLER: Please deliver this guide to owner.
WARNING -
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING.
Do not operate this blower (fan) motor with any solid-state
speed control device.
Do not operate this unit with pad frame(s) or air outlet grille
removed, this may cause the fan motor to overload and
damage the motor.
NOTE:
Do not locate unit near exhaust or vent pipes as odors or fumes
may be drawn into cooler.
Use of anode devices, chemical additives or treatments in this
cooler will void the warranty.
Your warranty does not cover shipping damage. Report all
shipping damage at once to dealer or carrier making the delivery.
For future reference, record the model and serial numbers, date
and place of purchase of your evaporative cooler here:
Model #
Serial #
Date of Purchase:
Place of Purchase:
1-999-2429
I
NC.
Date: 01/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aerocool BW5502 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PMI Aerocool BW5502

Summary of Contents for PMI Aerocool BW5502

  • Page 1 HOENIX ANUFACTURING, ’ WNER UIDE SE AND ANUAL WINDOW COOLER MODEL: BW5502 For Customer Assistance CALL 1-800-325-6952 DO NOT RETURN TO PLACE OF PURCHASE! Congratulations: You have purchased a product of superior performance and design, Safety Operation which will give the best service when properly installed, operated and maintained. This guide will provide you with information needed to mount, operate, inspect, maintain, Installation Maintenance...

  • Page 2: Installation

    INTRODUCTION Platform or Stand Mounting Your Aerocool evaporative air cooler was thoroughly tested and Installation normally involves locating the unit in a suitable window inspected before leaving the factory. This manual is your guide to and the construction of a platform or stand to support the weight of the proper installation procedures along with information about cooler.

  • Page 3: Operation

    Install Overflow Standpipe / Drain Line Mounting Using Chain Kit An alternate installation method involves locating the unit in a suitable Install overflow drain bushing in bottom of cooler as follows: window and using the included chain mounting kit to support the Slide rubber washer over drain bushing.

  • Page 4: General Inspection

    GENERAL INSPECTION MAINTENANCE SCHEDULE Regular maintenance and periodic inspection is the key to long and Initial Start-up or Annual Inspection successful service from your Aerocool cooler. The cooler should receive major servicing at least once a year, more often if conditions CAUTION: Disconnect all electrical power to the cooler require (dusty environment, constant use, poor water quality, etc.) For...
  • Page 5 Cleaning Water Pump & Hose Blower Shaft Bearings CAUTION: Blower shaft bearings need periodic lubrication. They should be Disconnect all electrical power to the cooler checked 20-30 days after initial start-up of operation. The oil cups on before attempting to install, open, or service your cooler. the bearings should be filled with a good grade of SAE 20W or 30W CAUTION non-detergent oil when necessary.

  • Page 6: Troubleshooting Guide

    TROUBLESHOOTING GUIDE: Should an obvious problem occur with your cooler consult the following table. If you cannot correct the problem, or if it persists, contact qualified service personnel. PROBLEM / SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Float valve out of adjustment Water draining from unit Adjust float to 2 1/2“...
