- Page 1 AR-PRO AC LINE VOLTAGE REGULATOR AR SERIES...
-
Page 2: General Information

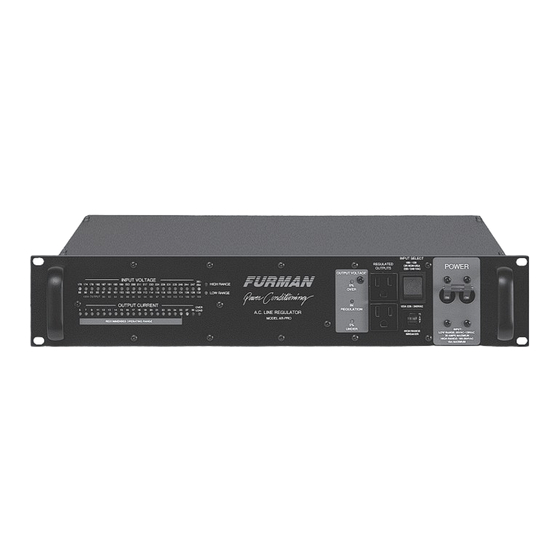

AR-PRO – AC LINE VOLTAGE REGULATOR Congratulations on your purchase of a Furman AR-PRO AC Line Voltage Regulator. The AR- PRO is the perfect accessory to any audio, video, or computer rack-mount system requir- ing clean, fi ltered, and regulated AC power for optimum operation. - Page 3 The AR-PRO is intended to protect computer, audio, video and other electronic equipment from problems caused by AC line voltage irregularities - sags, brown- outs or over voltages that can cause sensitive digital equipment to malfunction, or, in extreme cases, to sustain damage.
-
Page 4: Installation
To precisely monitor the AR-PRO’s output voltage, you may want to use one or more Furman PL-Series Power Conditioner and Light Modules. Furman’s PL-Series is the perfect complement to the AR-PRO for rack power distribution. -
Page 5: Rack Mounting
Refer to the following diagrams for wiring the twist-lock connector: FRONT VIEW (EQUIPMENT (HOT LEAD) GROUND) (NEUTRAL) (USA 220-240 ONLY) REAR VIEW All wiring confi gurations except North America 220-240V: Wire hot lead to X (black in North America; black, brown, or black with white stripes in Europe). -
Page 6: Operation
AR-PRO – AC LINE VOLTAGE REGULATOR O P E R A T I O N FRONT PANEL FEATURES INPUT VOLTMETER: Measures input voltage in ei- ther of two ranges. The appropriate range is selected automatically and is indicated by an LED at the end of the scale. -
Page 7: Rear Panel Features
HIGH RANGE BREAKER: The AR-PRO’s basic cur- rent rating is 30 amps output at 120 VAC. The current at the input (where the circuit breakers are located) will be the same as the output only if the input voltage is also 120V (low range). - Page 8 Any AR-PRO known to have taken a direct lightning hit should be checked by a qualifi ed technician or the Furman factory to determine whether the MOVs need - 8 - replacement. If they are damaged, the AR-PRO may appear to be working normally, but its vital spike-sup- pression capability will be eliminated.
- Page 9 power it through a different circuit. Q. Why is there a 3 second delay before power goes on? A. This built-in delay allows the internal sensing cir- cuitry to stabilize and provides a means of turning on a group of AR-PROs in a delayed sequence. Q.
-
Page 10: Limited Warranty
Purchaser of the product is allowed fi fteen days from the date of purchase to complete warranty registration by mail or on-line at the Furman website. If the Product does not conform to this Limited Warranty during the warranty period (as herein above specifi ed), Purchaser... - Page 11 NOTE: All equipment being returned for repair must have a Return Authorization (R/A) Number which can be obtained by calling the Furman Service Department, (707) 763 – 1010 ext. 120 or 121, between 8 a.m. and 5 p.m., U.S. Pacifi c Time. Please display your R/A Number prominently on the front of all packages.
- Page 12 All steel chassis, powder coated; supplied with front handles and rear rack ears; FR-4 glass epoxy circuit boards Adjustable rack ears, RPM-2, are sold separately. 0005-030903-C 22.5A Furman Sound, Inc. 1997 South McDowell Blvd. Petaluma, California 94954-6919 USA Phone: 707-763-1010 Fax: 707-763-1310 Web: www.furmansound.com...
