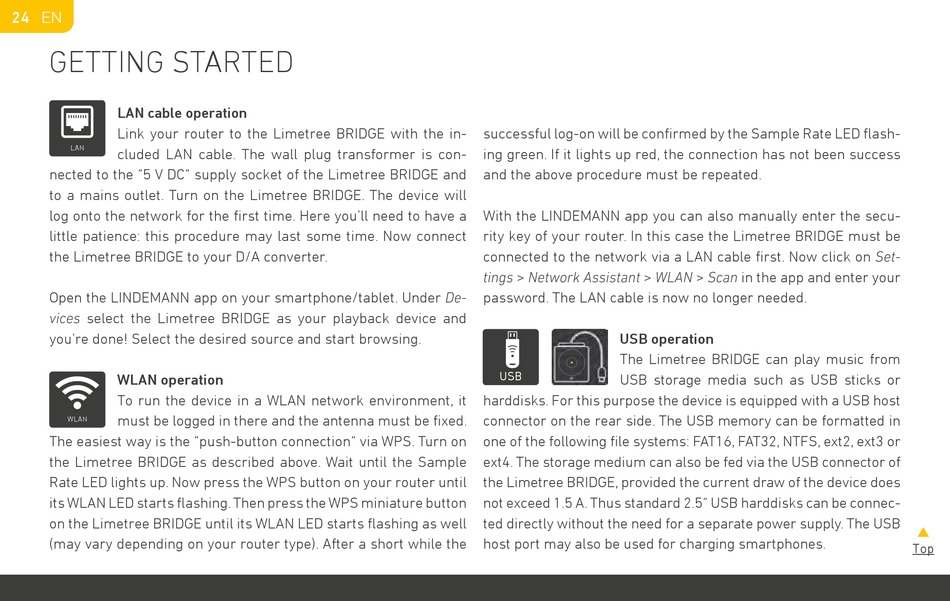

Lindemann LIMETREE BRIDGE II Manual page 24

24 EN
GETTING STARTED
LAN cable operation
Link your router to the Limetree BRIDGE with the in-
LAN
cluded LAN cable. The wall plug transformer is con-
nected to the "5 V DC" supply socket of the Limetree BRIDGE and
to a mains outlet. Turn on the Limetree BRIDGE. The device will
log onto the network for the first time. Here you'll need to have a
little patience: this procedure may last some time. Now connect
the Limetree BRIDGE to your D/A converter.
Open the LINDEMANN app on your smartphone/tablet. Under De-
vices select the Limetree BRIDGE as your playback device and
you're done! Select the desired source and start browsing.
WLAN operation
To run the device in a WLAN network environment, it
must be logged in there and the antenna must be fixed.
WLAN
The easiest way is the "push-button connection" via WPS. Turn on
the Limetree BRIDGE as described above. Wait until the Sample
Rate LED lights up. Now press the WPS button on your router until
its WLAN LED starts flashing. Then press the WPS miniature button
on the Limetree BRIDGE until its WLAN LED starts flashing as well
(may vary depending on your router type). After a short while the
successful log-on will be confirmed by the Sample Rate LED flash-
ing green. If it lights up red, the connection has not been success
and the above procedure must be repeated.
With the LINDEMANN app you can also manually enter the secu-
rity key of your router. In this case the Limetree BRIDGE must be
connected to the network via a LAN cable first. Now click on Set-
tings > Network Assistant > WLAN > Scan in the app and enter your
password. The LAN cable is now no longer needed.
USB operation
The Limetree BRIDGE can play music from
USB
USB storage media such as USB sticks or
harddisks. For this purpose the device is equipped with a USB host
connector on the rear side. The USB memory can be formatted in
one of the following file systems: FAT16, FAT32, NTFS, ext2, ext3 or
ext4. The storage medium can also be fed via the USB connector of
the Limetree BRIDGE, provided the current draw of the device does
not exceed 1.5 A. Thus standard 2.5" USB harddisks can be connec-
ted directly without the need for a separate power supply. The USB
host port may also be used for charging smartphones.

