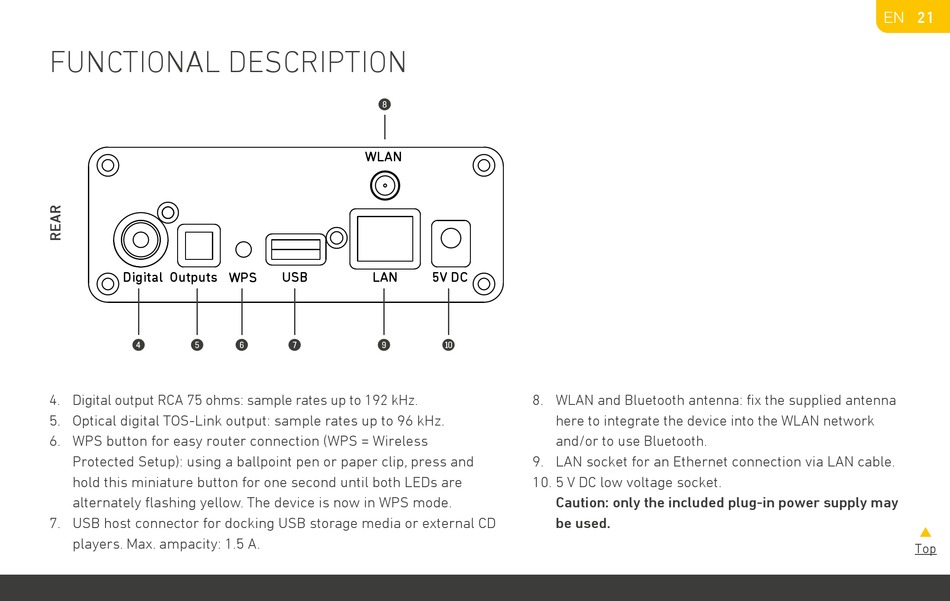

FUNCTIONAL DESCRIPTION
Digital Outputs WPS
4 5
4. Digital output RCA 75 ohms: sample rates up to 192 kHz.
5. Optical digital TOS-Link output: sample rates up to 96 kHz.
6. WPS button for easy router connection (WPS = Wireless
Protected Setup): using a ballpoint pen or paper clip, press and
hold this miniature button for one second until both LEDs are
alternately flashing yellow. The device is now in WPS mode.
Limetree
7. USB host connector for docking USB storage media or external CD
players. Max. ampacity: 1.5 A.
on
8
WLAN
USB LAN
6 7 9
Bridge
SR Mode
5V DC
q
8. WLAN and Bluetooth antenna: fix the supplied antenna
here to integrate the device into the WLAN network
and/or to use Bluetooth.
9. LAN socket for an Ethernet connection via LAN cable.
10. 5 V DC low voltage socket.
Caution: only the included plug-in power supply may
be used.
