Summary of Contents for Acetech ACETarget S

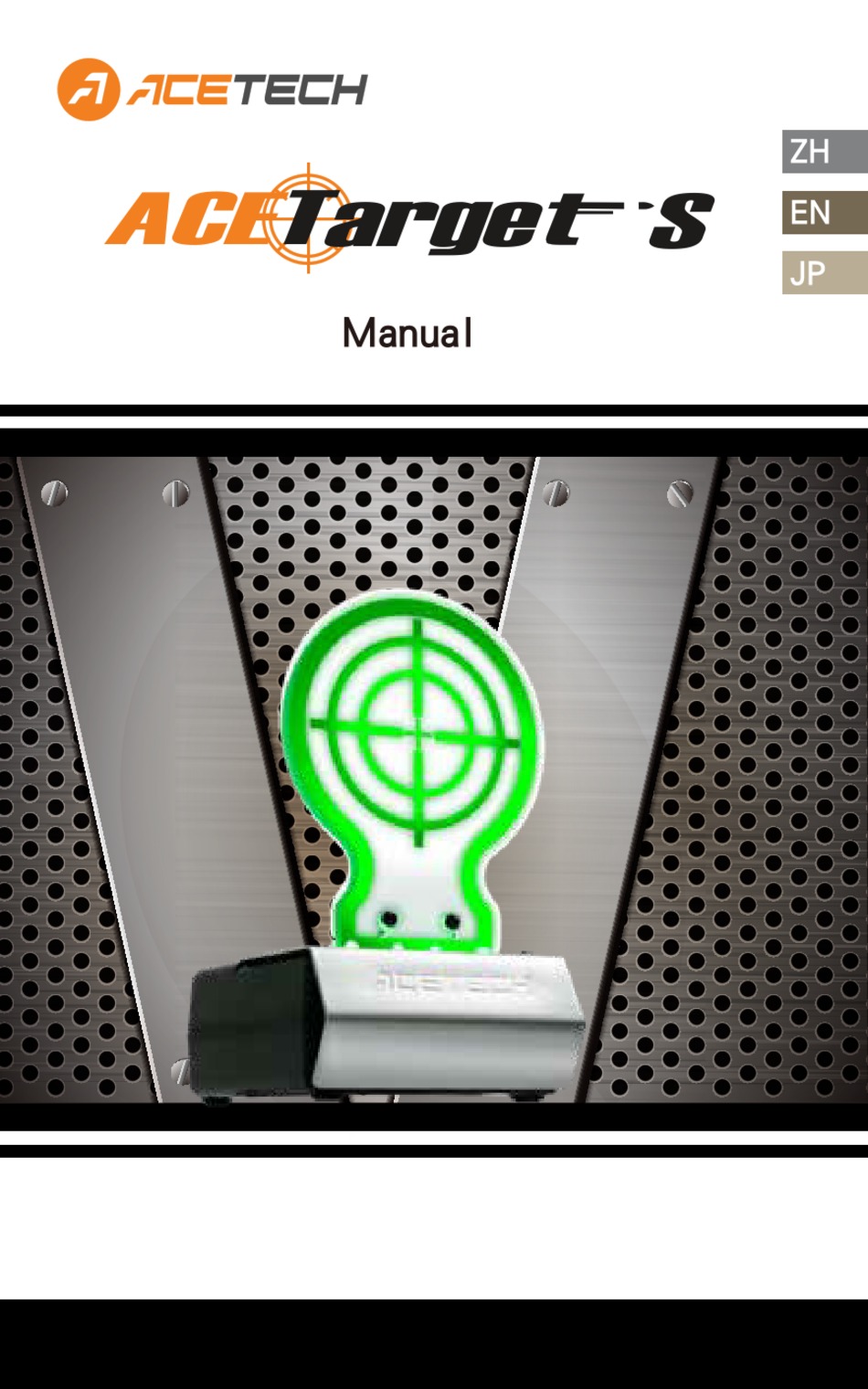

  • Page 1 arge Manual...

  • Page 2: Table Of Contents

    Table of contents AceTarget-S(Sta�c) Contents ------------------------------------------ 1 Precau�ons ---------------------------------------------------------------- Quick Start Guide -------------------------------------------------------- Product Introduc�on ---------------------------------------------------- 3 App. Opera�on Guide------------------------------------------------------ 5 1. Download App. 2. Connect Host 3. Run the App. 4. System Func�on Guidance 5. System se�ng Descrip�on 6. Game se�ng 7.

  • Page 3: Acetarget-S(Sta�C) Contents

    AceTarget-S(Sta�c) Contents Contents Image Type C 1/4” AceTarget-S Non-slip Contents Manual Charging Screw (With 18650 Li-Ion Ba�ery) cable Quan�ty Precau�ons Please remove the ba�ery insula�on tab before the first �me use ※ and charge it for at least 2 hours. (ba�ery will be 60% full a�er 1 hour charge) ※...

  • Page 4: Quick Start Guide

    Quick Start Guide 1. Remove the ba�ery insula�on tab and charge AceTarget for at least two hours before use. 2. Turn off AceTarget and set one of AceTarget-S as host and keep the other AceTarget-S as slaves as defult. Off Off...

  • Page 5: Product Introduc�On

    Product Introduc�on AceTarget-S device introduce: AceTarget-S raise up and fold down the target face. When the target is raised up, it emits a sound to remind the shooter. At the same �me, LED irradiates red or green light to the target face. A.
  • Page 6 Digits Channel Digits Channel Channel 1 Channel 5 1 2 3 4 1 2 3 4 Channel 2 Channel 6 1 2 3 4 1 2 3 4 Channel 3 Channel 7 1 2 3 4 1 2 3 4 Channel 4 Channel 8 1 2 3 4...

  • Page 7: App Opera�On Guide

    App Opera�on Guide 1. Download App Scanning the QR code on the package to download AceSo� Appy or searching on App Store (Apple) or Play Store (Android). Android 5.0 / iOS 10.0 or later is recommended Android 2. Connect Host Turn WiFi of the mobile device on and connect to AceTarget(1-8).

  • Page 8: Run The App

    3. Run the App Make sure the mobile device has connected to Wi-Fi of AceTarget. Run the App, the app displays the following picture. Tap the device figure to enter the game se�ng.

  • Page 9: System Func�On Guidance

    4. System Function Guidance: Tap...
  • Page 10 "Target Number 13" means there are 13 units of AceTarget-S in the system. "Moving Target Number 2" means there are 2 units of AceTarget-D in the system. ◎ Tap Target Number to check the remaining ba�ery percentage of each AceTarget-S. When AceTarget-S connect to charging cable and no ba�ery percentage be displayed ◎...
  • Page 11 ◎ Tap Target Moving Target Number to see the mileage of AceTarget-D. Then, Tap the icon the selected AceTarget-D to turn on green light, and there will be a message on the App asking if you need to clear the mileage of AceTarget-D. The mileage record of the selected AceTarget-D will be erased a�er the requirment of the message is confirmed.

  • Page 12: System Se�Ng Descrip�On

    5. System Setup Descrip�on: Tap to enter the System Setup page.
  • Page 13 A. Target Setup 1. Auto Adjustment : Rise all AceTarget-S to check the loca�on, and AceTarget-D move around to remeasure the length of rail. The target flashes green to indicate that it is working properly, and it flashes red abnormally. 2.
  • Page 14 C. Mode Setup Enter the password to change the mode. ◎ (Default Password: acetarget) ◎ To switch to Arcade Mode, a coin slot machine is requested. Change Password: Tap Change password, enter a new password in the blank of pop-up window. A�er entering the correct password, the user enter by new ◎...

  • Page 15: Game Se�Ng

    6. Game se�ng: Total 4 Game Modes and a Demo. 1) Shot Timer : The Shot Timer game starts a�er the countdown to 3 2 1 and all target face rise up. When �me is over or all the AceTarget-S are hit down, means the game is over.
  • Page 16 2) Whack a Mole : Whack a mole game. When the game starts, the AceTarget-S rise up randomly. According to the difficulty level of the game, there are up to 3 AceTarget-S rising at the same �me. AceTarget-S have different dura�on rising-up per the difficulty level.
  • Page 17 4) Compete : CCompete game. Only one AceTarget rise up at a �me. The higher the LEVEL is, the shorter the rising �me will be. One AceTarget-S rise up a�er the former target is automa�cally down or manual hit down by the shooter. The game ends a�er all the AceTarget-S are down in sequence.

  • Page 18: Record Gameplay

    7. Game Record . Record points of each game separately. Take Quick Shoo�ng for example as shown below: A�er the the game, enter the User Name and tap Yes to keep the record. Tap the Record on the game page, and all the shoo�ng records can be seen.

  • Page 19: Warranty

    Warranty 1. 12 months warranty from order date. 2. Warranty not covering. A. Unauthorized dismantling or repair B. Damage from incorrect usage, external force, or liquid intruding inside the product C. Lightning strikes and other damage caused by natural disasters. D.
  • Page 20 www.acetk.com acetech007 UM0300-01 R0136 Made In Taiwan...
