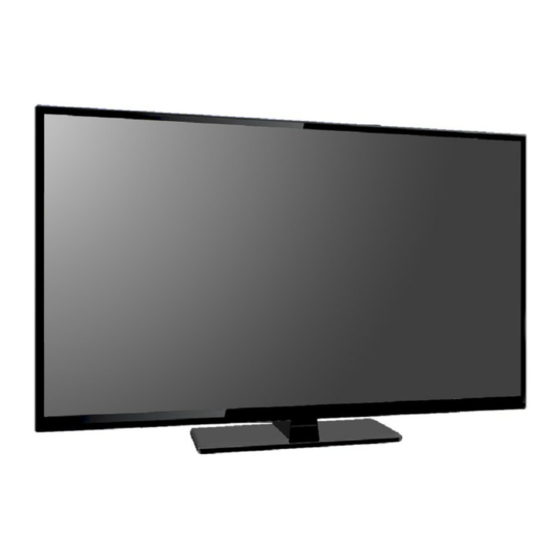

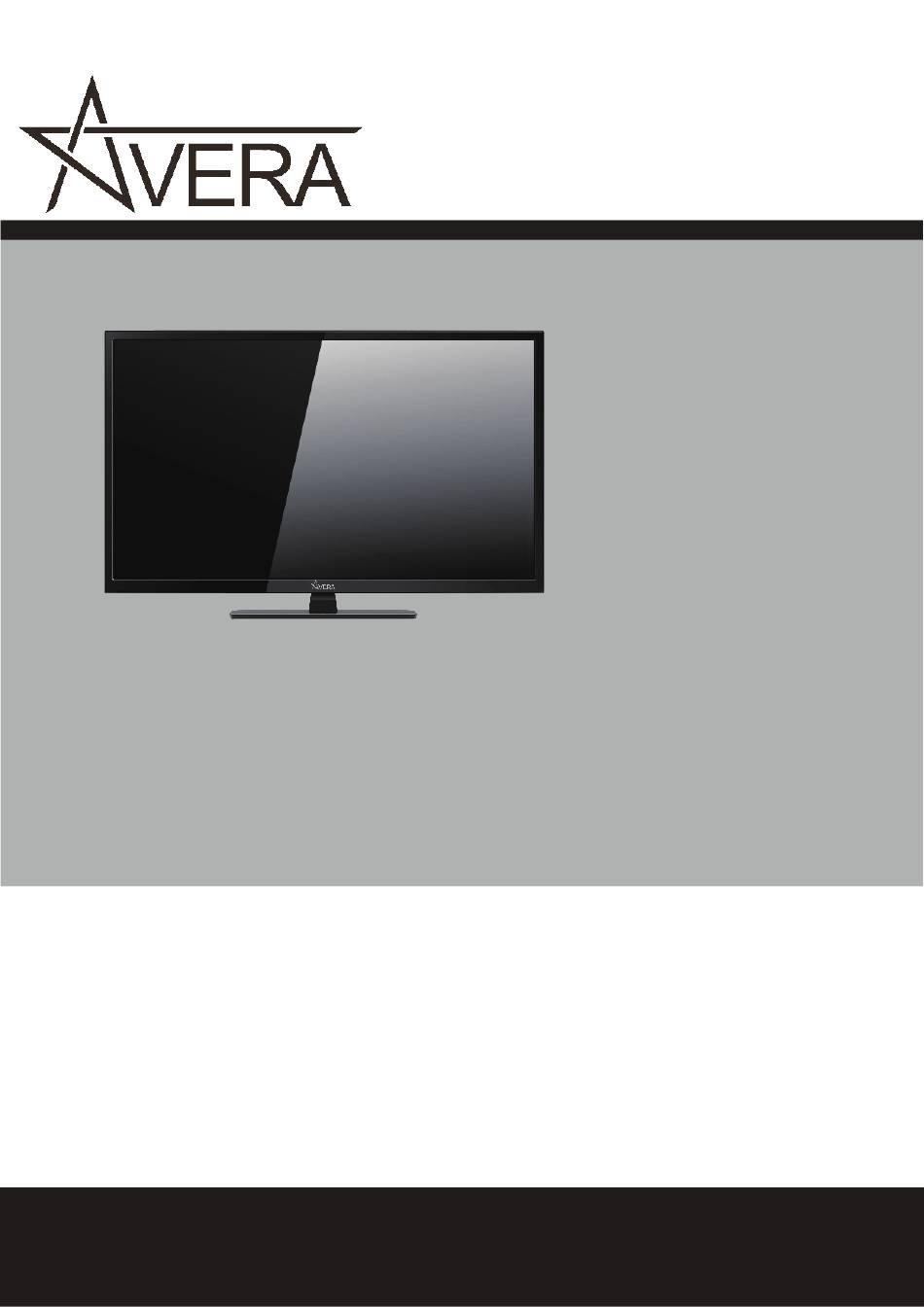

- Page 1 40STC20 USER’S MANUAL 40” LED TELEVISION...
-
Page 2: Important Safety Instructions
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying the appliance. 40STC20-1... - Page 3 To protect the TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV from lightning and power-line surges. 40STC20-2...
- Page 4 If the TV has been dropped or the cabinet has been damaged. f. If the TV exhibits a distinct change in performance. 40STC20-3...
- Page 5 - Increase the separation between the equipment and television. - Connect the equipment into an outlet on a circuit different from that to which the television is connected. - Consult your dealer or an experienced radio / TV technician for assistance. ’s authority to operate the equipment. 40STC20-4...
-
Page 6: Table Of Contents
Advanced Settings ..............................26 ................................27 CEC Settings Parental Control ................................28 Channel Settings Favorite ..................................30 Show / Hide ..................................30 Channel Label ................................30 TV Channel Setup & Channel Auto Scan ........................31 Aspect Modes ................................32 USB Modes ..................................33 MHL Setting ..................................34 ................................35 Troubleshooting ................................36 40STC20-5... -
Page 7: Introduction
Neck • Screws for Stand • Screws for Neck • Stand Wall Mount Information This TV uses a 200x200 VESA mounting bracket attachment pattern. Please take this information with you when purchasing a wall mount for this TV. 40STC20 -6... -
Page 8: Installing The Base
Installing the Base 1.Place the neck in position as shown, fix it with the supplied screws. 2.Put the stand to the neck of the TV set as shown below. Insert 4 screw(provided)into the hole of pedestal as shown and tighten. 40STC20 -7... -
Page 9: Remote Control Battery Install
Cable / Satellite remote to operate this ETEC TV, follow the programming instruc- tions included with your providers’ remote and use the following codes. Comcast or Direct TV : 10030 AT & T (U-verse) : 1043 Dish Network : 0030 RCA Universal : 0030 40STC20-8... - Page 10 Remote Control Overview 40STC20 40STC20 -9...
-
Page 11: Overview
27. MTS Press to select a program’s second audio channel (if available). 28. CCD Press to select closed caption subtitles (if available) OFF - ON - CC ON MUTE Press number keys to enter channel numbers. 29. NUMBER KEYS 40STC20 10... -
Page 12: Tv Overview
4. Channel (-CH+) - Press the CH- / CH+ buttons to select a channel in the TV mode. 5. Volume (-VOL+) - Press the VOL- / VOL+ buttons to adjust the volume up or down. 40STC20 -11... -
Page 13: Rear Panel
PC Audio Input (3.5mm) - 3.5mm audio cable (not included) for sound. 7. CABLE / ANTENNA - Connect an antenna or cable connection for television reception. Note: Use an outdoor antenna, cable or satellite for best reception. 8. USB Input Port supports MP3 and JPEG. 40STC20-12... -
Page 14: Installation
HDMI in on the panel. Sourc e Selec t How to Use • Press the INPUT button on the remote, then use the arrows to highlight HDMI. Press ENTER . Component / AV HDMI 1 HDMI 2 HDMI 3 Media 40STC20 -13... -
Page 15: Connect A Digital Cable Box, Satellite Recei Ver, Or Dvd Player With A Component Connection
*NOTE: The picture will be black & white if hooked up incorrectly. HDMI 1 You must hook up audio cables separately. HDMI 2 How to Use HDMI 3 • Press the INPUT button on the TV remote. Then use the arrow buttons to highlight Component. Press ENTER. Media 40STC20 -14... -
Page 16: Connect A Digital Cable Box, Satellite Recei Ver, Or Dvd Player With Composite Cables (Yellow, Red, & White)
Match and insert the yellow, red, and white A / V cables into the device and TV. How to Use Source Selec t • Press the INPUT button on the remote. Then use the arrow buttons to highlight AV. Press ENTER. Component / AV HDMI 1 HDMI 2 HDMI 3 Media 40STC20-15... -
Page 17: Connecting The Power And Basic Cable Connection
Connect the RF coaxial (75 ohm) cable from Wall Outlet existing roof top / indoor antenna, or wall outlet. • Finger tighten the Coaxial / RF Cable end to the TV input on the panel. Coaxial / RF Cable (not included) 40STC20-16... -
Page 18: Connection To A Personal Computer
TV’s panel. Media How to Use • Press the INPUT button on the remote control. Use the buttons to highlight PC. Press ENTER. NOTE: If your PC uses a standard signal mode, the screen will adjust automatically. 40STC20 -17... -
Page 19: Connection To A Home Theater System
ENTER. Surround Left Surround Right Speaker Speaker How to Use (Audio) Select the appropriate input from your audio equipment. *NOTE: Refer to the User Manual from your home theater equipment for recommended audio settings. 40STC20-18... -
Page 20: Tv Setup
Time Format 12-hour Go to next step Use the arrow button to select Go to next step and press the Select the time zone & Daylight saving time Select Move Return MENU button to complete the step. 40STC20-19... - Page 21 Once Channel Auto Scan has ended, Initial Setup is Total Found : complete. You may now begin enjoying your TV, or make further adjustments to the TV settings which are Exit MENU explained in the following pages of this manual. 40STC20-20...
-
Page 22: Picture Setting
Cool (more bluish tone), Normal or Warm setting. • Advanced Settings Adjust advanced video features to fine tune the picture. Press button to enter. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40STC20-21... -
Page 23: Bass
Sets the sound to the second audio program. • Audio Language Press down arrow button to highlight Audio Language. Press button to select English - Francais - Español. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40STC20-22... -
Page 24: Date & Time Settings
Navigate using the arrow buttons to turn this feature On or Off. • Clock and Date are automatically set the first time the tuner receives a broadcast channel. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40STC20 -23... -
Page 25: Setup Settings
Press ENTER / button to enter. external amplifier through adjusting connected to the HDMI inputs. the TV’s volume. Refer to your device’s manual for CEC options. NOTE: Closed Caption and Advanced are features described on the following pages. 40STC20-24... -
Page 26: Closed Captions
Navigate using the arrow the arrow button to enter a menu buttons to select Off, Service 1-6. with options to customize text fonts, colors and opacities. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40STC20-25... -
Page 27: Advanced Settings
Exit • Highlight V-Pos. Navigate • Highlight Auto. Press the using the arrow buttons to arrow button to automatically adjust adjust the position of images the display to the best setting. displayed up and down. 40STC20 -26... -
Page 28: Cec Settings
Connect. Press the highlight Root Menu. Press the arrow button to connect TV and arrow button to enter DVD menu. DVD Player. Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40STC20 -27... -
Page 29: Parental Control
TV-G General Audience PG-13 Parents Strongly Cautioned TV-PG Parental Guidance Suggested Restricted TV-14 Parents Strongly Cautioned NC-17 No One Under 17 Permitted TV-MA Mature Audience Only Adults Only NOTE: PRT Setting and Reset RRT are not user adjustable settings. 40STC20-2... - Page 30 13 ans+ Appropriate for Children 13 years old and up 16 ans+ Appropriate for Children 16 years old and up 18 ans+ Mature Audience Only Select Move Exit Note: When adjustments are completed, you may select another menu by pressing the Menu button. 40STC20-...
-
Page 31: Channel Settings
• Highlight Channel Label to name or rename a broadcast channel. Navigate using the arrow button to enter the screen menu to re-label a channel. Use the arrow buttons to spell out each letter, number or character. Use arrow buttons to advance to the next space. 40STC20 -30... -
Page 32: Tv Channel Setup & Channel Auto Scan
• Press the arrow button to highlight Auto Scan and press ENTER. Press the arrow button to highlight YES and press ENTER to begin Auto Scan. NOTE: Channel Auto Scan may take several minutes to complete. 40STC20 -31... -
Page 33: Aspect Modes
Stretches certain 4:3 content and may reduce visible black bars. 3. ZOOM viewing widescreen content. The Zoom effect will crop images somewhat. 4. CINEMA n eliminating visible side black bars. It may also eliminate or reduce black bars on certain widescreen movies. 40STC20-3... -
Page 34: Usb Modes
• To return to the previous menu screen, press the RETURN button. ress the ▲ / ▼ /◄ / ► buttons to highlight the different playback functions (Play, Pause, Next, etc.) then press ENTER to select the highlighted funciton. 40STC20-3... -
Page 35: Mhl Setting
Connect a MHL cable to the micro USB port on the device, then connect the other end of the cable to the HDMI2 (MHL) jack on the TV. HDMI 3 (ARC) CABLE / ANTENNA HDMI Cable with MHL-Enabled Device HDMI-to-MHL Adatper You should now see the screen image of your connected device on the TV. 40STC20-34... - Page 36 40” Diagonal 16:9 480p / 720p / 1080i / 1080p 1920 x1080 3000:1 178° 178° 16.7M 90 W 2 X 8W 92.9(W)” x 55(H)” x 9.3(D)” Weight (may vary ± 10%) 24.3 lbs HDMI with MHL 40STC20-35...
-
Page 37: Troubleshooting
• Re-connect the antenna or cable wiring. • Restore default settings. See page 24. Remote control does not function • Replace batteries with new ones. • Check that battery polarity is correct. • Point remote directly at the TV’s IR receiver. See page 8. 40STC20-36...
