TM
NEO ANGLE

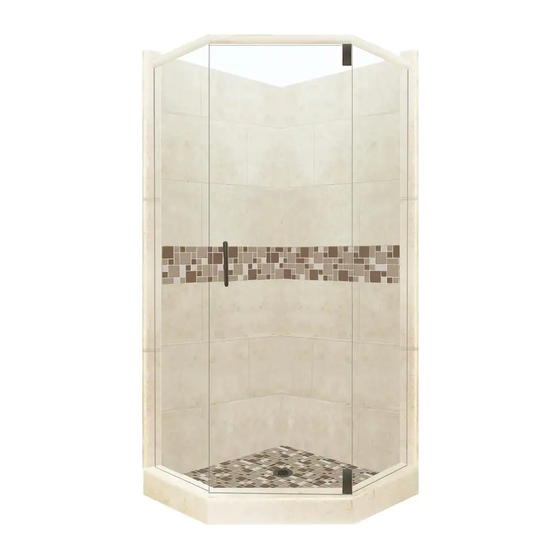

Neo Angle Shower System Installation Guide for Basic & Hinged Packages
Congratulations on the purchase of your new shower package. This guide will give you
the instructions on the installation of your new shower.
Sistine Stone showers are ideal for an experienced "DIYer". Please read through this entire installation
guide before beginning your installation. If you feel you can not confidently install this shower by yourself
hire a licensed contractor, handyman, or professional installer that can do it for you. Installation time
may vary depending on your experience, complexity of shower, and "Pre-Install Prep Work" which may
include: plumbing and/or drain relocation, bathroom demolition, and squaring up studs and floor.
Watch our Installation and Product Videos on americanbathfactory.com/pages/videos
Prior to demolition, scheduling your installer, or building your shower, double check that you have all the
parts from the factory. Some applications may require a licensed plumber or contractor. Do not use any
product spec sheets to begin installation before receiving product. These spec sheets are for reference
only. Use actual product measurements only. The diagrams throughout this guide illustrate a 42" x 42"
shower with a hinged door. Depending on the size of the shower purchased, actual parts may vary in
size and look from the diagrams shown.
Our goal is to help you achieve a quick and successful shower installation.
See the clock in each section for estimated installation time.
Please inspect shipment thoroughly upon receipt and before starting the installation.
Missing or damaged hardware and tiles should be reported within 24 hours of receiving this
shipment. If you need assistance, call 1-800-454-2284 Mon - Fri from 7:15am - 4 pm (PT)
ABF Neo Basic Hinged Install Guide Rev
Advertisement
Related Manuals for American Bath Factory Sistine Stone NEO ANGLE
Summary of Contents for American Bath Factory Sistine Stone NEO ANGLE
- Page 1 NEO ANGLE Neo Angle Shower System Installation Guide for Basic & Hinged Packages Congratulations on the purchase of your new shower package. This guide will give you the instructions on the installation of your new shower. Sistine Stone showers are ideal for an experienced "DIYer". Please read through this entire installation guide before beginning your installation.
- Page 2 CHECK YOUR SHIPMENT AGAINST APPROPRIATE PACKING LIST Make sure you have received all the items necessary for the installation. This will also familiarize you with all the parts and hardware you will need to install your shower. Package contents are dependent upon which package you ordered.
-
Page 3: Optional Items
OPTIONAL ITEMS SHOWER BENCH SHAMPOO BOX GRAB BAR TIME REQUIRED PRE-INSTALLATION TEAR DOWN 8-16 HRS This shower system is designed to be installed on a level, bare floor. It is necessary for any existing shower to be completely removed. Tear out and remove all old material to expose the 2 x 4 wall studs. Clean up the shower area, removing all dust and old material from the area. -
Page 4: Time Required
TIME REQUIRED 2 x 4 STUDS ALIGNMENT & POSITIONING ½ to 1 HR Using the pan and wall panels, you will be able to check to make sure your 2 x 4 studs are in the needed position and supported adequately. You will see in extra 2 x 4 studs are added to the door and glass side thresholds for extra (dia. - Page 5 TIME REQUIRED SETTING PAN ½ HR 1. Now that the drain is installed onto the pan and has dried, dry fit the pan and your drain for alignment. Check to make sure the 2" drain pipe is in the center of the pan drain hole and that the 2"...
- Page 6 TIME REQUIRED PAN & WALL THRESHOLD TRIM 1/2 - 1 HR Threshold for No Glass or Hinged Door 1. No glass showers have 3 threshold pieces TD (dia. 6A & 7 top) Hinged glass showers have 1 door threshold piece TD and 2 glass channel threshold pieces TP (dia.
- Page 7 TIME REQUIRED WALL PANEL/LINER INSTALLATION 3-4 HR A - Inspecting Wall Panels/Liners Inspecting panels at this point will give you confidence that the wall panels are straight and square from the factory. When installing wall panels, you may need to make adjustments to the panels to accommodate for unevenness of your existing walls.
- Page 8 TIME REQUIRED OPTIONAL SHAMPOO SHELF INSTALLATION 1/2 - 1 HR 1. The Shampoo Shelf was designed to match your tile size. 12" x 4. On the 2 tiles the Shampoo Shelf will be replacing, mark 1" 24" tiles, the cut-out hole size is 10" x 22". from the outside of the grout line, the cut-out area will be 10"...
- Page 9 1. Carefully lift the glass panels and set them into the channels. Make sure the glass panels are stable. The glass channels in the shower pan and (dia. 20 a & b) side casings will hold the glass in place while dry-fitting the panels and door. 2.
- Page 10 2. Next, have the other person place the center header section into position. Align the hole in the header center section with the hinge pin and align the glass channels with the glass panels. 3. Push the header section all the way down onto the glass panels and then position the door in its closed position.
- Page 11 (continued) If you would like to use these side seals, follow the steps below: glass panel Locate the plastic h-shaped seals. One goes on the glass panel on the door strike side the other goes on the door on the hinge side. Measure and cut hinge side bulb...
- Page 12 GROUT Your American Bath Factory shower has a non-porous surface, which makes it easy to clean. Decorative lines in the shower wall panels and Sistine Stone floor accents can be grouted if preferred, but it is not necessary. (e.g. 4x4 Diamond) Showers with any glass tile accents must be grouted.
