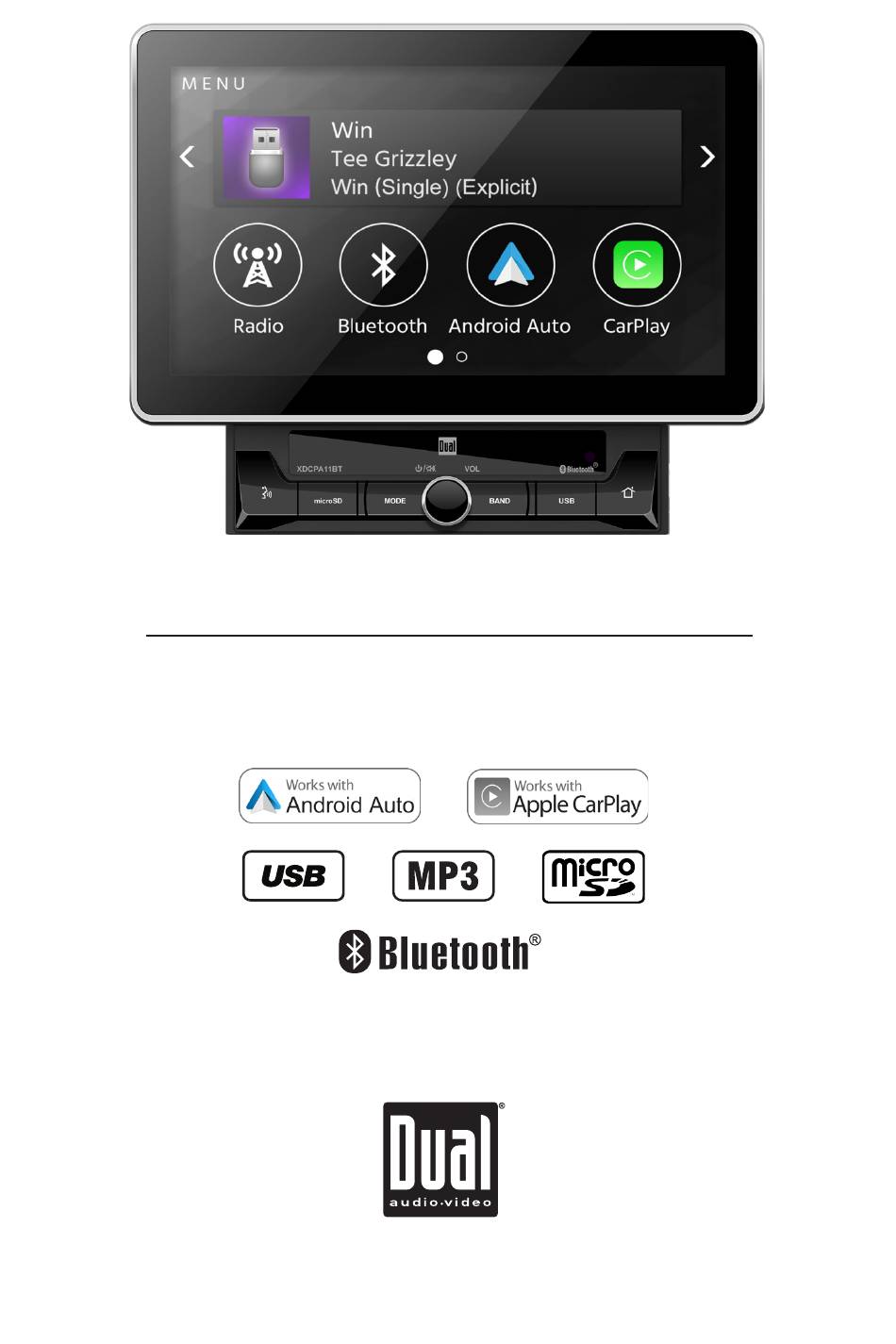

- Page 1 XDCPA11BT INSTALLATION/OWNER’S MANUAL Multimedia Receiver with Android Auto™ and CarPlay™ featuring a 10.1" digital TFT Display...
- Page 2 Copyright Notes This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
-
Page 3: Table Of Contents
XDCPA11BT PREPARATION Table of Contents Page Warning Statement .......... - Page 4 XDCPA11BT PREPARATION WARNING Upon installation of this monitor/media player (“unit”) into a vehicle, the driver of the vehicle must not operate this unit by watching videos or playing video games while driving. Failure to follow this instruction could lead to driver distraction which could result in serious injury or death to the vehicle’s occupants or persons outside the vehicle and/or...
-
Page 5: Safety Information/Precautions
Please read all instructions carefully before attempting to install or operate. Due to its technical nature, it is highly recommended that your DUAL XDCPA11BT is installed by a professional installer or an authorized dealer. This product is only for use in vehicles with 12VDC negative ground only. -
Page 6: Preparation/Mounting
XDCPA11BT INSTALLATION Preparation Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 7: Wiring Diagram
XDCPA11BT INSTALLATION Wiring Diagram - Inputs/Outputs CarPlay and Android Auto 20PIN 6PIN 10PIN 12PIN Note: When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could cause damage. The unit uses (1) 15 amp ATC mini style fuse located on the power connector. -
Page 8: Control Locations
XDCPA11BT OPERATION Control Locations The radio display features the following functions and displays: Voice command button microSD Card Slot MODE button POWER/VOLUME KNOB BAND button USB slot MENU Button – Press to enter Main Menu. Press again from Main Menu to return to last source. -
Page 9: Remote Preparation
XDCPA11BT OPERATION Remote Control Preparation POWER button-Switching the device on/off Volume Up Tune/Track Down OK button-Confirm a selection with OK in each case MUTE button-Muting the device/cancelling mute Volume Down Preset 1~6 Repeat button Play/Pause button Talk button MODE button... -
Page 10: General Operation
XDCPA11BT OPERATION General Operation Power On/Off Momentarily press to turn the unit on. Press and hold to turn the unit off. Volume Rotate the volume knob to increase or decrease the volume level. Mute Momentarily press MUTE to silence the audio. Momentarily press MUTE again to return to the previously selected volume. - Page 11 XDCPA11BT OPERATION General Operation From the Main Menu screen, select Settings to access the Setup menu Setup Menu and select from eight categories represented by the icons on the top of the screen: General, Audio, Display, Others. Select the category, and adjust any of the available options using the touch screen.
-
Page 12: Am/Fm Tuner Operation
XDCPA11BT OPERATION AM/FM Tuner Operation Radio Operation Select the Radio icon from the Main Menu screen. Press to return to Main Menu screen. Main Menu Displays current mode of operation. Current Mode Indicator Local / Distance Press to toggle between Local and DIstance tuning. -
Page 13: Usb Operation
XDCPA11BT OPERATION USB Operation To play audio files from a USB device, connect a device to the rear USB cable and playback will begin automatically. To return to USB playback from another mode of operation, select the USB icon in the Main Menu. -
Page 14: Media Compatibility
XDCPA11BT OPERATION Media Compatibility File Type FAT 12 File System FAT 16/FAT 32 .mp3/.MP3/.Mp3/.mP3 File Extension .rmp/.m4a MPEG 1 MPEG MPEG 2 Format MPEG 2.5 MPEG 1 32/44.1/48kHz Sampling MPEG 2 12/16/22.05/24kHz Frequency MPEG 2.5 8/11.025/12kHz... - Page 15 XDCPA11BT OPERATION Media Compatibility Media Compatibility The following types of files are not compatible: • MP3 PRO format, MP3 playlists • RMP format • AAC, protected AAC, M4A format MP3 playback sequence begins in the root folder of the USB device. Any empty folders or folders that do not include MP3 files are skipped.
-
Page 16: Bluetooth Operation
Complete the pairing sequence from your Bluetooth device. Refer to the owner's manual for your device for more details. The device name is "XDCPA11BT". The unit can be in any mode of operation when pairing is performed. On certain phones, pairing may need to be done more than once. - Page 17 XDCPA11BT OPERATION Bluetooth Operation Contacts Press "Contacts" to access the contacts of your device. Call Log Press the Call Log to show( Dialed, Missed and Received Calls ). Music Press"Music"on the Bluettoth Menu, to play music on your unit using your device, through Bluetooth connection.
-
Page 18: Apple Carplay
XDCPA11BT OPERATION Apple CarPlay Operation Apple CarPlay™ is a smart interface for iPhone, allowing you to voice-control (via Siri) music, navigation, phone and messaging apps - significantly reducing driver distraction. Phone - Use Siri to make calls, return missed calls, listen to voicemail messages, and view the caller ID on the receiver’s screen. - Page 19 XDCPA11BT OPERATION Apple CarPlay Operation When the CarPlay menu is displayed, the home button in the lower left corner work just like the home button on your iPhone. Press and hold it to summon Siri and begin your voice commands.
-
Page 20: Android Auto
XDCPA11BT OPERATION Android Auto™ Operation Android Auto™ brings the most useful apps to your phone screen or your compatible car display, in a format that makes it easy for you to keep your main focus on driving. You can control things like navigation and maps, calls and text messages, and music. - Page 21 XDCPA11BT OPERATION Android Auto™ Operation Using Android Auto™ The Android Auto™ home screen displays personalized information, like time to your destination, reminders, recent calls incoming messages, the song you're listening to, and Google Now cards. When the Android Auto™ menu is displayed, you can say "OK Google" or select the microphone in the upper right corner to talk to Google.
-
Page 22: Media Card Operation
XDCPA11BT OPERATION Media Card Operation To play audio files from a Media Card device. To return to Media Card Media Card playback from another mode of operation, select the Media Card icon in the Main Menu. Main Menu Press to return to Main Menu screen. -
Page 23: Auxiliary Inputs/Rear Camera Operation
XDCPA11BT OPERATION Rear RCA Input Auxiliary Input Connect an optional audio source into the RCA (rear) input. Select auxiliary input from the Main Menu to listen to audio. Adjust volume on the external audio source as needed (if connected to the headphone output of the device). -
Page 24: Swc Input Operation
The built-in SWC Interface is compatible with PAC steering wheel control modules. The PAC SWI-RC is recommended. A third-party adapter must be used in order for the XDCPA11BT to be compatible with any steering wheel controls. The following controls are available for most vehicles. -
Page 25: Troubleshooting
Please keep your original sales receipt and be prepared to provide this receipt in the event you require service, as your original receipt is considered the best proof of purchase and indicates the date you purchased your Dual product. Dealer Name... -
Page 26: Specifications
XDCPA11BT OPERATION Specifications FM Tuner Tuning range: 87.5MHz-108MHz Usable sensitivity: 10dBf 50dB quieting sensitivity: 20dBf Stereo separation @ 1kHz: 38dB Frequency response: 30Hz-13kHz AM Tuner Tuning range: 530kHz-1710kHz Usable sensitivity: 24uV Frequency response: 30Hz-2.3kHz Front USB Compatibility: High Speed USB 2.0... -
Page 27: Warranty
4. For more information and for the location of the original retail purchaser for products purchased from nearest authorized service center please contact an authorized Dual dealer and used in the U.S.A. us by one of the following methods: What is covered? This warranty covers all defects •... - Page 28 Dual Electronics Corp. Toll Free: 1-866-382-5476 Monday-Friday, 9AM-5PM EST www.dualav.com ©2019 Dual Electronics Corp. All rights reserved. NSA0119-V01 Printed in China...
