OWNERS MANUAL
INSTALLATION AND OPERATION INSTRUCTIONS
12PTOC-3
25PTOC-3
SAFETY FIRST
READ THIS MANUAL BEFORE OPERATING YOUR GENERATOR.
Tractor Drive
PTO Generators
60706-133

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Winco 12PTOC-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for DTI Winco 12PTOC-3

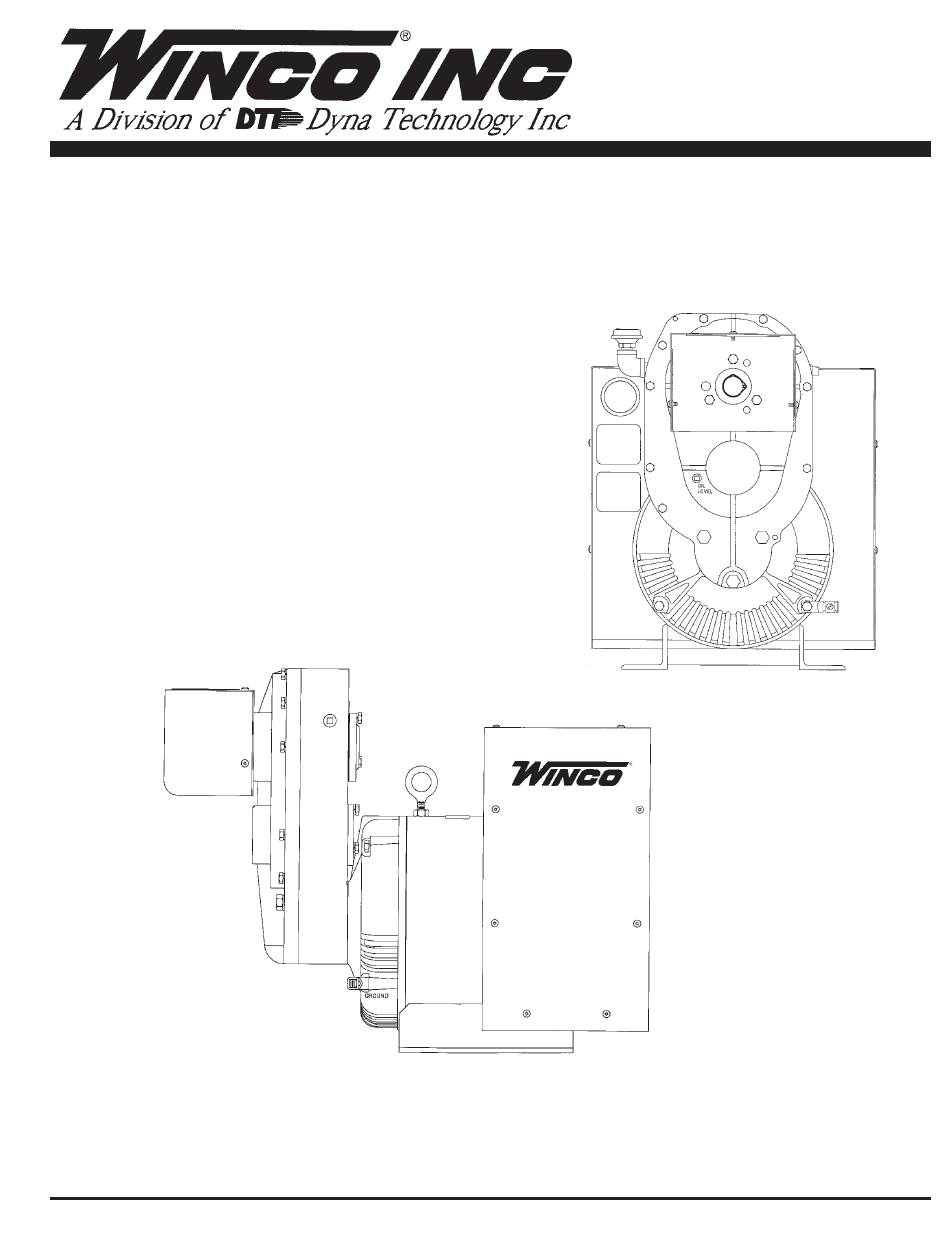

  • Page 1 Tractor Drive PTO Generators OWNERS MANUAL INSTALLATION AND OPERATION INSTRUCTIONS 12PTOC-3 25PTOC-3 SAFETY FIRST READ THIS MANUAL BEFORE OPERATING YOUR GENERATOR. 60706-133...
  • Page 2: Table Of Contents

    Read and understand all instructions in this TABLE OF CONTENTS manual before starting and operating the INTRODUCTION generator set. 36 MONTH WARRANTY GUIDE TO PRODUCT SAFETY USING THIS MANUAL BASIC INFORMATION PREPARING THE UNIT Unpacking the unit Congratulations on your choice of a Winco generator set. Assembly You have selected a high-quality, precision-engineered INSTALLATION...
  • Page 3: Guide To Product Safety

    DEADLY EXHAUST GAS - Exhaust fumes from any engine SAFETY INFORMATION contain carbon monoxide, an invisible, odorless and deadly gas that must be mixed with fresh air. This generator set has been designed and manufactured to allow safe, reliable performance. Poor maintenance, Operate only in well ventilated areas.
  • Page 4: Basic Information

    Description If loss or damage is noted at time of delivery, require that the person making the delivery make note of the loss or damage on the freight bill, or sign the consigner’s memo The WINCO rotating armature power take-off generators are of the loss or damage.
  • Page 5: Installation

    5. Insert the brass pin (with cable) into the plug body, and C. The foundation surface should be flat. line up the retainer pin holes in the brass pin with those in the plug body. D. Space is required around the generator for mounting 6.
  • Page 6: Electrical Connections

    ELECTRICAL CONNECTIONS POWER SOURCE, A SPECIAL DISCONNECT SWITCH MUST BE INSTALLED TO SEPARATE THE GENERATOR AND THE COMMERCIAL POWER LINES. THE CAUTION: DISCONNECT MUST ISOLATE THE GENERATOR FROM Only qualified electricians should install electrical wiring. THE COMMERCIAL POWER LINES AND THE LOAD WHEN Wiring must conform to all applicable national, state, and local THE GENERATOR IS ON STANDBY, AND MUST ISOLATE codes.
  • Page 7: Operation

    Operation MOTOR LOAD SINGLE PHASE Motor Amps Amps OUTPUT POWER AVAILABLE AND LOAD DETERMINATION Horsepower 115V 230V (Running Amps) Before using the generator, read and understand the following information. Generator output current (amperage) is internally limited by circuit breakers. If too much demand is placed on a generator 13.8 output (if you try to drive too many motors with it, for example), one of the circuit breakers will trip, cutting off the output in...
  • Page 8: Starting Procedure

    7. Check all electrical connections in the system to be ener- gized by the generator. Make sure the connections are cor- rect and are tight. 8. Make sure all loads are turned off. Do not start the genera- tor under load. GENERATOR STARTING PROCEDURE 1.
  • Page 9: Maintenance

    universal joints in the coupling shaft free from grease and dirt MAINTENANCE buildup. General Information NOTE: Do not over lubricate the universal joints. The main components of the generator are: armature, field coils, cooling fan, brushes, brush holder assembly, end brackets, rectifier and voltage regulator.
  • Page 10: Storage

    Proceed as follows: 1. Remove control box cover. Vacuum or blow dust or de- bris from the control box. Inspect all wiring for correct routing, fraying insulation, and secure connections. 2. Remove end cover. Vacuum or blow dust and debris from the inside of the generator.
  • Page 11 7. Reverse the meter leads, black lead to the DC NEG (-) and 3. Open Test. Set meter to read low resistance (R x ohms). red to the AC terminals, each in turn. An opposite reading Holding one meter lead on surface of slip ring No. 1, should be observed.
  • Page 12: Trouble Shooting Table

    TROUBLE SHOOTING TABLE SYMPTOM CAUSE(S) CORRECTIVE ACTION No output 1. Circuit breaker open. Reset circuit breakers, replace if defective. voltage. 2. Defective voltmeter. Check output with another meter, replace meter if defective. 3. Short circuit in the load. Disconnect the load. Check voltage at receptacle cord set. Check motors, appliances and load leads for short circuit.
