Operator: _____________________________________________________
Location: ______________________________________________________
Attention!
The distance between the centere of the poles is 3.00 x 1.00m.
In case of an eventual add-on of any other rope-parcours elements
(e.g. "Haiger", "Dillenburg", "Fun Parcours", etc.) the different
distance between the poles has to be considered!
C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_
71_ST_B_L_1_GBR.doc
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen
seiltechnik@huck.net - www.huck.net

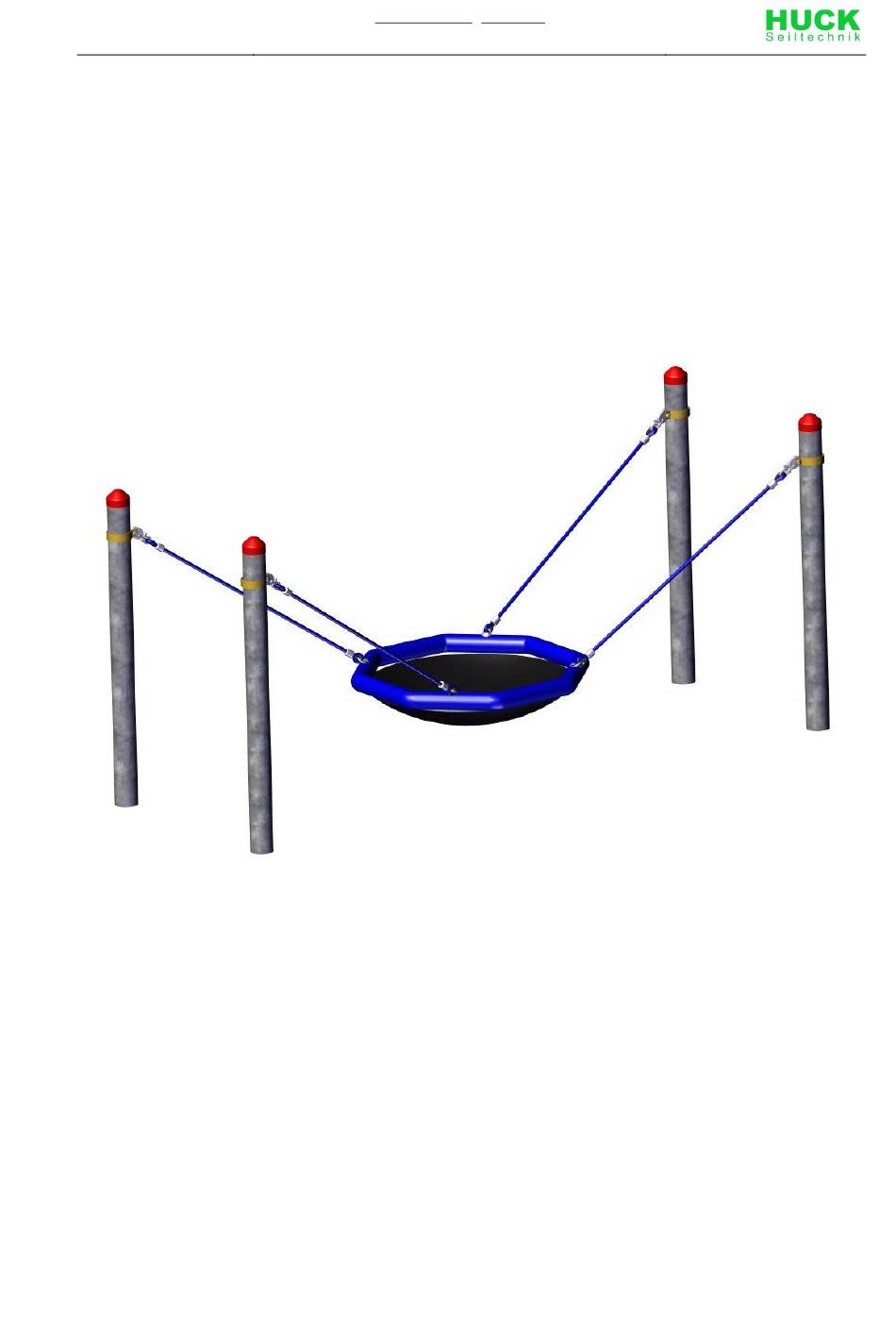

A Assembly instructions
swinging Honeycomb Nest
Art.# 4959-71
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Huck Honeycomb Nest
Summary of Contents for Huck Honeycomb Nest
- Page 1 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net A Assembly instructions swinging Honeycomb Nest Art.# 4959-71 Operator: _____________________________________________________ Location: ______________________________________________________ Attention! The distance between the centere of the poles is 3.00 x 1.00m. In case of an eventual add-on of any other rope-parcours elements (e.g.
- Page 2 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Revision history Revision 0 – 2011-02-04 The first allowed version Assembly instructions JF Revision 01 – 2020-07-22 Neuer Sicherheitsbereich FH 2C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_71_ST_B_L_1_...
- Page 3 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net All rights reserved © Copyright 2011 Huck Seiltechnik GmbH C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_ 71_ST_B_L_1_GBR.doc - 3 -...
-
Page 4: Table Of Contents
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Contents Assembly instructions swinging Honeycomb Nest Art.# 4959-71 ........... 1 Introduction Assembling ....................... 5 Datasheet swinging Honeycomb Nest, Art. # 4959-71 ..............7 Delivery contents (parts list with part numbers) ................. 9 Erection instructions ........................ -
Page 5: Introduction Assembling
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net 1 Introduction Assembling General information This equipment should be installed, inspected, maintained and operated in accordance with EN1176-7 guidelines. Before installation work commences, please check that you have all of the equipment and fixation components in the parts list provided (see Tables 3-1 and 3-2). - Page 6 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Drawings / Views All optical drawings are showing only the measurements/dimensions and are no mandatory technical views of the complete item. We reserve the right to change technical details of our articles which are serving for the further development of our articles and are reasonable for the customer.
-
Page 7: Datasheet Swinging Honeycomb Nest, Art. # 4959-71
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Datasheet swinging Honeycomb Nest, Art. # 4959-71 Space requirement: 3.10 m x 1.10 m and/or Ø 4.10 m including safety zone, height of fall 0.55 m The Images (individual drawings) are not to scale !! - Page 8 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Round off foundation edges (min.R = 100 mm)! Sizes of fundations are “4-5” (natural ground). Soil class 4: soft to medium plasticity, interleave bound, with minor portion of stone (portion <...
-
Page 9: Delivery Contents (Parts List With Part Numbers)
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Delivery contents (parts list with part numbers) In words Table 3-1: Delivery contents, in words Element / Pos. Quantity Size Missing Description Ø 102 mm; 2,40 m Steel post... -
Page 10: Table 3-2: Delivery Contents, In Symbols
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net In symbols Table 3-2: Delivery contents, in symbols Pos. Quantity Symbol Steel post Ø 102 mm, 2,00m Tube clamp+carriagebolt+Nyloc nuts Tube clamp+bolt+nuts Post caps Selfdrilling screws Loctite 3 ml... - Page 11 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Pos. Quantity Symbol Sidewalk stone(Provided by customer) C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_ 71_ST_B_L_1_GBR.doc - 11 -...
-
Page 12: Erection Instructions
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Erection instructions 12C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_71_ST_B_L_1... - Page 13 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_ 71_ST_B_L_1_GBR.doc - 13 -...
- Page 14 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net 14C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_71_ST_B_L_1...
- Page 15 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_ 71_ST_B_L_1_GBR.doc - 15 -...
- Page 16 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Version: swinging Honeycomb Nest Axial demensions Setting time at least 7 - 8 days FR!! Round off concrete edges C25/30 concrete (1.72m³) Drainage Between dimensions Fall protection M.Lot!!!
-
Page 17: Post Installation Checks
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Post installation checks If the equipment has not been installed safely, you must ensure that the public is prevented from using it. Marking filler depth • Labelling the posts to show the depth of material provided as fall protection (i.e. loose filler). -
Page 19: B Maintenance Instructions Swinging Honeycomb Nest Art.# 4959-71
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net B Maintenance instructions swinging Honeycomb Nest Art.# 4959-71 C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_ 71_ST_B_L_1_GBR.doc - 17 -... - Page 20 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Revision history Revision 0 – 2011-02-04 The first allowed version Maiantanance instructions JF Revision 01 – 2020-07-22 Neuer Sicherheitsbereich FH All rights reserved © Copyright 20011 Huck Seiltechnik GmbH...
-
Page 21: Introduction Maintenance
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Introduction Maintenance General informations This equipment should be installed, inspected, maintained and operated in accordance with EN 1176-7 guidelines. Please note: Providing any necessary repairs are carried out, a piece of play equipment that is inspected regularly cannot become so damaged that it is dangerous. -
Page 22: General Maintenance Information
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net General maintenance information Maintenance intervals Maintenance intervals are based on average use. Please note that more frequent inspections and/or maintenance are required if the play equipment is subject to intensive use. - Page 23 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Faults Damages must be repaired as soon as they are detected. If serious defects that affect the safetyness cannot be repaired straight away, the playground item must be blocked with immediate effect.
-
Page 24: Maintenance Timetable
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Maintenance timetable Special advices 8.1.1 Maintenance interval We strongly advise you to carry out inspections and maintenance work within the specified periods as use of the equipment, the weather and malicious vandalism cause wear and tear that compromises the safety and function of the equipment. -
Page 25: Monthly Maintenance
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net Monthly maintenance Check the spaces between the equipment and the ground (clearance and height of fall). Check the ground surface of fall protection for hard objects and loose foundations. - Page 26 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net repairs have been carried out or additional system components have been installed or replaced. 24C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_71_ST_B_L_1...
-
Page 27: Annual Maintenance
Zinc paint should be applied to corroded areas and scratches. The equipment must be inspected by someone with the necessary expertise in strict compliance with the instructions issued by Huck Seiltechnik GmbH. A copy of the inspection record should be given to the operator, who must confirm receipt. -
Page 28: Maintenance Printout
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net 13 Maintenance printout Name of item: swinging Honeycomb Nest _________ / Art. No. 4959-71 _____________________________________ Location: _______________________________________________________________________________________ Customer or operator: _____________________________________________________________________________ (Town, Town council, Kindergarten) Date of Inspector O.K. -
Page 30: Hand Over Document
HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net 14 Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier. - Page 31 Huck Huck Seiltechnik GmbH • 35614 Aßlar/Berghausen • Germany • www.huck.net seiltechnik@huck.net Date: ___________________ C:\Users\HOME\AppData\Local\Microsoft\Windows\INetCache\Content.Outlook\U30DZWO4\Schwebendes_Wabennest_4959_ 71_ST_B_L_1_GBR.doc - 26 -...
