Operator: ___________________________________________________
Location: ___________________________________________________





HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen
seiltechnik@huck.net - www.huck.net

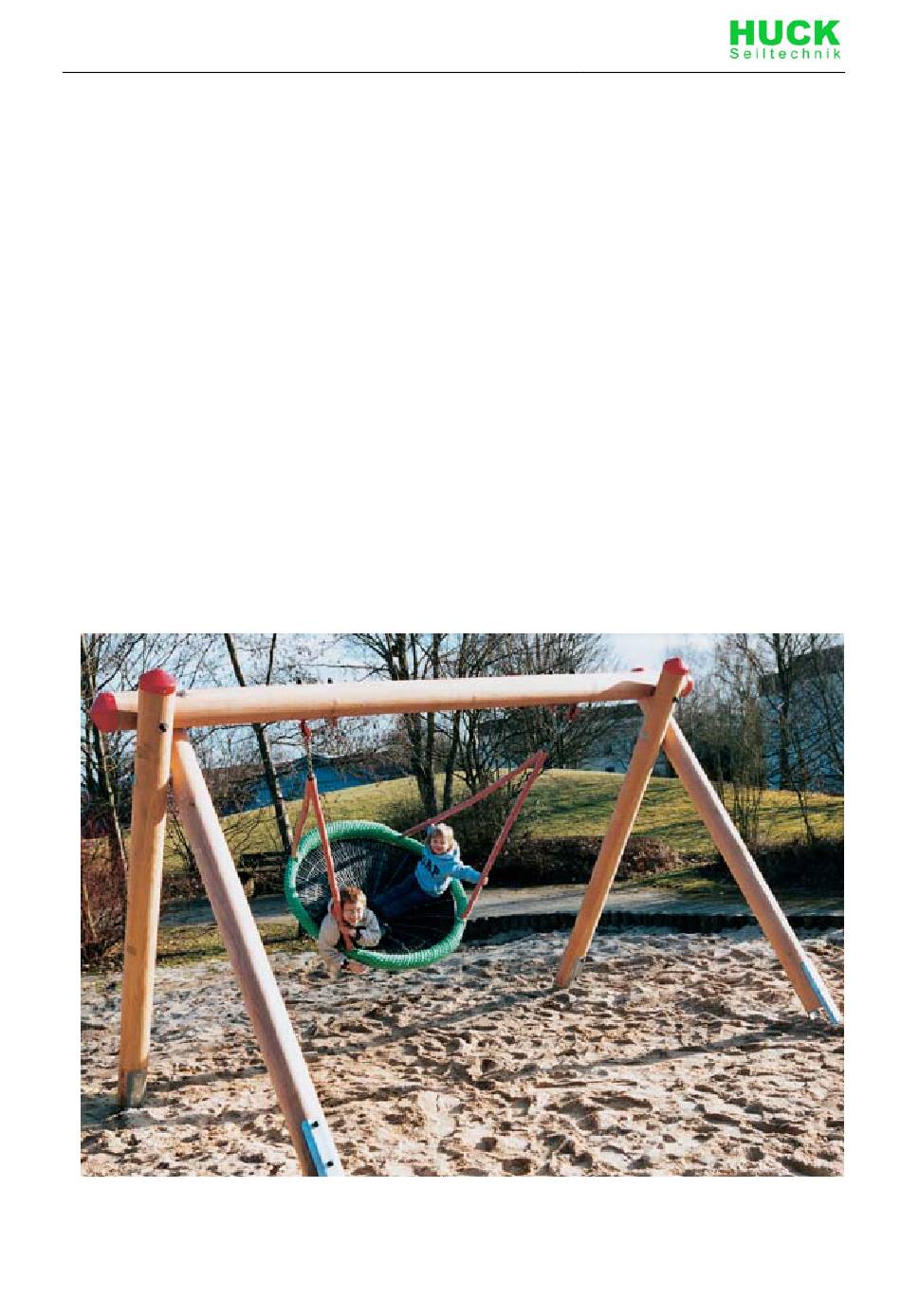

Assembly Instructions
Douglas Fir Swing Frame
Art. 4577-1-200
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Douglas Fir and is the answer not in the manual?

Questions and answers

Related Manuals for Huck Douglas Fir

Summary of Contents for Huck Douglas Fir

  • Page 1 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net                    Assembly Instructions Douglas Fir Swing Frame Art. 4577-1-200 Operator: ___________________________________________________ Location: ___________________________________________________                          ...
  • Page 2 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net                                                   Datasheet douglas - swing frame suspension height 2,00 m (Art.-No.
  • Page 3 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net   6  Size of foundations: depth 0.90m, width 70 cm x 100 cm (incl. Drainage layer of 0.10m height)    concrete foundation block of 40 cm                7  Any spare parts which may be needed can be obtained directly from your supplier or from your  manufacturer.                           ...
  • Page 4 - www.huck.net   - ASSEMBLY INSTRUCTIONS - Multiple Swing frame Art. No. 4577-1-200, made of Douglas fir with a suspension height of 2.00m Package contents: - 4 wooden posts, Ø 16cm, 4.05m long, installed like scissors (incl. post shoes ) - 1 cross beam, Ø...
  • Page 5 For the big Bird´s Nest Art.No. 4650 (bearing on the inside) and for the Huck Honeycomb Art. No. 4550 (bearing on the outside) you always have to fit in the double joint bearing Art. No. 4608-1 (pay attention to the turn direction of the main bearing: upper axis shows askance to the swing direction;...
  • Page 6 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net   ATTENTION! For the use of other hanging up-equipments (as bird´s nest Art. No. 4650/ 4550) you can take the drillings distance for the bearing from the enclosed foundation plan.
  • Page 7 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net      ...
  • Page 8 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net      ...
  • Page 9 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net      ...
  • Page 10 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net               13.Post  14.Playing surface  15.Top of foundation  16.Basic level mark    If the playing surface is sand you have to make the top of foundation round (as you see in the upper sketch), if you let in the foundation 20 cm deep under the upper edge of the playing surface.
  • Page 11 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net     GENERAL TIPS FOR MAINTENANCE      Wood as a construction material is a problem for evaluation because it is a vividness material. As we know from experience you cannot prevent children from running in splinters. But by the splinting of beams, children can get hurt badly.

  • Page 12: Periodic Maintenance Instructions

    HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net     Periodic Maintenance Instructions    Douglas swing frame Art.‐No. 4577‐1‐200     w = weekly m = monthly y = yearly 1/4y 1/2y 1. Check the area where persons using the equipment might fall or slip for hard objects or foundations which have worn free.
  • Page 13 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net      ...

  • Page 14: Maintenance Record

    HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net   Maintenance Record Day of Equipment is Faults rectified Out of Faults Date Inspection Inspector´s Name Useable order    ...
  • Page 15 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net   Hand over document After the installation of the equipment pass the installation and maintenance documents to the operator. The operator has to receive the hand over documents. The complete filled and signed hand over document should be sent to the supplier.
  • Page 16 HUCK Seiltechnik GmbH - Dillerberg 3 – 35614 Asslar-Berghausen seiltechnik@huck.net - www.huck.net        ...
