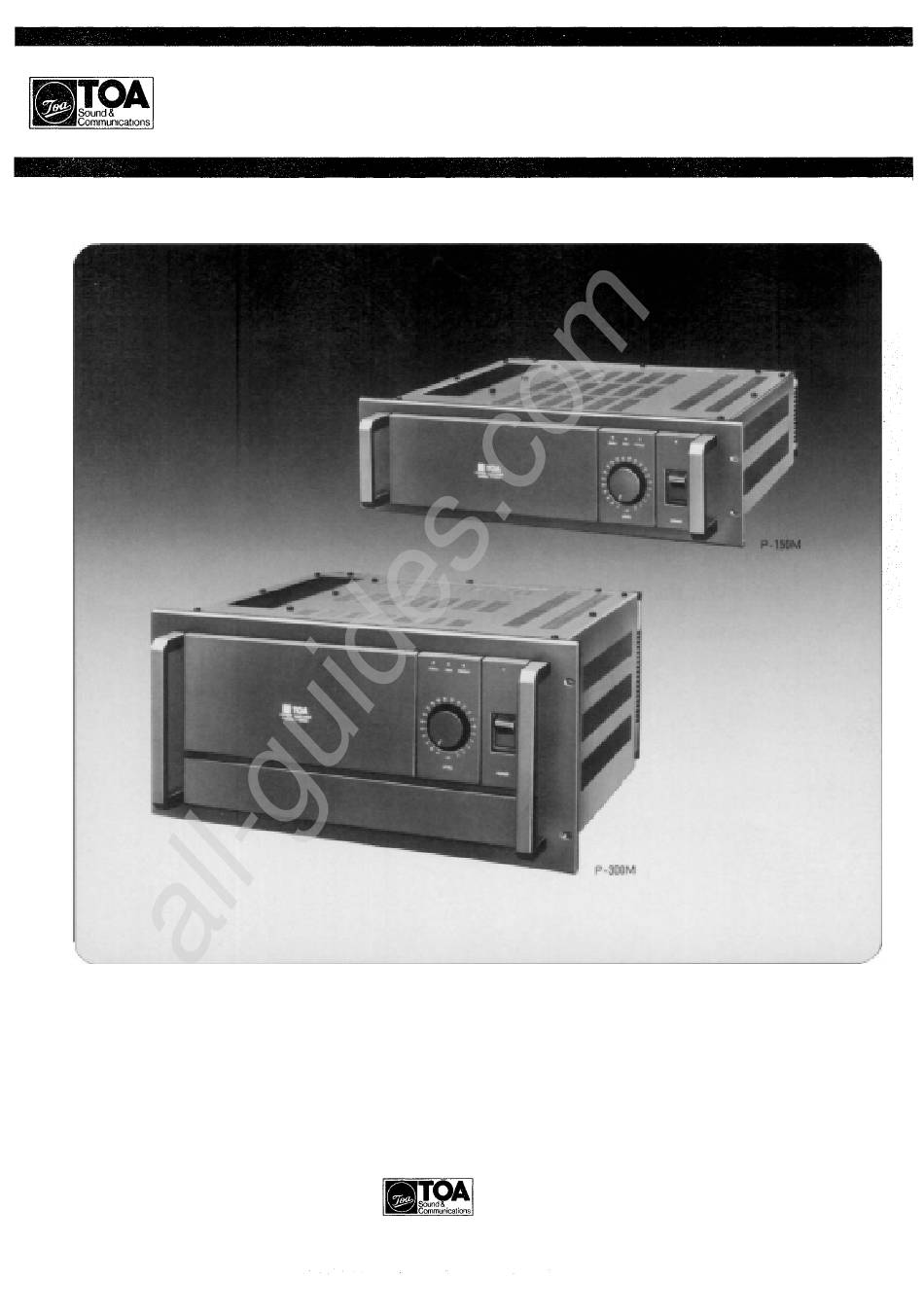

Operating Instruction Manual
TOA PROFESSIONAL POWER AMP
Model P-150M, P-300M
TOA ELECTRIC CO, LTD.
KOBE, JAPAN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-150M and is the answer not in the manual?

Questions and answers

Summary of Contents for Toa P-150M

  • Page 1 All manuals and user guides at all-guides.com Operating Instruction Manual TOA PROFESSIONAL POWER AMP Model P-150M, P-300M TOA ELECTRIC CO, LTD. KOBE, JAPAN...
  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents P r e c a u t i o n s ..........2 General D e s c r i p t i o n .
  • Page 3: Precautions

    8 ohm outputs and built-in output transformers for 25-volt and 70-volt lines, designed for commercial and professional sound applications. The P-150M and P-300M deliver 150 watts and 300 watts, respectively, with 8 ohm loads or with 25-volt or 70-volt distributed system loads.
  • Page 4: Features

    All manuals and user guides at all-guides.com Features 1. Magnetic Circuit Breaker Power Switch Both the primary mains (A.C. line) overload protection and the on/off switch are combined into a rocker-actuated, magnetic circuit breaker whose operation, unlike fuses, is predictable and independent of temperature. Returning the switch to the "on"...
  • Page 5: Specifications

    All manuals and user guides at all-guides.com Specifications (P-150M) (DIRECT OUTPUT) Power Output Controls 150 watts minimum sine wave continuous average power Input Attenuator 22-position, log-linear, detented and dB-calibrated input output with 8-ohms loads over a power band from 20Hz to 20kHz.
  • Page 6 All manuals and user guides at all-guides.com Specifications (P-300M) (DIRECT OUTPUT) Controls Power Output Input Attenuator 300 watts minimum sine wave continuous average power 22-position, log-linear, detented and dB-calibrated input output with 8-ohm loads over a power band from 20Hz to 20kHz.
  • Page 7: Performance Graphs

    All manuals and user guides at all-guides.com Performance Graphs (P-150M) P-150M DIRECT OUTPUT FREQUENCY RESPONSE POWER BANDWIDTH POWER OUTPUT vs LOAD IMPEDANCE INTERMODULATION DISTORTION T.H.D. vs FREQUENCY T.H.D vs POWER OUTPUT VS POWER OUTPUT MEASURED WITH A 4 : 1 MIX AT 60Hz and 7kHz...
  • Page 8 All manuals and user guides at all-guides.com Performance Graphs (P-150M) POWER CONSUMPTION POWER EFFICIENCY P-150M TRANSFORMER OUTPUT T.H.D. vs FREQUENCY T.H.D. vs POWER OUTPUT (at 1kHz) FREQUENCY RESPONSE — 7 —...
  • Page 9 All manuals and user guides at all-guides.com Performance Graphs (P-300M) P-300M DIRECT OUTPUT POWER BANDWIDTH POWER OUTPUT vs LOAD IMPEDANCE FREQUENCY RESPONSE T.H.D. vs FREQUENCY INTERMODULATION DISTORTION T.H.D vs POWER OUTPUT VS POWER OUTPUT MEASURED WITH A 4 : 1 MIX AT 60 Hz and 7 kHz PHASE RESPONSE DAMPING FACTOR vs FREQUENCY ACTUAL OUTPUT IMPEDANCE...
  • Page 10 All manuals and user guides at all-guides.com Performance Graphs (P-300M) POWER CONSUMPTION POWER EFFICIENCY P-300M TRANSFORMER OUTPUT T.H.D. vs POWER OUTPUT (at 1kHz) T.H.D. vs FREQUENCY FREQUENCY RESPONSE — 9 —...
  • Page 11: Front Panel

    All manuals and user guides at all-guides.com Front Panel P-150M P-300M Input Attenuator Calibrated in dB, detented input attenuator decrease input signal levels before the amplifier stage. Power Indicator LED The green LED glows when the power switch is "on".
  • Page 12: Rear Panel

    All manuals and user guides at all-guides.com Rear Panel P-150M P-300M Input connectors The two XLR input connectors are unbalanced and wired parallel to each other with two phone jacks that can accept both a tip/sleeve and a tip/ring/sleeve type of plug.
  • Page 13: Input/Output Connections

    All manuals and user guides at all-guides.com Input/Output Connections P-150M Typical Hookup All XLR type connectors are unbalanced connec- tion. The pins 1 and 2 are ground (shield) the pin 3 hot (high, plus). All phone jacks are unbalanced connection.
  • Page 14 All manuals and user guides at all-guides.com Input/Output Connections P-150M Typical Hookup 70 Volt Distribution System The total impedance should be more than 33 ohms UNBALANCED SIGNAL FROM PREAMPLIFIER MIXER, ETC. P-300M Typical Hookup All XLR type connectors are unbalanced Remove U-shaped Jumper connection.
  • Page 15 All manuals and user guides at all-guides.com Input/Output Connections P-300M Typical Hookup 25 Volt Distribution System The total impedance should be more than 2.1 ohms UNBALANCED SIGNAL FROM MIXER, PREAMPLIFIER, ETC. 70 Volt Distribution System The total impedance should be more than 16 ohms UNBALANCED SIGNAL FROM MIXER,...
  • Page 16: Installation Precautions

    Loop When a Y cord is used, shorten the wiring to minimize noise. A ground lift terminal is provided on the rear of the P-150M and P-300M. Removing the bar in the terminals lifts ground. Since the P-150M and P-300M are high power amplifiers, be careful with ventilation when they are installed.
  • Page 17 Mounting in an enclosed rack cabinet The P-150M and P-300M are mountable in a standard 19" rack. When mounting, insert a 1-unit-sized perforated panel between the units mounted, and place the same at the bottom of the rack. Be sure to mount a perforated panel larger than 1 unit size at the top of the rack.
  • Page 18 All manuals and user guides at all-guides.com Installation Precaution Source Resistance and Damping Factor vs. Length and Size of Output Leads The following figure indicates that a 100 foot length of # 14 AWG annealed copper wire (two conductor) yields a combined amplifier/cable source impedance of 0.5 ohms. A typical 8 ohms load impedance is indicated, and this results in an effective damping factor of 15.
  • Page 19: 25/70 Volt Distribution Systems

    All manuals and user guides at all-guides.com 25/70 Volt Distribution Systems A constant voltage distribution system is a method of connecting loudspeakers to an amplifier where the output voltage of the amplifier and the amount of power delivered to loudspeakers remain constant.
  • Page 20 All manuals and user guides at all-guides.com 25/70 Volt Distribution Systems Two important factors must be considered when setting up a constant voltage distribution system. 1. The rated power of an amplifier must be higher than the total power that the speakers receive. 2.
  • Page 21: Appearance

    All manuals and user guides at all-guides.com Appearance P-150M P-300M — 20 —...
  • Page 22 All manuals and user guides at all-guides.com TOA ELECTRIC CO., LTD. KOBE, JAPAN Printed in Japan 133-02-655...
