8.2 With a controller .......... 166 (indoor use only).......... 144 8.3 Returning to factory programming..... 170 3.4 Connecting the receiver......145 9. Hager guarantee 4. Functions............148 and extension conditions....... 171 5. Creating the radio link ........151 10. Technical data ..........172 5.1 General information ........ -
Page 2: Introduction

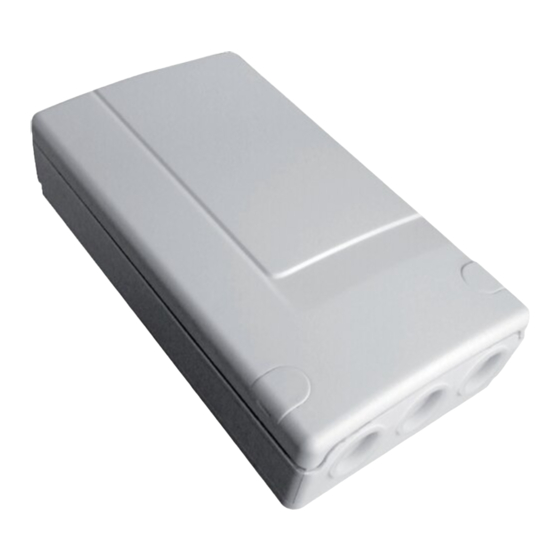

There are 2 external receiver versions: Product Supply voltage Output Radio link Status reference création feedback bottom LED input LED LDG01X 230 V AC voltage-free dry contact Function selection LDG02X 12-30 V AC of DC voltage-free button dry contact The radio link creation and function selection LEDs,... -
Page 3: Preparation
2. Preparation 1. Lift up the cover. 2. Detach the removable pre-cut section of the guarantee sticker, and stick it on to the LDG01X guarantee extension request. If you are adding to an existing system, stick the guarantee A1031A04823 LDG01X... -
Page 4: Installation
3. Installation 3.1 Choosing the best place 2. Drill the holes with a 6 mm Ø drill bit. The external receiver must be 3. Fix the plate using the appropriate wall plugs and placed with the cables pointing screws. downwards and according to the 4. -
Page 5: Fixing The Receiver On A Wall Box
3.3 Fixing the receiver on a wall box 3. Hook the base of the external receiver on to the (for inside installation only) fixing plate and fix it in place using the screw provided in a bag together with the set of IMPORTANT: Switch off the mains 230 V accessories. -
Page 6: Connecting The Receiver
3.4 Connecting the receiver Status feedback wiring This wiring is necessary for the status of the controlled IMPORTANT device to be fed back and displayed on the intercom • For controlling class 1 type devices (appliances handset for example. requiring earthing), make sure the device to be Max. - Page 7 LDG01X external receiver (230 V/dry contact Example with connection to external lighting Example with connection to an electrical lock (class 1 type appliance) (Normally Open dry contact) Electrical lock 230 V Phase Phase halogen lamp Neutral Neutral Earth Transformer 230 V AC...
- Page 8 LDG02X external receiver (12-24 V/dry contact) 3. When using the standard fixing method, hold the cables in place using cable clamps. Fix them in place Example with connection to an automatic gate control using the 6 screws provided in the bag along with the system (Normally Open dry contact) set of accessories.
-
Page 9: Functions
4. Functions The receiver can be controlled by To perform the following functions: the following devices: • Toggle switch: for controlling lighting or an electrical appliance with activation and de-activation of the device every time the key is pressed. • With this function, the same key or command is used to activate and keys of a handset deactivate. - Page 10 Some of these applications may be used simultaneously. Grouped functions Exclusive application Toggle switch Pulse control Presence simulation Timer For example, it is possible to programme the 3 functions below on the same receiver: Press once on to switch on Radio link n°...
- Page 11 It is also possible to use the same key to control several receivers differently. For example: Radio link n° 1 Press once on the to open the garage door and press again to close. It is the Pulse control function that is used.
- Page 12 5. Creating the radio link 5.1 General information Configuring an Optwin ® receiver consists in: • Creating radio links between the different transmitter and receiver products to define who controls who and who sends information to whom. • Allocating a function to each radio link, e.g. when the Light button on the handset is pressed, this activates the lighting controlled by the output receiver for 5 minutes.
- Page 13 5.2 With a handset Handset Receiver 1. Switch to radio link creation mode. Display the following screen using the keys 2. Switch to radio link creation mode. Press on the radio link creation key. The radio link creation LED flashes orange. The output relay status LED lights up red.
- Page 14 Handset Receiver 3. Select the function. Select the required function by pressing on the selection key as many times as necessary. Each time the key is pressed, the selection LED changes colour as described in the table below: Selection LED status Function selected Number of Selection LED status...
- Page 15 Handset Receiver 4. Keuze van de toets verbonden aan de functie. Press on the key. Select a command GARAGE 1 LIGHT 1 IMPORTANT: a receiver can be associated with from the following: GARAGE 2 LIGHT 2 each GARAGE command and 4 receivers for GARAGE 3 LIGHT 3 each LIGHT command.
- Page 16 Handset Receiver 5. Validate the procedure. Press . The handset displays: beeps then 2 sec Garage or light icon displayed The radio link creation LED lights up green for 2 sec. The radio link has been created. If an error occurs, It beeps 3 times The receiver radio link the handset...
-
Page 17: Creating The Radio Link
5.3 With a controller Controller Receiver 1. Switch to radio link creation mode. Press 2. Switch to radio link creation mode. The radio link creation LED lights up orange. Press on the radio link creation key. The radio link creation LED flashes orange. - Page 18 Controller Receiver 3. Select the function. Select the required function by pressing on the selection key as many times as necessary. Each time the key is pressed, the selection LED changes colour as described in the table below: Selection LED status Function selected Number of Selection LED status...
- Page 19 Controller Receiver 4. Select the event associated with the function. Using the keys and controller display Event N° Event name Comment Gate opening This event is displayed when the gate is opened. Gate closed This event is displayed when the gate closes, as long as limit switches have been wired.
- Page 20 Controller Receiver 4. Select the key associated with the function. Press: gate , latch , or cal on the outdoor caller unit. IMPORTANT: step 5 is not necessary if the outdoor caller unit gate, latch or call buttons have been selected.
- Page 21 Controller Receiver The radio link creation LED lights up green for 2 sec., the outdoor caller unit beeps for 2 sec. Otherwise, start the procedure again. The radio link creation LED lights up green for 2 sec. The radio link has been created. IMPORTANT: if an error occurs, the receiver and controller radio link LED flashes red 3 times.
-
Page 22: Real Tests
6. Real tests 7. Closing the box Perform real tests to check that external receiver 1. Close the box by hooking the cover back on to operation corresponds to the selected programming. the base starting from the top. 2. Tighten the 2 screws and conceal them using screw covers (provided with the set of accessories). -
Page 23: Deleting Radio Links
8. Deleting radio links and returning to factory programming 8.1 With a handset Handset Receiver 1. Switch to radio link deletion mode. Display the following screen using the keys... - Page 24 Handset Receiver 2. Switch to radio link deletion mode. Press more than 3 s on the radio link creation key. The radio link creation LED flashes orange. The output relay status LED lights up red.
- Page 25 Handset Receiver 3. Select the key to be deleted Press on the key. Select a command GARAGE 1 LIGHT 1 from the following: GARAGE 2 LIGHT 2 GARAGE 3 LIGHT 3 GARAGE 4 LIGHT 4 Using the keys...
- Page 26 Handset Receiver 4. Validate the procedure. Press . The handset displays: beeps then 2 sec The garage or light The radio link creation LED lights up green for 2 sec. icon disappears The radio link has been deleted. If an error occurs, It beeps 3 times The receiver radio link the handset...
-
Page 27: With A Controller
8.2 With a controller Controller Receiver 1. Switch to radio link creation mode. Press The radio link creation LED lights up orange. 2. Switch to radio link deletion mode. Press more than 3 s on the radio link creation key. The radio link creation LED flashes orange. - Page 28 Controller Receiver 3. Select the event to be deleted. Using the keys and controller display Event N° Event name Gate opening Gate closed Latch opening Side gate closed Day breaking Night falling...
- Page 29 Controller Receiver 3. Select the key to be deleted. Press: gate , latch , or cal on the outdoor caller unit. IMPORTANT: step 4 is not necessary if the outdoor caller unit gate, latch or call buttons have been selected. 4.
- Page 30 Controller Receiver The radio link creation LED lights up green for 2 sec., the outdoor caller unit beeps for 2 sec. Otherwise, start the procedure again. The radio link creation LED lights up green for 2 sec. The radio link has been deleted. IMPORTANT: if an error occurs, the receiver and controller radio link LED flashes red 3 times.
-
Page 31: Returning To Factory Programming
8.3 Returning to factory programming IMPORTANT: only apply this procedure if you lose receiver control devices. Otherwise, follow the procedures described in chapters 8.1 and 8.2. This procedure makes it possible to delete all receiver radio links and return all parameters to factory settings. 1. -
Page 32: Hager Guarantee And Extension Conditions
• intervention or conversion of any type whatsoever, apart from any and address, retailer’s stamp, date of sale, product serial instruction given by Hager, number). Only the date of registration by Hager shall be valid for • damage by dropping or impact, assessing compliance with the above-mentioned period. -
Page 33: Technical Data
• OFF • pulse control • presence simulation Power supply LDG01X: 230 V AC - 50 Hz (16 A) with protection and disconnection possibility LDG02X: 12-30 V AC or DC Operating temperature -20 °C min. / +70 °C max. Degree of protection... - Page 34 DECLARATION OF CONFORMITY Manufacturer: Hager Security SAS Address: F-38926 Crolles Cedex - France Product type: External receiver Trade mark: Hager We declare under our sole responsibility that the products to which this declaration relates are thus compliant with the essential requirements of the following European Directives: •...
- Page 41 Hager SAS Tél. +333 88 49 50 50 132 Boulevard d’Europe www.hagergroup.net BP 78 F-67212 OBERNAI CEDEX 804589/A...
