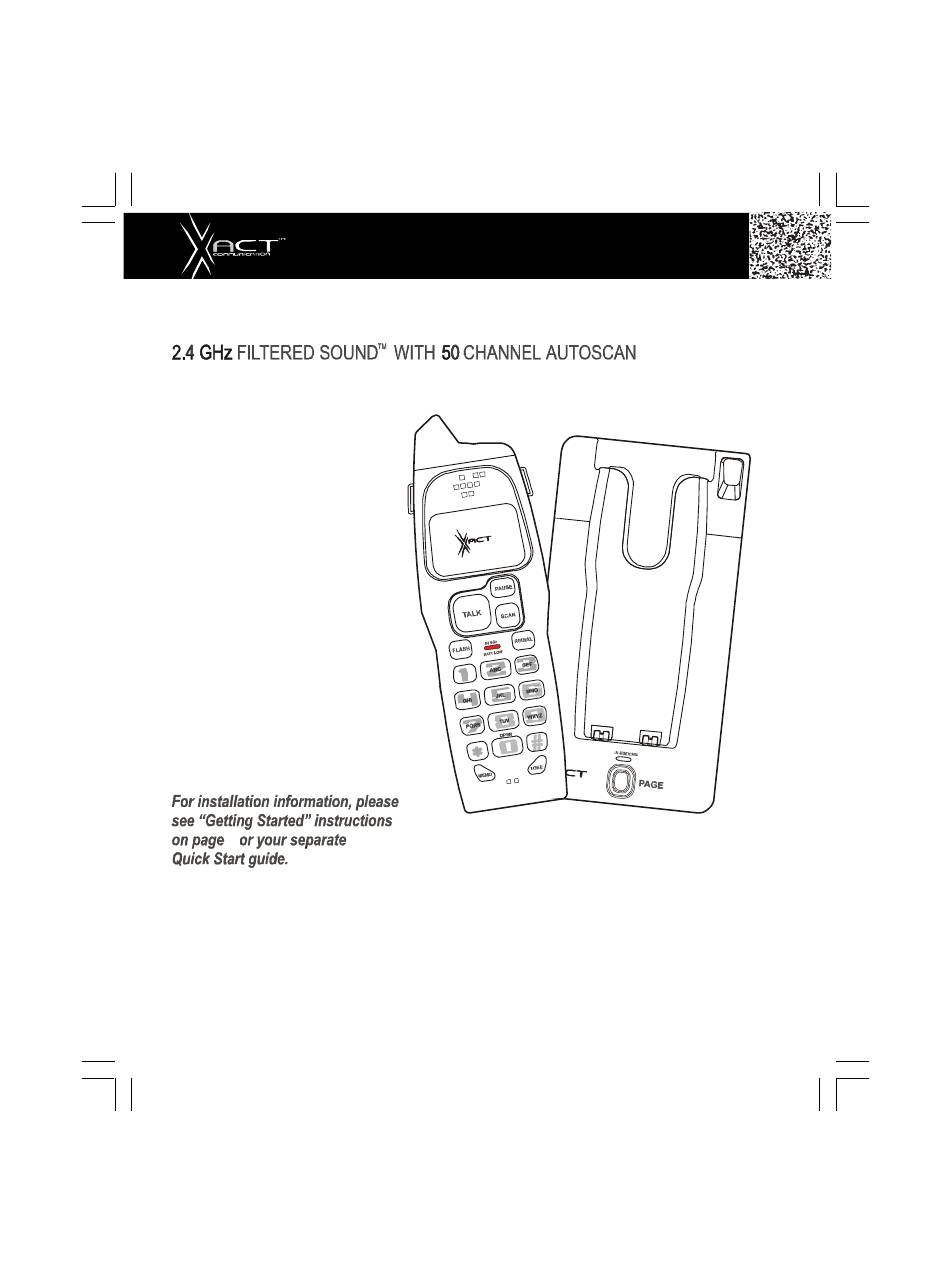

- Page 1 CORDLESS TELEPHONE Model XG2100 OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USE. KEEP FOR YOUR REFERENCE. Visit Us on the Web: www.uselectronics.info © 2002 BellSouth Corporation...
- Page 2 Special Features ongratulations on your selection of a quality XACT Product. With proper care, and by following the setup and user instructions in this owner’s manual, this unit will provide you with years of trouble free service. BellSouth is committed to providing quality products that fit your needs. We would like to have any comments or suggestions you might have on this product.
- Page 3 HANDSET Controls 1. TALK BUTTON 7. PAUSE BUTTON Pg. 5, 7~9, 13 Pg. 9 2. IN USE/BATT LOW LED INDICATOR 8. SCAN BUTTON Pg. 7, 8, 11 Pg. 7, 10, 13, 16 3. FLASH BUTTON 9. REDIAL BUTTON Pg. 9 4.
- Page 4 HANDSET Controls Button: Press to answer an incoming call or to place a call. Press to end a call. TALK 2. IN USE/BATT LOW LED Indicator: Lights up when the HANDSET is in TALK mode. Blinks when the battery charge is low. (See page 11 for detail.) Button: Press to answer an incoming call if you have Call Waiting.
- Page 5 BASE UNIT Controls 1. TELEPHONE LINE 2. POWER-IN 3. TONE/PULSE CONNECTION JACK SELECT SWITCH CONNECTION JACK Pg. 4, 6, 13 Pg. 4 Pg. 5, 13 4. BASE UNIT ANTENNA 5. CHARGE TERMINALS 6. IN USE/CHARGE LED INDICATOR Pg. 8 7. PAGE BUTTON...
- Page 6 BASE UNIT Controls 1. TELEPHONE LINE CONNECTION JACK 2. POWER-IN CONNECTION JACK 3. TONE/PULSE Select Switch 4. HANDSET RETAINER TAB: Holds the HANDSET in the BASE UNIT CRADLE when wall mounting the telephone. 5. BASE UNIT ANTENNA 6. CHARGE TERMINALS: For charging the BATTERY PACK inside the HANDSET. We recommend cleaning the CHARGE TERMINALS periodically with a damp cloth.
-
Page 7: Table Of Contents
Contents Safety Instructions........................2 Getting Started..........................4 Desk Mounting..........................6 Wall Mounting..........................6 Basic Operation........................... 7 Preparing for Use........................7 Placing Calls...........................7 Receiving Calls........................8 Storing Numbers........................8 Recalling Stored Numbers..................... 9 Redial Feature........................9 Using the Headset Feature....................10 Security............................ -
Page 8: Safety Instructions
Safety Instructions IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electric shock and/or injury, always follow these basic safety precautions when using your cordless telephone equipment. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. 3. - Page 9 Safety Instructions Never install telephone wiring during a lightning storm. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines.
-
Page 10: Getting Started
Getting Started Connecting Your Phone This section is a reference guide to the basic functions and operations of your cordless telephone. For more detailed descriptions of the operations and features of this telephone, refer to the Contents on page 1. 1. - Page 11 Getting Started 6. We recommend not placing this unit next to appliances. Doing so may cause interference. 7. Install the HANDSET BATTERY PACK by plugging it into the BATTERY CONNECTOR inside the BATTERY COMPARTMENT. 8. Place the BATTERY PACK inside the BATTERY COMPARTMENT. 9.
-
Page 12: Desk Mounting
Desk Mounting One of the special features of your telephone is the unique design of the MOUNTING BRACKET which can hold your phone at an angle of 30° when desk mounting. There are two positions to choose from: NORMAL POSITION (MOUNTING BRACKET not required): For normal position, as shown in Figure 1, place the FIGURE 1... -
Page 13: Basic Operation
Basic Operation Preparing for Use Before you can use your cordless telephone, you must charge the HANDSET for 12 hours. Failure to do so will require recharging of the BATTERY PACK more often. 1. Place the HANDSET on the BASE UNIT for 12 hours. 2. -
Page 14: Receiving Calls
Basic Operation Receiving Calls with the HANDSET on the BASE UNIT 1. When the phone rings, lift the HANDSET. The IN USE LED indicator will light up. NOTE: The HANDSET RINGER ON/OFF switch must be in the “ON” position for ringer to operate. -
Page 15: Recalling Stored Numbers
Basic Operation EXAMPLE : To store the number 115-1968 under the TELEPHONE KEYPAD button: 1 - Press the button. 4 - Press the TELEPHONE KEYPAD button. MEMO 2 - Dial 115-1968. 5 - You have stored 115-1968 under TELEPHONE KEYPAD button. -
Page 16: Using The Headset Feature
Basic Operation Using the Headset Feature HEADSET Your telephone can utilize a headset (not included) to be connected to your HANDSET for you to enjoy MICROPHONE hands-free communication. Pull out the HEADSET JACK COVER then insert the small plug on the end of the headset into the HEADSET JACK at the left side SPEAKER of the HANDSET. -
Page 17: Recharging The Battery Pack
Recharging the BATTERY PACK Battery Type Use the following type and size of BATTERY PACK: Cordless Telephone BATTERY PACK 3.6VDC, 600 mAh U.S. Electronics Inc. Ni-MH BATTERY PACK: Model B655 This BATTERY PACK is available through: U.S. Electronics Service Center 105 Madison Avenue New York, NY 10016 1-800-828-5208... -
Page 18: Changing The Battery Pack
Changing the BATTERY PACK Changing the BATTERY PACK The BATTERY PACK provides power for the HANDSET of your cordless telephone. To Replace the BATTERY PACK: 1. Remove the HANDSET BATTERY COMPARTMENT COVER by sliding it down. 2. Pull out the BATTERY PACK PLUG and remove the BATTERY PACK. 3. -
Page 19: Problem Solving
Problem Solving Problem Solving Section For your assistance, we have listed below a few common problems. Phone does not work, check the following: 1. BASE UNIT is plugged into a power source. 2. HANDSET is charged. 3. TONE/PULSE Select Switch is in the right position. 4. -
Page 20: Technical Information
Technical Information Technical Information This cordless telephone uses radio frequencies to allow mobility. There are certain difficulties in using radio frequencies with a cordless telephone. While these are normal, the following could affect the operation of your system. Noise Electrical pulse noise is present in most homes at one time or another. This noise is most intense during electrical storms. -
Page 21: Fcc Requirements
FCC Requirements Federal Communications Commission Requirements This equipment complies with Part 68 of the FCC Rules. A label on the BASE UNIT of this equipment contains, among other information, the ACTA Product Number and the Ringer Equivalence Number (REN) for this equipment. You must, upon request, provide this information to your telephone company. - Page 22 FCC Requirements Federal Communications Commission Requirements (continued) NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 23: Warranty
Warranty Warranty Information BellSouth Products One-Year Limited Warranty This limited warranty sets forth all BellSouth Products responsibilities regarding your product. There are no other expressed or implied warranties from BellSouth Products. Warranty Service Provided If you purchased the telephone new from a retail vendor, BellSouth Products warrants the telephone against defects in material and workmanship for a period of one (1) year from the original date of purchase. - Page 24 Warranty What to Do for Warranty Service During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at the retailer from whom it was purchased. After thirty (30) days, the defective product should be returned to the authorized service center. Please allow 2-3 weeks for the return of your telephone product.
-
Page 25: Wall Mount Template
Wall Mount Template This page serves as a template for attachment of screws to the wall when mounting this telephone on the wall. Cut out this page. Use this template to determine the distance between screws when mounting this phone on the wall. The two cross hairs identify where to attach the screws.
