WARNING: If the instructions in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or death.
- Do not store or use gasoline or other flammable vapors or liquids in the
vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the
gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service
agency or gas supplier.
NOTE: This appliance must be installed solely and exclusively by a qualified
technician. Any technical procedures must be carried out by an authorized
technician.
Table of Contents
8
8
9
10
11
16
19
22
3
Advertisement

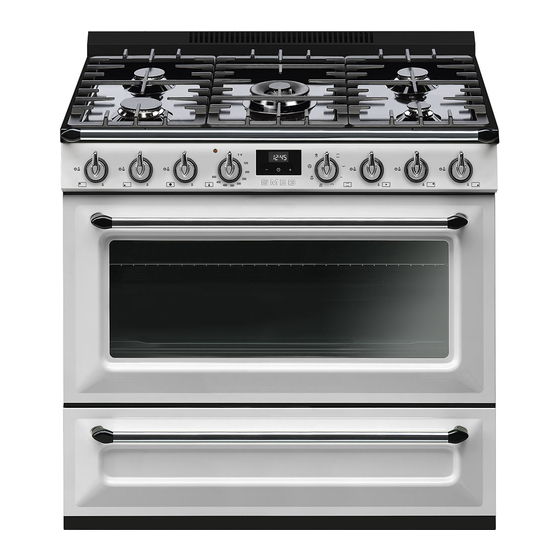

Related Manuals for Smeg TRU36GMWH
Summary of Contents for Smeg TRU36GMWH
-
Page 1: Table Of Contents
Table of Contents 1 Installation 1.1 Dimension Requirements 1.2 Product dimensions 1.3 Unpacking, moving and positioning the range 1.4 Wall attachment and anti-tip device 1.5 Electrical requirements 1.6 Gas supply requirements 1.7 For the installer WARNING: If the instructions in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death. - Page 2 Important Safety Instructions TIP OVER HAZARD • A child or adult can tip the range and be killed. • Make sure that the anti-tip device has been properly installed and attached. The wall-mounted brackets should anchor the WARNING sides of the range (primary system) or, in case of floor- mounted brackets, they should anchor the rear of the range to the ground.
- Page 3 Important Safety Instructions • This appliance is intended for use in the home only. • Use this appliance only for its intended purpose. The manufacturer cannot be held liable for damage caused by improper use of this range. WARNING • This appliance complies with current safety regulations. Improper use of this range can result in personal injury and material damage.
- Page 4 Important Safety Instructions WARNING To reduce the risk of fire, electrical shock, personal injury, or damage when using the range, follow basic safety precautions, including the following: WARNING PRIMARY FASTENING SYSTEM: Visually check that the wall-mounted brackets are inserted into the appropriate lateral hooks (on both sides).
- Page 5 Important Safety Instructions • Never modify or alter the construction of How to read the user manual the appliance. For example, do not This user manual uses the following reading remove adjustable legs, panels, wiring conventions: or anti-tip brackets/screws. Installation CAUTION: This unit is designed as Information for the qualified a cooking appliance.
-
Page 6: Installation
Installation 1 Installation 1. min. clearance from the sides of range to side wall or other combustible material; 1.1 Dimension Requirements 2. min. cabinet opening width; 3. upper cabinet to countertop; 4. min. when bottom of wood or metal cabinet is protected by not less than ¼” (0.64 cm) flame retardant millboard covered with not less than No. -
Page 7: Product Dimensions
Installation 1.2 Product dimensions Check the location where the range is to be installed. The range should be positioned Overall dimensions: Location of gas and for convenient access in the kitchen. electrical connection points. NOTE: Observe all governing codes and ordinances. Any openings in the wall or floor where the range is to be installed must be sealed. -
Page 8: Unpacking, Moving And Positioning The Range
Installation 1.3 Unpacking, moving and • Legs should be installed near to where the appliance will be used as they are positioning the range not secure for long transit. Keep the unit CAUTION: This unit is designed as raised so the legs can be screwed into a cooking appliance. -
Page 9: Wall Attachment And Anti-Tip Device
Installation 1.4 Wall attachment and anti-tip device Warning Electrical shock hazard • Use extreme caution when drilling holes into the wall or floor. There may be concealed electrical wiring located behind the wall or under the floor. • Identify the location of the electrical circuits that could be affected by the installation of the anti-tip device, then turn off power to these circuits. - Page 10 Installation Instructions for wall mounting (primary 3. From the floor, measure the height of the system) notch found on the bracket. This notch corresponds to the centerline of the holes The anti-tip brackets are to be attached to for the screws that will fasten the brackets the rear wall as shown.
- Page 11 Installation 5. espect the heights indicated in the figures Instructions for floor mounting (secondary system) using the appliance’s dimensions as a guide. (Type of screw recommended The secondary anti-tip device is to be attached to the floor when it is not possible ”).
- Page 12 Installation 3. The bracket attachment should insert into Assembling the backguard one of the central slots at the rear. The backguard provided is an integral part of the product; it must be fastened to the appliance prior to installation. The backguard must always be positioned and secured correctly on the appliance.
- Page 13 Installation Mounting the kick plate Mounting the side kick plates The kick plate provided is an The side kick plates provided are integral part of the product; it must an integral part of the product; be fastened to the appliance prior they must be fastened to the to installation.
-
Page 14: Electrical Requirements
Installation 1.5 Electrical requirements Make sure that the power line rating matches the specifications indicated on the Warning ID plate. The ID Plates are visibly located Electrical shock hazard on the back of the appliance and on the oven door frame. These ID plates must never be removed. - Page 15 Installation • lf codes permit and a separate ground • This appliance is manufactured with a wire is used, it is recommended that the green-yellow or green ground wire suitability of the ground path be checked connected to the oven frame. Make sure by a qualified electrician.
- Page 16 Installation U.S. Installation only / 3-wire branch U.S. and Canada installation / 4-wire circuit branch circuit Refer to figure, where local codes allow the • Separate the green or yellow-green connection of the ground wire from the wires from the white wires that extend out oven to the power supply cable neutral of the end of the appliance cable.
-
Page 17: Gas Supply Requirements
Installation • Connect to a 20A fuse or circuit breaker. This installation must conform with all local Connect to copper wire, or, if codes and ordinances. In the absence of connection is made to aluminum house local codes, installation must conform to wiring, use UL-listed or CSA-approved American National Fuel Gas Code, ANSI connectors approved for joining... - Page 18 Installation Gas connection Test the appliance Follow these instructions to leak test the Connect the adapter C (ISO 228/1 - ½ NPT) to the gas inlet of the appliance A appliance: being sure to insert the supplied gasket B. Use a brush and liquid detergent to test all Apply a suitable sealing substance (such as gas connections for leaks.
- Page 19 Installation Incoming line pressure Incoming line pressure upstream from the NOTE: The range must be isolated regulator must be 1” (2.5 cm) W.C.P. higher from the gas supply piping system than the manifold pressure in order to check by turning off the respective the regulator.
-
Page 20: For The Installer
Installation 1.7 For the installer • The plug must remain accessible after the installation is complete. Do not kink or trap the mains connection cable. • The appliance must be fitted according to the installation diagrams. • Do not attempt to turn or stress the threaded elbow on the manifold.
