BioZone Scientific International IceZone X Manual

Lamp change
Hide thumbs Also See for IceZone X:

Advertisement

Quick Links

Download this manual
|
Lamp Change
Welcome to the IceZone® X on-line training module

Advertisement

loading
Need help?

Need help?

Do you have a question about the IceZone X and is the answer not in the manual?

Questions and answers

Related Manuals for BioZone Scientific International IceZone X

Summary of Contents for BioZone Scientific International IceZone X

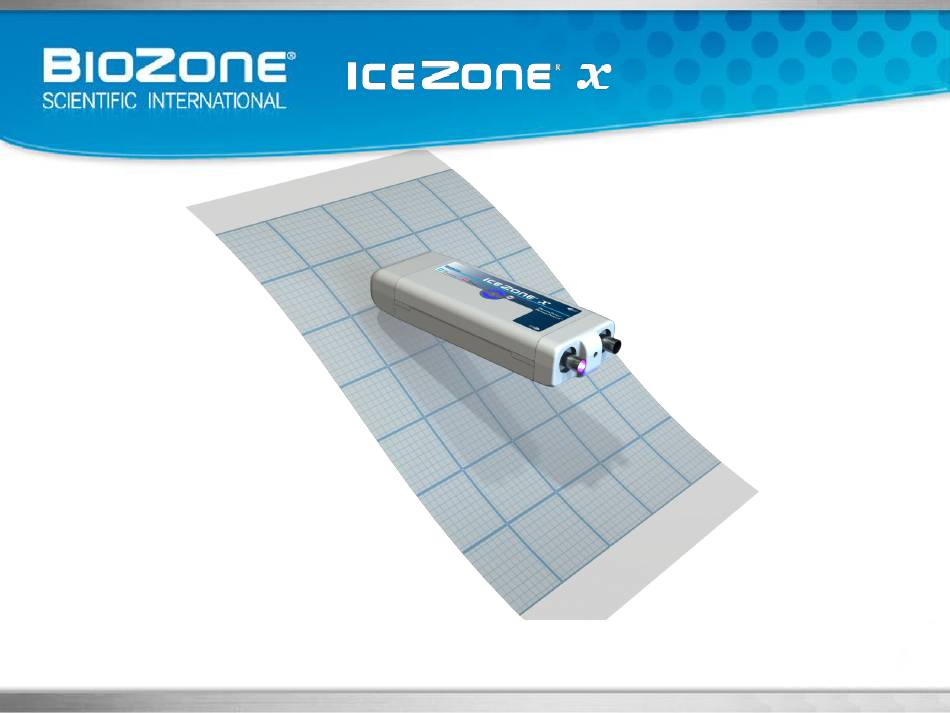

  • Page 1 Lamp Change Welcome to the IceZone® X on-line training module...
  • Page 2 Lamp Change Lamp Change Instructions for IceZone® X...

  • Page 3: Lamp Change

    Lamp Change There are two reasons to change the lamp in the IceZone® X: 1) The lamp has reached its useful life after 9000 hours and needs to be changed to maintain the effectiveness of the IceZone® X. In this case the status indicator light will show a steady red color.
  • Page 4 Lamp Change Precautions to observe when changing the lamp in the IceZone® X: 1) Allow the lamp to cool for 5 minutes before attempting to remove the lamp from the IceZone® X. 2) Do not touch the glass section of the lamps. If this section is touched it should be wiped immediately with isopropyl alcohol.
  • Page 5 Lamp Change Unplug the wall adapter from the wall to turn off the IceZone® unit Remove the service cover from the IceZone® unit by removing the cover retaining screw.
  • Page 6 Lamp Change Unplug the DC plug to ensure the IceZone® unit is not connected to power.
  • Page 7 Lamp Change Remove the lamp plug.
  • Page 8 Lamp Change Remove the lamp by grasping the white ceramic insulator. Caution: See safety recommendations at the beginning of this presentation regarding handling of the lamp.
  • Page 9 Lamp Change Pull the lamp out of the IceZone® completely.
  • Page 10 Lamp Change Install the new lamp by inserting into the IceZone® by grasping the white ceramic insulator.
  • Page 11 Lamp Change Reconnect the lamp connector being sure to observe the orientation of the pins. If the connector does not connect easily, rotate 90 degrees and try again. The lamp pin pattern is not square...
  • Page 12 Lamp Change Reconnect the DC power connector...
  • Page 13 Lamp Change Reinstall the service cover on the IceZone® unit by inserting the cover retaining screw. Turn on the IceZone® unit by plugging the wall adapter into the wall outlet. Important! : Reset the lamp life counter by holding down the reset tool in the reset hole at the center of the lighted ring for 10 seconds.
  • Page 14 Lamp Change Thank you for purchasing...
