Infinity Reference 2000.6 Technical Manual page 2

Reference

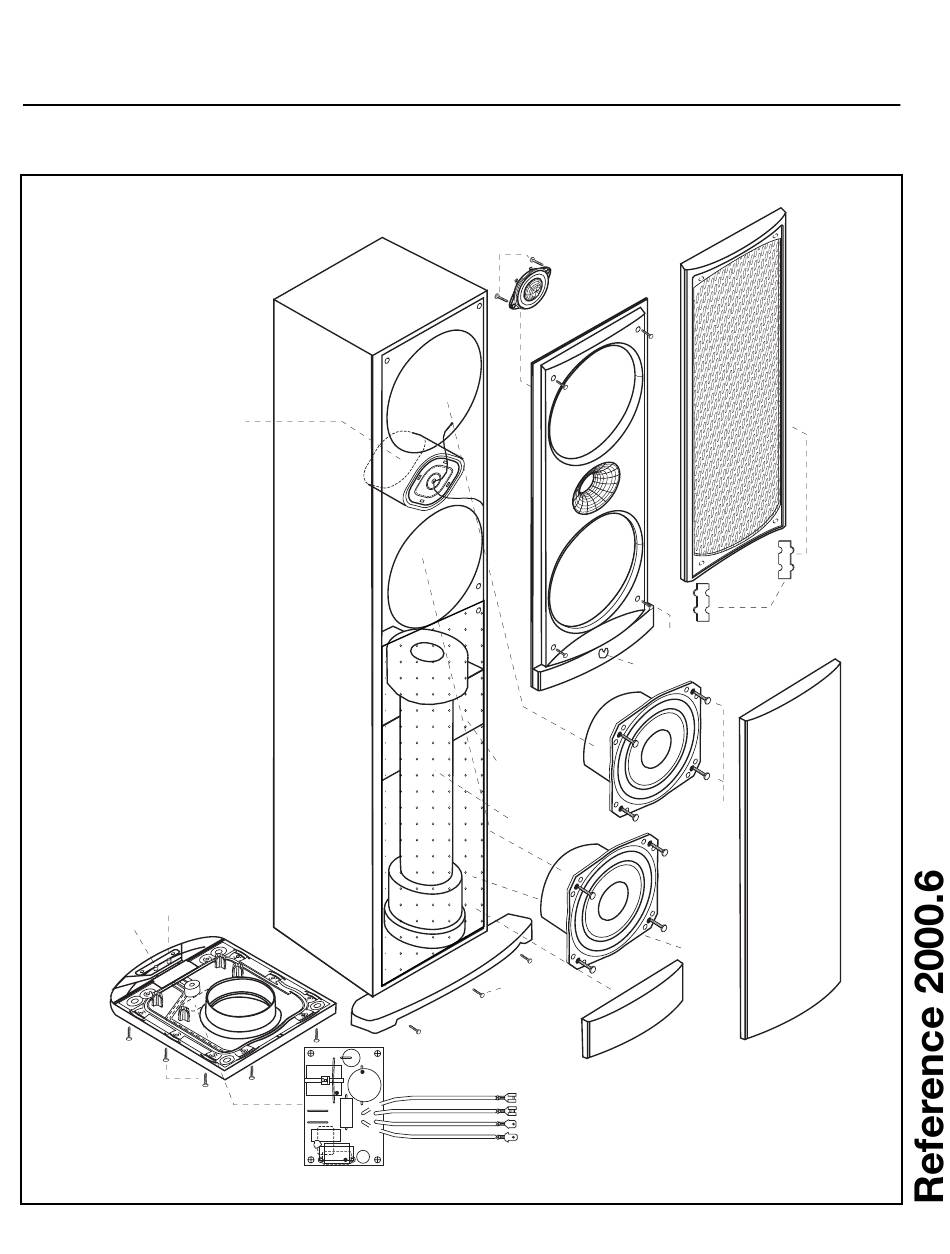

COMPONENT EXPLODED VIEW
Cabinet (Not for Sale)
Black Ash 331046-002
Cherry 331046-002
331724-001
Black Terminal
331723-001
Red Terminal
331075-002
Rear Base Assembly
Screws (10)
900101-016
2000.6
330834-001
Tweeter Cup
+ IN
— IN
331103-003
Crossover Network
Infinity Systems, Inc. 250 Crossways Park Dr., Woodbury, New York 11797
905502-004 (2)
#4-40x1/4 PPH Zinc.
Screw
333232-001
1" Tweeter
331109-001
Front baffle
Acoustic Filter
(Not for Sale)
Port Tube
(Not for sale)
330617-002
Woofer
Screws (3)
900101-016
331121-001
Base Front Foot
35" RED/BLACK
SERVICE NOTE:
35" RED
34" BLUE
32" BLACK For access to the drivers the front baffle must be
removed (4 screws).
333204-001
Grille Assembly
331875-001 (2)
Grille Gasket
63563 (4)
#6 x 3/4 PPH
Screw
331296-001
Logo
63563 (4)
#6 x 3/4 PPH
330976-001
Bottom Grille
331119-001
Kick Baffle
9-98
