Summary of Contents for Camec ELITE PRO EM305

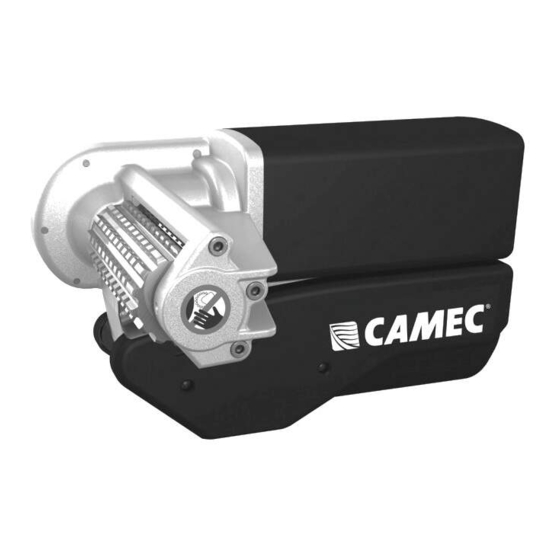

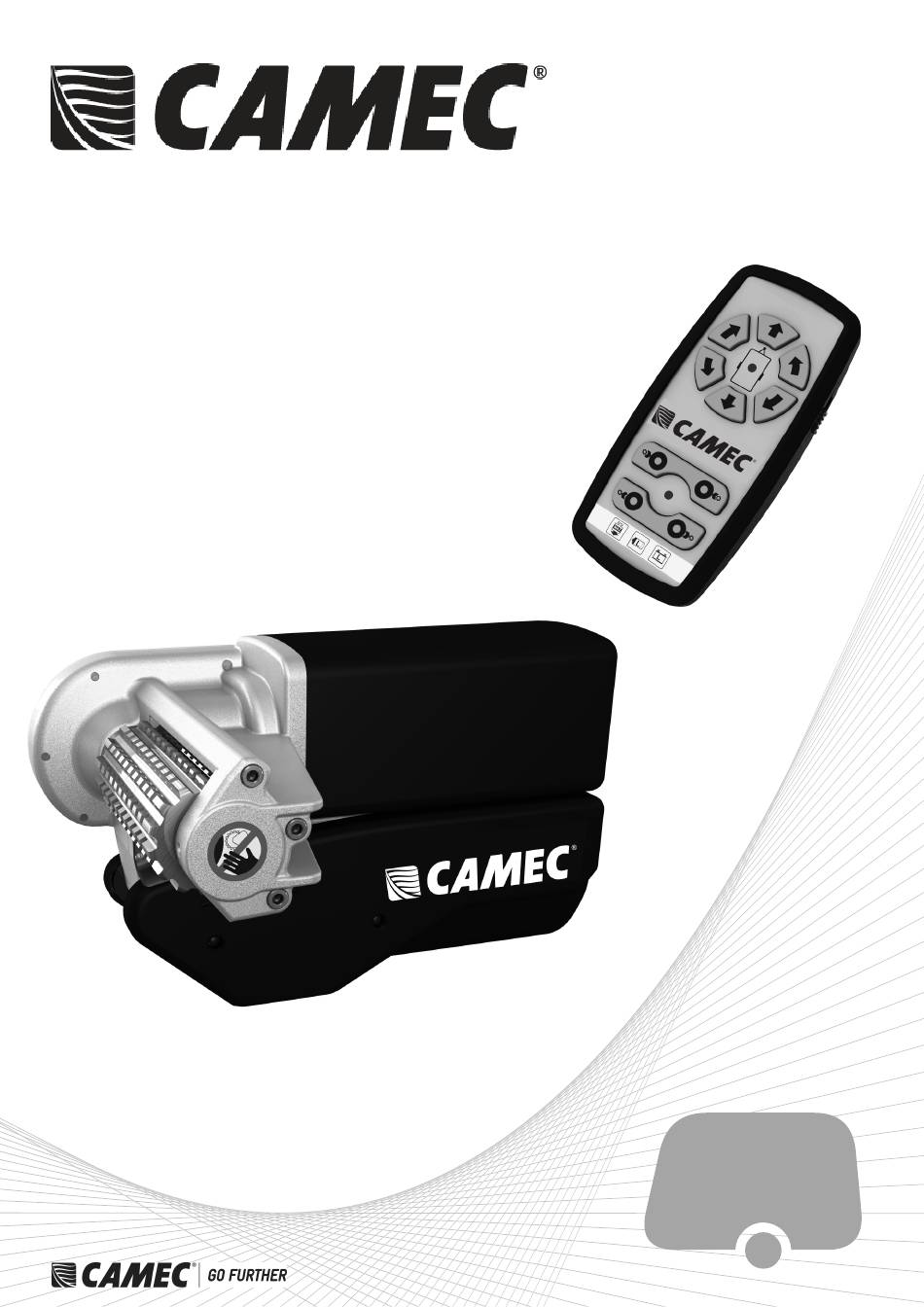

- Page 1 ELITE PRO Caravan Mover User Manual Model: ELITE PRO EM305 Part No: 042374 For Professional Installation Only CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
-
Page 2: Table Of Contents
Rubber isolation shell for battery isolation switch Remote control handset wall holder Screw – M5x40 Chassis Clamp Plates (Pair) Bolt - M8x70 Nylon nut M8 Washer 8mmØ Spring washer 8mmØ CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"... - Page 3 Pac kage Contents Fig.1 CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
-
Page 4: Introduction
INTRODUCTION ® Congratulations on choosing the Camec Elite Pro EM305 caravan manoeuvring system. This has been produced according to very high standards and has undergone careful quality control procedures. By simply using the remote control handset you can move your caravan effortlessly into any position required within operating guidelines. -
Page 5: Installation - Mechanical Components
(axle) of the caravan wheel (0mm~40mm, see Fig. 12). As well make sure that between the top of the motor housing and the floor of the caravan is minimal 20mm space to make sure the motors can move freely (see Fig. 12 & 18). To compensate a possible unevenness (and lower the motors), Camec Elite Pro ®... -
Page 6: Installation - Electrical/Electronic Components
Motor unit B: Positive (+) cable to terminal b Motor unit B: Positive (+) cable to terminal d Motor unit B: Negative (-) cable to terminal a Motor unit B: Negative (-) cable to terminal c CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"... - Page 7 Finally find a suitable place for the remote control handset wall holder (32) and fix this with the supplied screws (out of reach of children or other unauthorised people). Installation of the caravan manoeuvring system is now complete. CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
- Page 8 Parts Identification & Fitting Diagrams Fig.2 Fig.3 Fig.4 Fig. 6 Fig.5 Fig. 6.1 Fig. 7 CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
- Page 9 Parts Identification & Fitting Diagrams Fig. 8.1 Fig. 8 Fig. 9 Fig.10 CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
- Page 10 Parts Identification & Fitting Diagrams Fig.11 Fig.12 20 mm 20 mm Min. Fig.11.1 Fig.14 Fig.13 10mm Fig.15 Caravan Front CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
- Page 11 Parts Identification & Fitting Diagrams Fig.1 6 Fig.1 7 185mm (Min) 2.8mm to 3.5mm 30mm to 45mm 165mm (Min) 85mm (Min) 1800mm to 2500mm (Max) Fig.18 CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"...
-
Page 12: Operation - Safety Guidelines
OPERATION - SAFETY GUIDELINES Practice operating the manoeuvring system in an open area before using for the first time. This is to fully familiarise yourself with the handset and manoeuvring system operation. Before use, always check the caravan manoeuvring system for any damage. When towing or moving the caravan please be aware, at all times, that ground clearance is reduced when the manoeuvring system has been fitted. -
Page 13: Operation - Motor Units
When you switch within 2 seconds from forward driving to reverse driving (and the other way around), a small delay of 1 second will appear to protect the electronics and the motors. CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"... - Page 14 To reactivate the remote control, move slide switch to “Off” –O and then back to “On”-I after approximately 1 second. Error messages via the remote control handset: Error messages of the Camec Elite Pro ® EM305 will be communicated via the remote control handset by the green LED (Fig.
-
Page 15: Operation - Electronic Control Unit
(Fig. 4H) will illuminate continuously. ® The single-twin axle function switch (Fig. 14S/T): The Camec Elite Pro EM305 Caravan manoeuvring system is suitable for both single axle and twin axle caravans. You just need to move the single-twin axle function switch (Fig 14S/T) on the control unit, so that the manoeuvring system can be used for a single- axle caravan or a twin-axle caravan (for 2 motor use but also for 4 motor use). -
Page 16: Operation - Hitching And Unhitching
Before you start driving always make sure that the both drive units are fully disengaged! Trying to drive away with the drive units still engaged, will damage the manoeuvring system, your caravan tyres and strain your tow vehicle! CAMEC ELITE PRO EM305 Ref: ELITE PRO EM305-0814-Rev.A. “More information https://www.caravansplus.com.au"... -
Page 17: Maintenance
Check the fuse (80A) in the red positive battery cable (Fig. 7). If the fuse is blown, it must be replaced with a ® fuse of the same value (80A). Never “bridge” the fuse (if needed contact your Camec Elite Pro supplier). To replace the fuse, first disconnect the positive (+) power cable from the battery. - Page 18 15 seconds and then turn them on again. Roller will not turn, spindle rotates freely: The motor or gear is broken, please contact your Camec Elite Pro ® supplier.
- Page 19 Contact Information New Zealand Australia Airport Business Centre 47-63 Remington Drive 44 Montgomerie Road, Mangere Dandenong South 3175 Phone: 0011 64 9 257 2419 Phone: 1300 4 CAMEC (22632) www.camec.com “More information https://www.caravansplus.com.au"...
