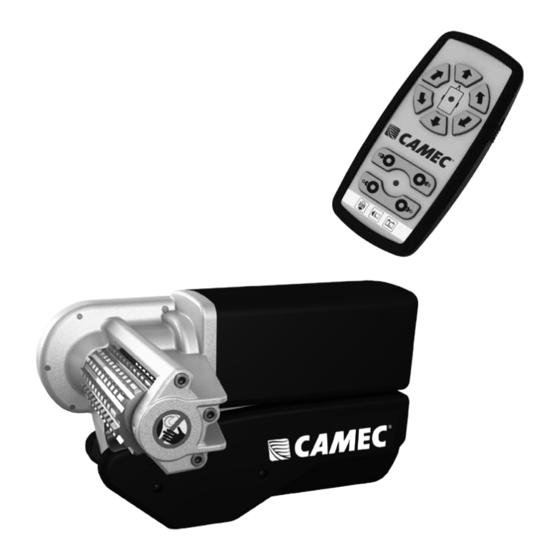

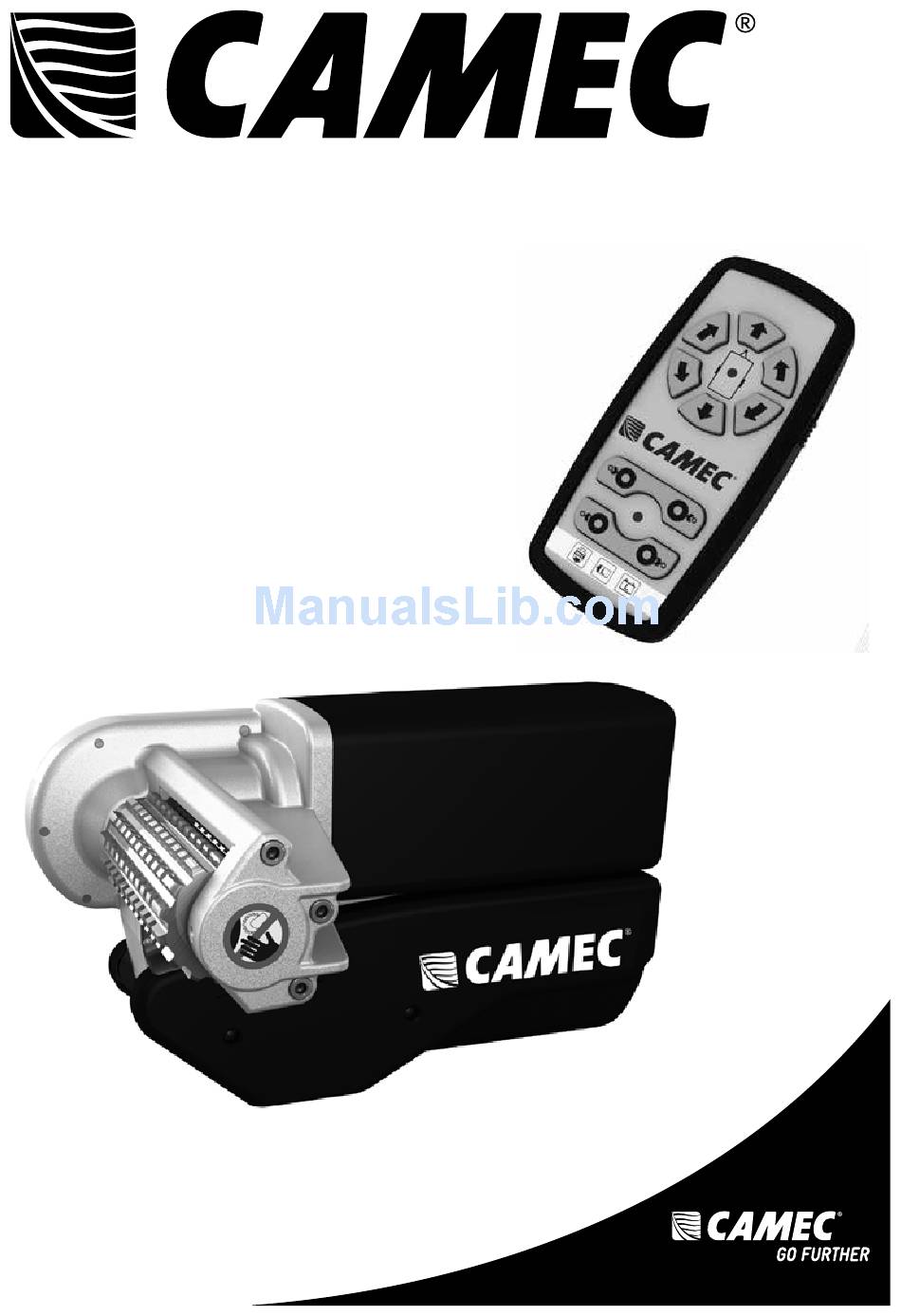

- Page 1 ELITE PRO 2 Caravan Mover ® User Manual Model: CAMEC ELITE PRO ® EM305 Part No: 043322 For Professional Installation Only...
-
Page 2: Table Of Contents
Rubber isolation shell for battery isolation switch Remote control handset wall holder Screw – M5x40 Chassis clamp plates (pair) Bolt - M8x70 Nylon nut M8 Washer 8mmØ Spring washer 8mmØ CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... -
Page 3: Package Contents (Parts List)
Package Contents CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... -
Page 4: Introduction
INTRODUCTION Congratulations on choosing the Camec Elite Pro 2 EM305 caravan manoeuvring system. This has been produced ® according to very high standards and has undergone careful quality control procedures. By simply using the remote control handset you can move your caravan effortlessly into any position required within operating guidelines. -
Page 5: Installation - Safety Guidelines
Do not remove, change or alter any parts of the chassis, axle, suspension or brake mechanism. Any drilling of holes in the chassis is not allowed. • Do not install the unit if you are under the influence of drugs, alcohol or medication that could impair your ability to use the equipment safely. Fig. 2 CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... -
Page 6: Installation - Mechanical Components
(0mm~40mm, see Fig. 5). As well make sure that between the top of the motor housing and the floor of the caravan is minimal 20mm space to make sure the motors can move freely (see Fig. 3 & 5). To compensate a possible unevenness (and lower the motors), Camec Elite Pro 2 has a set of distance plates ®... - Page 7 If necessary, loosen the bolts and re-adjust the position of the assembly. The main mechanical components have now been installed. Re-check that all bolts/nuts have been tightened to the correct torque! CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305...
-
Page 8: Installation - Electrical/Electronic Components
Motor unit B: Positive (+) cable to terminal b Motor unit B: Positive (+) cable to terminal d Motor unit B: Negative (-) cable to terminal a Motor unit B: Negative (-) cable to terminal c CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... - Page 9 Seal the 25mm hole in vehicle under body using plastic body sealant. • Finally find a suitable place for the remote control handset wall holder (32) and fix this by the supplied screws (out of reach of children or other unauthorised people). Installation of the caravan manoeuvring system is now complete. CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305...
-
Page 10: Installation - Twin Axle
The installation of the caravan manoeuvring system for twin axle use is now complete. For details of the operation, use and all the LED and button functions, please refer to the table of contents. CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. - Page 11 CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305...
-
Page 12: Operation - Safety Guidelines
Sensitive objects such as cameras, DVD-Players etc. must not be kept in the stowage box near the con- trol unit or the motor cable. They can be damaged by the electromagnetic fields. Do not make any modifications on the caravan manoeuvring system (mechanical or electronically). This can be very dangerous! No warranty claim will be accepted and we cannot guarantee the function of the system if any modifications are made. We will not be liable for any damage whatsoever caused as a result of incorrect installation, operation or modification. CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... -
Page 13: Operation - Motor Units
Put the plastic caps back on the motor housing. As soon as the battery is charged again, or the problem is solved, the motor powered rollers will automatically work again. CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... -
Page 14: Operation - Remote Control Handset
After 6 minutes, if one of the movement buttons is permanently held down: After 5 minutes the buzzer will beep 5 times with a repetition after 6 minutes. Thn the system switches to “stand-by” mode. CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. - Page 15 To reactivate the remote control, move the slide switch to “Off” –O and then back to “On” –I after approximately 1 second. Error messages via the remote control handset: Error messages of the Camec Elite Pro 2 EM305 will be communicated via the remote control handset by the green ®...
-
Page 16: Operation - Electronic Control Unit
After successful synchronisation, the green LED on the control unit (Fig. 16B) and on the remote control handset (Fig. 17H) will illuminate continuously. The single-twin axle function switch (Fig. 16S/T): The Camec Elite Pro 2 EM305 caravan manoeuvring system ®... -
Page 17: Operation - Getting Started
(out of reach of children or other unauthorised people). • Turn off the battery power isolation switch. Before you start driving always make sure that the both drive units are fully disengaged! CAMEC ELITE PRO ® Ref: ELITE PRO 2 EM305-0715Rev.A. EM305... -
Page 18: Operation - Hitching And Unhitching
Once a year have your caravan manoeuvring system maintained and visually inspected. This inspection must include all the bolt/nut connections, the cables and electrical connections and lubrication of movable parts/joints. In case of any failure or problem, please contact your Camec Elite Pro 2 EM305 supplier. - Page 19 15 seconds and then turn them on again. Roller will not turn, spindle rotates freely: • The motor or gear is broken, please contact your Camec Elite Pro 2 EM305 supplier. ® In case of any doubt, please call your Camec Elite Pro 2 supplier.
- Page 20 Contact Information Australia New Zealand 47-63 Remington Drive Airport Business Centre Dandenong South 3175 44 Montgomerie Road, Mangere Phone: 1300 4 CAMEC (22632) Phone: 0011 64 9 257 2419 www.camec.com...
