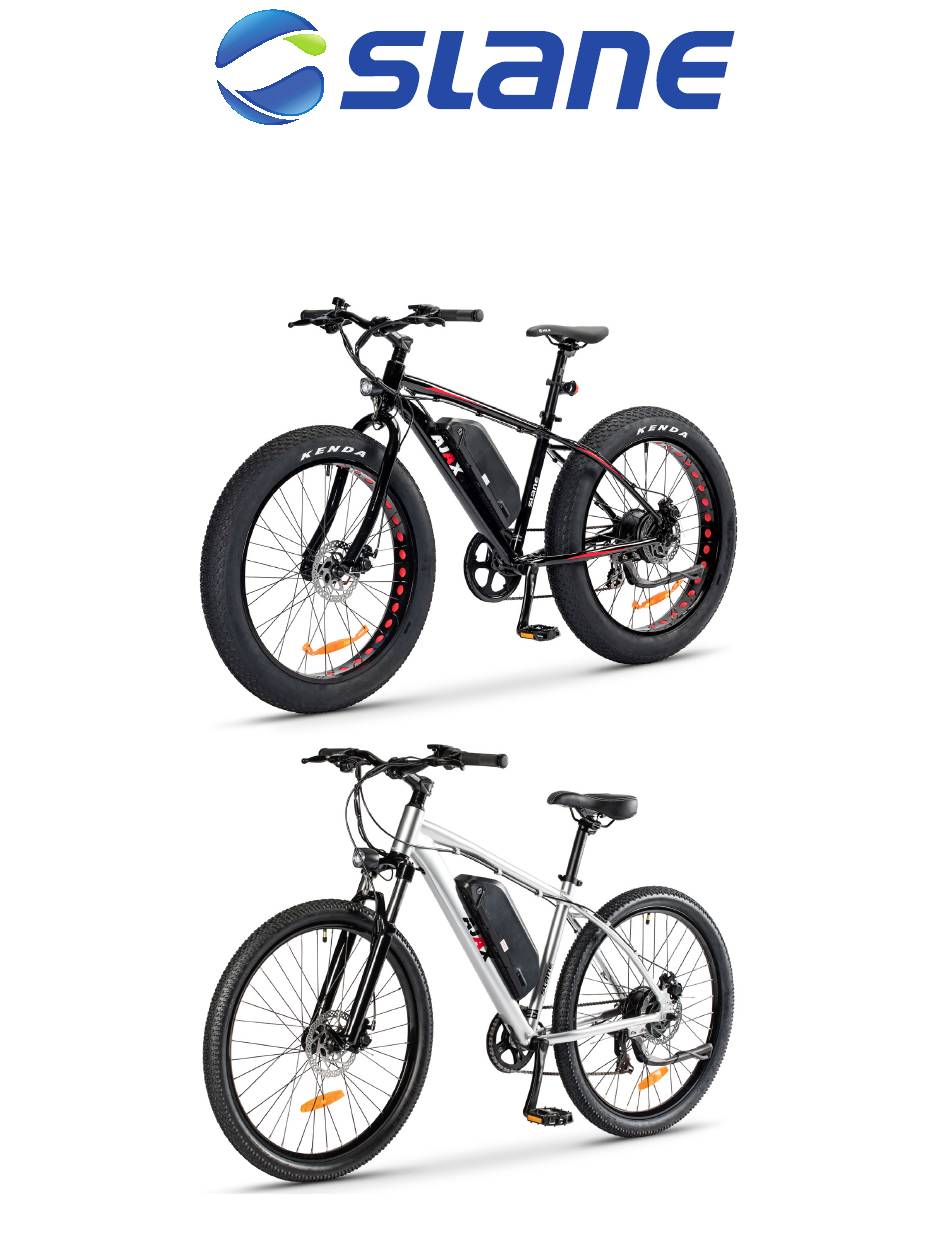

AJAX E-BIKE
(Fat Tire & Regular Tire)
PLEASE READ THIS MANUAL BEFORE ASSEMBLING OR RIDING YOUR E-BIKE
USER MANUAL
his user's manual explains the operation and maintenance of your E-Bike.
T
Diagrams in this manual may differ from actual products; refer to your local dealer's existing products.
Slane reserves the right to change or improve their products; further notice will not be given.
Advertisement
Table of Contents
Related Manuals for Slane AJAX
Summary of Contents for Slane AJAX
- Page 1 E-Bike. Diagrams in this manual may differ from actual products; refer to your local dealer’s existing products. Slane reserves the right to change or improve their products; further notice will not be given.
-
Page 2: Table Of Contents
• Duration of Battery Charging............11 • Riding Safely..................12 • Don’t detach and disassemble spare parts or rebuild this electric bicycle. Purchase spare parts from an authorized dealer of SLANE E-Bikes. • Parking & Maintenance..............13 • Cleaning & Inspecting your E-Bike..........14 •... -
Page 3: Specifications
SPECIFICATIONS HELMETS AJAX REGULAR TIRE AJAX FAT TIRE Motor Rated Power (W) Motor Rated Voltage (V) Speed (Km/h) Range (km) 30-45 35-45 • Many Provinces require specific safety devices. It is your responsibility to Load Capacity (lb) familiarize yourself with the Province’s laws where you ride and comply with Front &... -
Page 4: Assemble The Handlebar
ASSEMBLING THE FRONT WHEEL ADJUSTING THE STEERING WHEEL • Open the box from the top, take the bike, parts and accessories box out. • Carefully remove all protective carton pieces, foam pads, tie wraps, plastic fittings, recycle all material that can be recycled, dispose of the rest. ASSEMBLE HANDLEBAR •... -
Page 5: Adjusting The Front Brakes
ADJUSTING THE FRONT BRAKES SHIFTER/DERAILLEUR SHIFTER 1. Insert an elbowed hex key into the screw port of the brake frame, turning the screw left to loosen and right to tighten. Turn to the left gently makes the brake a little loose. This E-bike is equipped with gears, that include: •... -
Page 6: Powering On/Off & Entering Settings
POWERING ON/OFF & PEDAL ASSIST SYSTEM (PAS) ENTERING SETTINGS When the throttle or sensor is engaged (powering the motor), and the E-Bike is This E-Bike has an electric pedal-assisted driving system. in motion, the LED on the battery gauge (on the throttle or separate unit) indicate The pedal-assisted driving system consists of a driving unit, a battery, a controller, instantaneous line voltage as measured at the battery terminals-not the available and various electronic components (harness wires, sensors and switches). -
Page 7: Battery Charging
UNLOCKING AND REMOVING THE BATTERY WARNING! WHEN THE BATTERY IS BEING REMOVED FOR CHARGING PLEASE NOTE THAT THE ELECTRODE “+” “-” SHOULD NEVER BE TOUCHED BY HANDS (ESPECIALLY • Insert key on the battery case and turn key counterclockwise to unlock the WET HANDS). -
Page 8: Riding Safely
RIDING SAFELY PARKING • Shut off the power switch after you get off to prevent an unintentional abrupt start-up • Once you have completed the initial battery charge, you are ready to ride. of the bicycle • It is your responsibility to know and abide by all local laws that govern and •... -
Page 9: Cleaning & Inspecting Your E-Bike
BATTERY STORAGE CLEANING YOUR E-BIKE To avoid damage or accidents caused by wet inner electrical parts, do not wash your E-bike with STORING YOUR BATTERY FOR AN EXTENDED PERIOD a high-pressure washer. Clean off dirt on any painted metal or plastic parts with a damp cloth using a mild cleaning product. -
Page 10: Flat Tire/Broken Spoke
FLAT TIRE TROUBLE-SHOOTING If you get a flat tire, remove the wheel and depress the tire valve to let all the air out of the tube. Malfunction Analysis of Malfunction Solution Remove one bead of the tire from the rim by grasping the tire at a point opposite the valve stem with both hands lifting and peeling one side of the tire off the rim. -
Page 11: Dealer Info & Purchase Record
DEALER INFO AND PURCHASE RECORD Fill in immediately and retain as a record of your purchase. Retain your sales receipt for any possible warranty claims* Your name: THANK YOU FOR CHOOSING Address: Date purchased: Place of purchase: Model & brand information: HAVE FUN AND RIDE SAFE! Wheel size: Color:...
