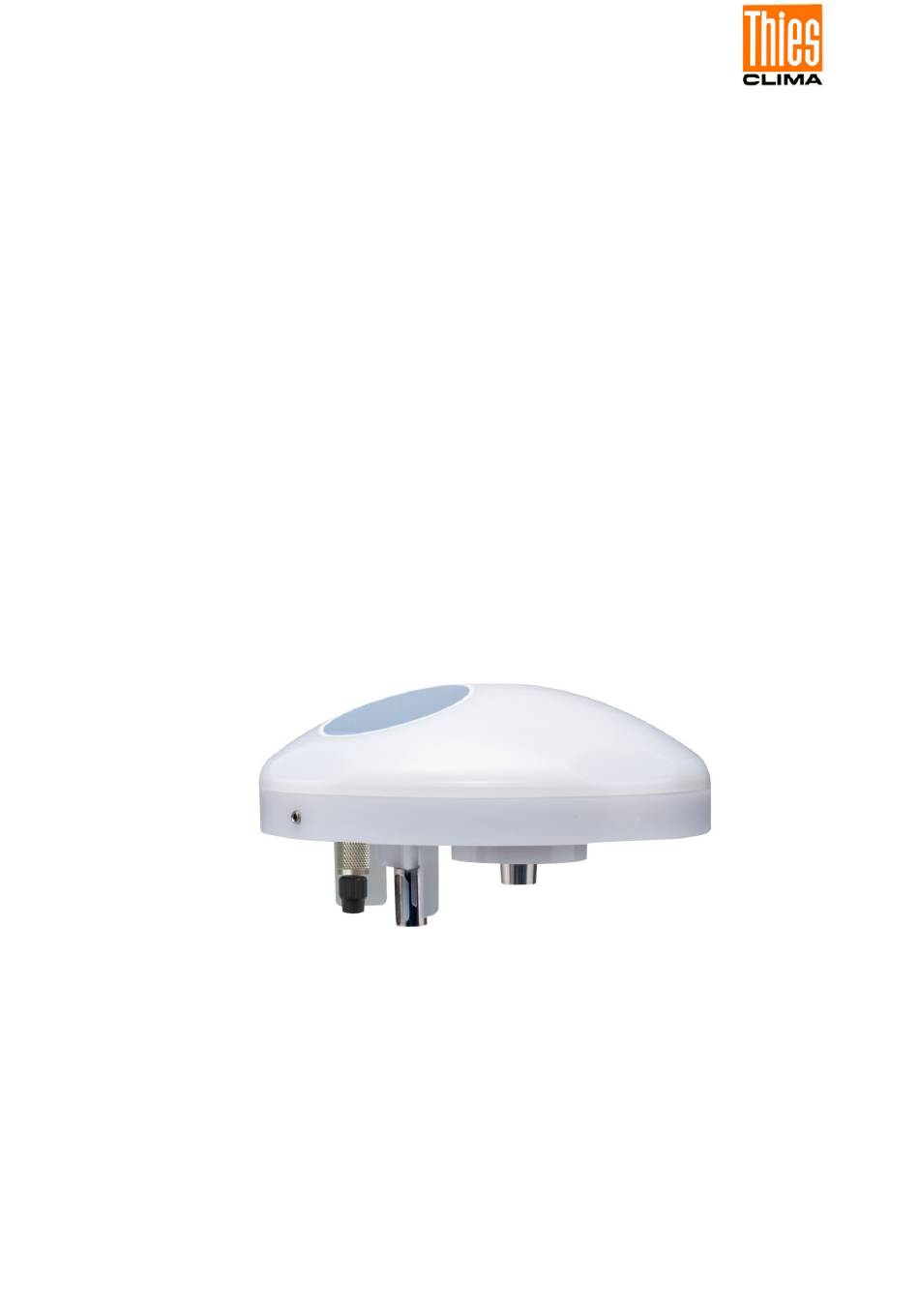

- Page 1 Weather Station Compact WSC11 Short - Instruction for Use 4.9056.10.00x, 4.9056.10.701, 4.9056.10.801 from software version V3.00 Status: 03/2021 Dok. No. 021948/10/21 T H E W O R L D O F W E A T H E R D A T A...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...
-
Page 3: Table Of Contents
These short instructions for use describe the installation of the instrument. The detailed in- structions allow users to modify the factory settings to their needs via the serial interface of the Weather Station Compact WSC11. Scope of supply 1 Weather Station Compact WSC11. -
Page 4: Device Versions
The working position of the COMPACT WSC11 Weather Station is horizontal (plug connection underneath). During installation, de-installation, transport or maintenance of the COMPACT WSC11 Weather Station make sure that no water gets into the de- vice and connector. 2.1 Selection of installation site An exposed position should be selected for this site. -
Page 5: North Alignment
Tool: Hexagon socket wrench SW2mm (socket wrench). Procedure: 1. Push cable/plug connection through the bore hole of the mast, tube, bracket etc. 2. Put WSC11 on mast, tube. 3. Align WSC11 to “north”. (Proce- dure see chapter 4.2.1). 4. Secure WSC11 by the M4- hexa- gon socket screw. -
Page 6: Electrical Mounting
2.3 Electrical Mounting The COMPACT WSC11 Weather Station is equipped with a 7-pin plug for electrical connec- tion. A cable socket (mating connector) is included in the scope of supply. - Page 7 Note: A prepared connecting cable is available for the COMPACT WSC11 Weather Station as an optional accessory. Cable socket, type: Binder, series 711 Attention: The voltage drop on the cable must be taken into consideration with long cable connections, ⁄ ; ρ (rho) = 0,018 * I;...
-
Page 8: Connecting Diagram
2.4 Connecting Diagram Order No. View of 7 pol. Binder Steckverb. / Plug solder terminal 4.9056.10.00x of mating connector (cable socket) 1 2 3 4 5 6 Schirm / Shield Erde Earth Versorgung Power 18 ... 30 VDC 18 ... 28 VAC * With long transmission paths connection to the GND of data acquisition may reduce their suscepti- bility to interference. -
Page 9: Connection Using 8-Core Cable 509584 / 509585 Optional Accessory
Please note: During storage, installation, de-installation, transport or maintenance of the COMPACT WSC11 Weather Station make sure that no water gets into the de- vice or connector. © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021948/10/21 Phone +49 551 79001-0 ·... -
Page 10: Led Signals
LED Signals On the underside of the COMPACT WSC11 Weather Station there are 2 LEDs which are ex- ternally visible through the housing. Figure 1: LED signals If the Weather Station does not receive a command to query measured values for 3 seconds or longer, the green LED flashes at a frequency of 1Hz and signals its readiness for opera- tion. -
Page 11: Specifications
5 Specifications Wind speed Type Thermal anemometer. Measuring range 0 … 40m/s Resolution 0.1m/s Accuracy To 10m/s: ±1m/s (rms - mean over 360°). From 10m/s: ±5% (rms - mean over 360°). Wind direction Type Thermal anemometer. Measuring range 1 … 360° Resolution 1°... - Page 12 Temperature Type PT1000 Measuring range -30 … +60°C Resolution 0.1°C Accuracy with wind speed ±1°C (-5 … +25°C) >2m/s Air pressure sensor Type Piezoresistive. Measuring range 300 … 1100hPa Resolution 0.01hPa Accuracy ±0.5hPa at 20°C Long-term stability ±0.1hPa / year Humidity sensor Type CMOS capacitive.
-
Page 13: Dimensional Drawing
General Operating voltage 18 ... 30VDC, 18 ... 28VAC Power consumption 120mA @ 24 V (max. 1,5A AC, max 0,5A DC) Ambient conditions Temperature range -30 ... +60°C Humidity range Non-condensing GPS reception GPS receiver with low power consumption, built-in RTC and antenna Holding time of RTC (without Approx. -
Page 14: More Information / Documents As Download
7 More Information / Documents as download Further information can be found in the short instructions for use. These document and also the short instruction for use are available for download under the following links. Short instruction for use https://www.thiesclima.com/db/dnl/4.9056.10.x0x_WSC11_eng_short.pdf Instruction for Use https://www.thiesclima.com/db/dnl/4.9056.10.x0x_WSC11_eng.pdf Please contact us for your system requirements.
