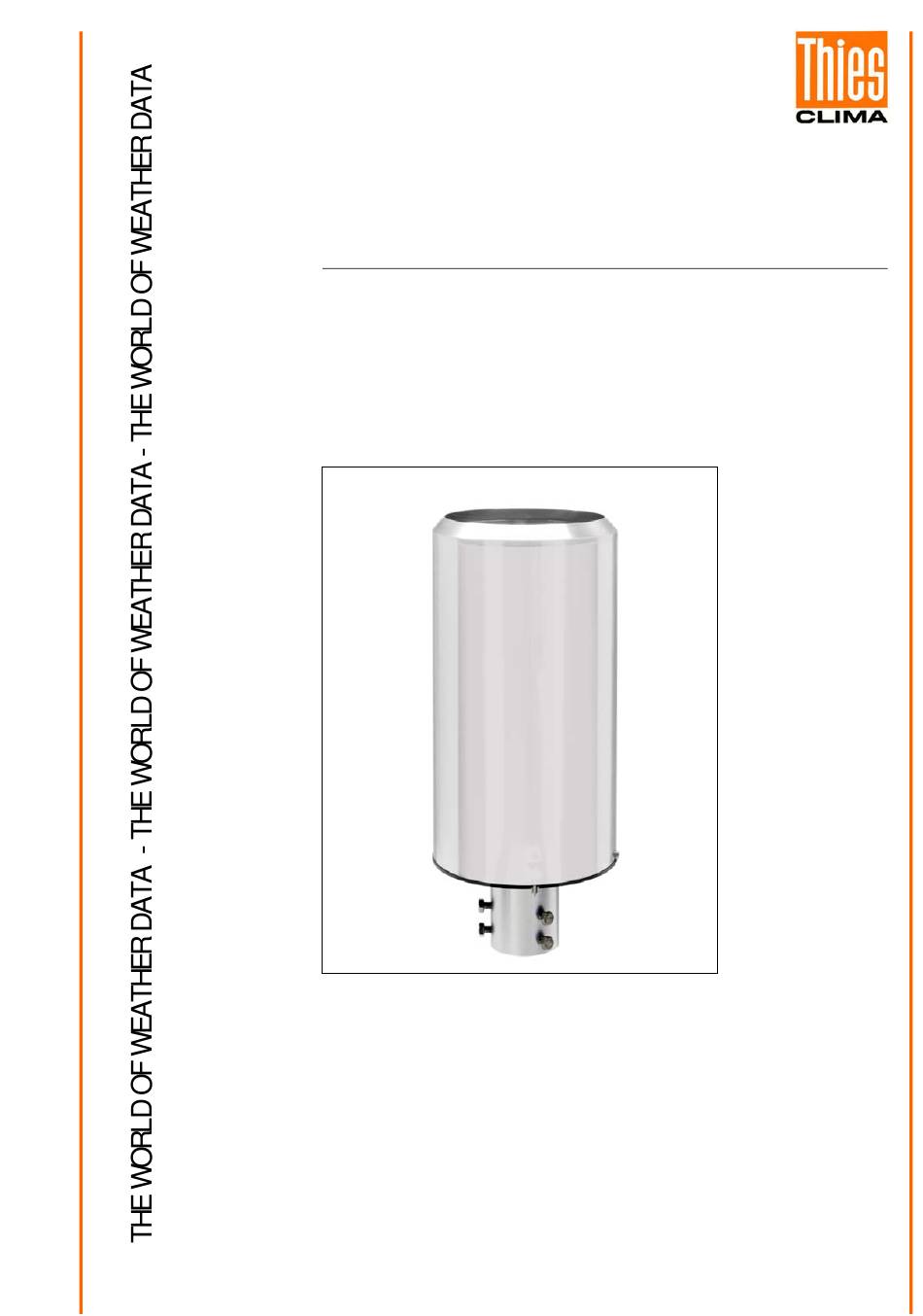

- Page 1 Instruction for Use 021326/05/10 Precipitation Transmitter 5.4033.35.xxx / 5.4033.36.xxx ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - Endangering of persons by electrical or mechanical effect - Damage to objects •...
-
Page 3: Table Of Contents
Contents Models available ........................4 Application ..........................4 Mode of Operation ........................4 Description Electrical Output...................... 5 Output 1: Analogue Output....................5 4.1.1 Signal Processing ......................5 Output 2: Pulse Output......................6 Recommendation Site Selection / Standard Installation ............7 Installation.......................... -
Page 4: Models Available
1 Models available Order-No. Heating Supply Analogue - Output Meas. range 5.4033.35.040 24 V AC/DC 0…20 mA (max. 500 ohm) 0…10 mm * 5.4033.35.041 24 V AC/DC 4…20 mA (max. 500 ohm) 0…20 mm 5.4033.35.061 24 V AC/DC 0…10V 0…25 mm 5.4033.35.073 24 V AC/DC 0…5V... -
Page 5: Description Electrical Output
For information: A precipitation height of 1 mm corresponds to a water volume of 1 litre on 1 m² ground area. 4 Description Electrical Output 4.1 Output 1: Analogue Output The measured precipitation value is available at the analogue output in the form of electrical output signals (see chapter 1). -
Page 6: Output 2: Pulse Output
overflow n=101 ext. Reset n bucket Figure 1: accumulating precipitation sum e.g. m.r. = 10mm / 5V / continuous precipitation ext. Reset gliding- precipitation sum Gliding period gliding period Figure 2: gliding precipitation sum Updating Time With gliding Period every 25 sec. 10 Min. -
Page 7: Recommendation Site Selection / Standard Installation
5 Recommendation Site Selection / Standard Installation Depending on the wind velocity, a certain amount of the precipitation particles are blown away over the deposit area. Therefore, an installation in a completely open area as well as at the direct lee- side of an object is to be avoided. - Page 8 Tools Required: - Wrench, wrench width13 - Allen wrench, wrench width 3 Installation is carried out as follows (see also Figure 1) 1. Remove the precipitation transmitter from the box. 2. Remove the small box from the collecting funnel of the housing (1). Unpack tipping bucket (7) and filter (12) and put them aside.
- Page 9 cram (15) filter (14) collector(13) filter (12) knurled screw (11) magnet (10) nozzle (9) housing (1) pc- board (8) tipping bucket (7) pan (6) level- indicator (5) screw (2) base (3) screw (4) 9 - 18 021326/05/10...
-
Page 10: Electrical Mounting
6.2 Electrical Mounting • Please solder a cable (for ex.. LiYCY 0,5 mm² ) to the attached connecting plug acc. to the respective connecting diagram (see also chapter 9). • Plug-mounting see chapter 6. Remark: Connections 6 and 7 are not used by the connecting plug at the model without heating. -
Page 11: Connecting Diagram
6.3 Connecting Diagram Order No. Order No. 5.4033.35.040 5.4033.36.040 5.4033.35.041 5.4033.36.041 5.4033.35.061 5.4033.36.061 View on the 5.4033.35.073 5.4033.36.073 soldered joint of the counter plug. Analog Analog Heizung Heating 7 pol. Steckverb. / Plug 7 pol. Steckverb. / Plug 1 4 5 6 7 1 4 5 6 7 Schirm Schirm... -
Page 12: Figure 3: Dip- Switch
DIP-Switch (6-pole) DIP-Switsch (6-pole) Black Design Red Design OPEN 1 2 3 4 5 6 1 2 3 4 5 6 CLOSED PC-board Figure 3: DIP- switch DIP-Switch, black design DIP-Switch, red design Measuring Range DIP-switch 1 DIP-switch 2 DIP-switch 1 DIP-switch 2 10 mm * CLOSED... -
Page 13: Maintenance
8 Maintenance Attention: The electrical connection is to be carried out by experts only. Please open the instrument only with dry ambient conditions. Do not damage the exposed electronics! Attention: - Do not use any benzene, alcohol, or other cleansing agents. - Never treat the inner surfaces of the tipping bucket with emery paper or something similar. -
Page 14: Check Of The Tipping Bucket
6. Remove the tipping bucket (7) carefully from the pan (6). 7. Clean the inner surfaces with clear water, if heavily soiled (grease) also with gentle soap water. For this, please use a soft brush. 8. In case of heavy pollution please clean also the pan (6). 9. -
Page 15: Dimensional Drawing
Dimensional Drawing Description TYPE Unit General Collecting surface Volume of tipping bucket Measuring range mm/min Resolution mm NS Accuracy (within the range of 0.. 11 mm/min) ± 3 * Ambient temperature (w/o heating) °C Ambient temperature (with heating) - 25 °C ∅mm Mounting on stand pipe (1 ½“) -
Page 16: Connection Diagram
* The accuracies were determined under laboratory conditions Test medium: destilled water. Test volume: 200cm = 10mm precipitation = 100 tipping bucket pulse 10 mm precipitation per minute corresponds to a quantity of 600 litre per hour. (General: A precipitation height of 1 mm corresponds to a water volume of 1 litre on 1 m² ground area) 10 Connection Diagram Ø... -
Page 17: Ec-Declaration Of Conformity
12 EC-Declaration of Conformity Document-No.: 000901 Month: 05 Year: 10 A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: Precipitation Transmitter Article No. - Page 18 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 18 - 18 021326/05/10...
