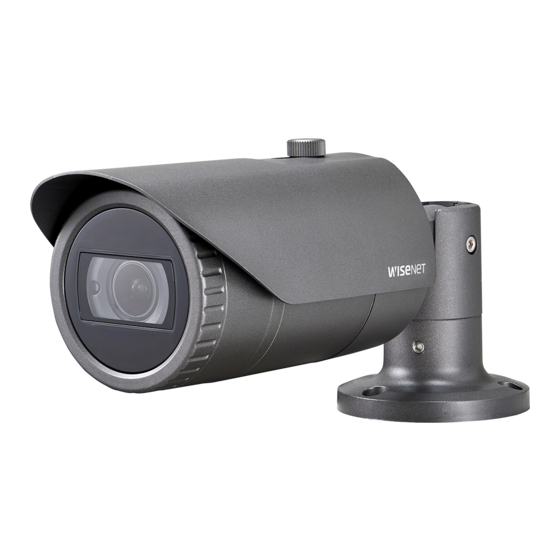

Wisenet HCO-6080R User Manual

High resolution weatherproof ir camera
Hide thumbs

Advertisement

Quick Links

Download this manual
High Resolution Weatherproof
IR Camera
User Manual
HCO-6080R

Advertisement

loading
Need help?

Need help?

Do you have a question about the HCO-6080R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wisenet HCO-6080R

Summary of Contents for Wisenet HCO-6080R

  • Page 1 High Resolution Weatherproof IR Camera User Manual HCO-6080R...
  • Page 2 High Resolution Weatherproof IR Camera User Manual Copyright ©2017 Hanwha Techwin Co., Ltd. All rights reserved. Trademark Each of trademarks herein is registered. The name of this product and other trademarks mentioned in this manual are the registered trademark of their respective company. Restriction Copyright of this document is reserved.
  • Page 3 Before operating the camera, confirm the camera model and correct input power voltage. To help you understand this manual thoroughly, we'll introduce our model description. ■ HCO-6080R SERIES • NTSC MODEL • PAL MODEL HCO-6080R HCO-6080RP ■ MODEL DESCRIPTION • HCX-6080RX _ SIGNAL SYSTEM • SIGNAL SYSTEM...
  • Page 4 safety information CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
  • Page 5 6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on top of the camera. doing so may cause personal injury due to fire, electric shock, or falling objects. 7. Do not install the unit in humid, dusty, or sooty locations. doing so may cause fire or electric shock.
  • Page 6 safety information FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : 1) This device may not cause harmful interference, and 2) This device must accept any interference received including interference that may cause undesired operation.
  • Page 7 important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.
  • Page 8 important safety instructions 17. Do not install the product in a place where chemical substances or oil mist exists or may be generated. As edible oils such as soybean oil may damage or warp the product, do not install the product in the kitchen or near the kitchen table. This may cause damage to the product.

  • Page 9: Table Of Contents

    contents INTRODuCTION Features Components and Accessories Component names and functions CONNECTION Connecting to Monitor Connecting to Power Using Coaxial Communications CAMERA OPERATION Menu Configuration Menu Setup TROubLESHOOTING Troubleshooting SPECIFICATIONS Specifications Dimension English_9...

  • Page 10: Introduction

    introduction FEATuRES y High Resolution Use of a 2.1 mega pixel CMOS device provides clear pictures with a resolution of 1920x1080. y Excellent Sensitivity - Color : 0.11Lux (F1.6, 1/30sec) B/W : 0Lux(IR LED on) y SSNR4 Function High performance DSP Chip removes noises of GAIN resulting from the low light level and shows a vivid, high definition video even in the dark place.
  • Page 11 COMPONENTS AND ACCESSORIES Check if the following items are included in the product package. Camera Quick Manual Screws Card-type moisture Template Wrench absorbent Video Output Cable English_11...
  • Page 12 introduction COMPONENT NAMES AND FuNCTIONS Front Camera Sunshield Knob Sunshield : Fixing the sunshield onto the camera. Front cover Function Setup Switch : Display the menu on the screen and move the cursor to four directions to confirm status or after changing a selected item. ...
  • Page 13 back Function jack (ALARM OUT, GND) VIDEO OUTPUT jack : Video signals are output through this port. Connect this port to the Video IN port of a AHD DVR. Power input terminal : Connect the power as specified for each model here. English_13...

  • Page 14: Connection

    connection CONNECTING TO MONITOR Connect the Video OUT port on the rear panel of the camera to a AHD DVR. ALARM NETWORK BACKUP POWER AHD DVR Monitor y As the connecting method varies with the instruments, refer to the manual supplied with the instrument.
  • Page 15 When the resistance value of copper wire is at [20°C(68°F)] Copper wire size (AWG) #24 (0.22mm #22 (0.33mm #20 (0.52mm #18 (0.83mm Resistance value(Ω/m) 0.078 0.050 0.030 0.018 Voltage Drop (V/m) 0.028 0.018 0.011 0.006 y As shown in the table above, voltage decreases as the wire gets longer. Therefore use of an excessively long adaptor output line for connection to the camera may affect the performance of the camera.
  • Page 16 connection : BNC ● - Video Cable The camera's video output port is connected to the DVR with a BNC coaxial cable, shown below. Recommended Cable Distance Specification 500m 5C2V It is recommended that pure copper coax cable is used and not copper coated steel, as this will cause issues with the communication over the coaxial cable.
  • Page 17 camera operation MENu CONFIGuRATION MAIN SETuP ◦ ◦ ◦ VIDEO FORMAT ◦ CVBS ◦ ◦ ◦ BASIC DAY/NIGHT BACKLIGHT PROFILE ◦ ◦ ◦ INDOOR USER ◦ ◦ ◦ INDOOR OUTDOOR WHITE BAL ◦ ◦ AWC → SET MANUAL ◦ ◦ ◦...

  • Page 18: Camera Operation

    camera operation MAIN SETuP  1. VIDEO FORMAT Select the Change the status 2. PROFILE function using bASIC using the Function the Function 3. wHITE bAL Setup switch. Setup switch. 4. EXPOSuRE 5. bACKLIGHT 6. SPECIAL 7. SIMPLE FOCuS 8. EXIT SAVE 1.
  • Page 19 PROFILE 1. When the SETUP menu screen is MAIN SETuP displayed, select ‘PROFILE’ by using 1. VIDEO FORMAT the Function Setup switch so that the  2. PROFILE bASIC arrow indicates ‘PROFILE’ . 3. wHITE bAL 2. Select a desired mode using the 4.
  • Page 20 camera operation white bal (white balance) Use the White Balance function to adjust the screen color. 1. When the SETUP menu screen is MAIN SETuP displayed, select ‘White Bal’ by using 1. VIDEO FORMAT the Function Setup switch so that the 2.
  • Page 21 EXPOSuRE 1. When the SETUP menu screen is displayed, select ‘EXPOSURE’ by using the Function Setup switch so that the arrow indicates ‘EXPOSURE’ . 2. Select a desired mode using the EXPOSuRE SETuP Function Setup switch.  bRIGHTNESS IIIIIIIIII IIIIIIIIII y bRIGHTNESS : Adjusts the video LENS brightness.
  • Page 22 camera operation y AGC (OFF/LOw/MIDDLE/HIGH/VERY HIGH) : The higher the gain level, the brighter the screen - but the greater the noise. y SSNR4 : This function reduces the background noise in a low luminance environment. - OFF : Deactivates SSNR4. Noise is not reduced. - ON : Activates SSNR4 so that noise is reduced.
  • Page 23 y HLC (High Light Compensation) : This function masks the strong light to minimize HLC SETuP white out due to over exposure and preserve much ▶ LEVEL M I D D L E of the on-screen details when the camera aims a LIMIT NIGHT ONLY strong light source.
  • Page 24 camera operation SPECIAL 1. When the SETUP menu screen is MAIN SETuP displayed, select ‘SPECIAL’ by using 1. VIDEO FORMAT the Function Setup switch so that the 2. PROFILE bASIC arrow indicates ‘SPECIAL’ . 3. wHITE bAL 2. Select a desired mode using the 4.
  • Page 25 - FONT COLOR : You can change the OSD font color. (White, Yellow, Green, Red, Blue) - LANGUAGE : You can select the menu language according to your requirements. - RETURN : Return to the SPECIAL menu. y COAX : You can select whether to use COAX communication. y IMAGE ADJ ❶...
  • Page 26 camera operation y DAY/NIGHT: You can display pictures in color or in black and white. If the SPECIAL menu screen is displayed, use the Function Setup switch so that ➊ the arrow indicates ‘DAY/NIGHT’. Select a desired mode using the Function Setup switch according to the picture ➋...
  • Page 27 y DEFOG : You can use the defog mode to allow the camera to automatically detect the fog density of the screen and display a clear image despite smog, fog or general poor visibility. If the SPECIAL menu screen is displayed, use the Function Setup switch so that the ➊...
  • Page 28 camera operation y MOTION : This product generates signals each time an object movement is detected in the four areas of the screen so efficient monitoring can be achieved. If the SPECIAL menu screen is displayed, use the Function Setup switch so that the arrow ➊...
  • Page 29 - If there is little movement near the screen edge - If multiple movements keeps occurring randomly, such as scene switching or sudden light changes - If an object fixed in the same location keeps moving - Moving away from the camera or approaching the camera. Little location change on the screen.
  • Page 30 camera operation Holding Function Setup switch 2 seconds, simple focus would be performed. The simple focus function may not work well in the following cases. - Low illumination environment - Changing scene during focus adjustment (sudden movement, appearance or disappearance) - Sudden change of brightness during focus adjustment - Strong spot light in front of or near the subject In environments where focus adjustment is difficult, use the manual focus function.

  • Page 31: Troubleshooting

    troubleshooting TROubLESHOOTING If you have trouble operating your camera, refer to the following table. If the guidelines do not enable you to solve the problem, contact an authorized technician. Problems Troubleshooting Nothing appears on the screen. y Check that the power cord and line connection between the camera and monitor are properly connected.

  • Page 32: Specifications

    specifications SPECIFICATIONS HCO-6080RN/HCO-6080RP Video Imaging Device 1/2.8” 2M CMOS Total Pixels 1,945(H) x 1,109(V) 2.16M pixels Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels Scanning System Progressive Scan Color : 0.11Lux (F1.6) (30IRE) Min. Illumination B/W : 0Lux(IR LED on) S / N Ratio 52dB (AGC off, Weight on) Video Output BNC(AHD / TVI / CVI / CVBS Selectable)
  • Page 33 HCO-6080RN/HCO-6080RP white balance ATW / Outdoor / Indoor(4,500K° ~ 8,500K°) / Manual / AWC (1,800K° ~ 10,500K°) Electronic Shutter Speed 1 sec ~ 1/12,000 sec Reverse Off / H-Rev / V-Rev / HV-Rev Profile Basic, Day & Night, Backlight, ITS, Indoor, User Alarm MD output 1 Remote control interface...

  • Page 34: Dimension

    DIMENSION Unit: mm (inch) 34_ specifications...
  • Page 35 MEMO...
  • Page 36 Head Office 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...

This manual is also suitable for:

Hco-6080r seriesHco-6080rnHco-6080rp
