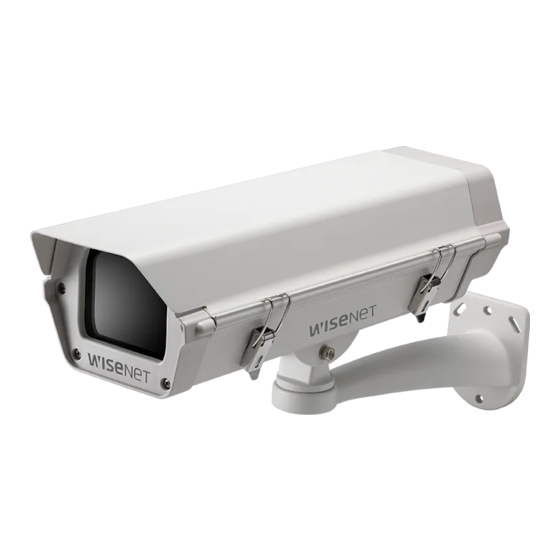

- Page 1 BOX CAMERA HOUSING User Manual SHB-4200 SHB-4200H...
- Page 3 7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock. 8. if any unusual smells or smoke come from the unit, stop using the product. in such case, immediately disconnect the power souroe and contact the service center. Continued use in such a condition may cause fire or electric shock.
- Page 7 1. Safety Instructions …………… 1 2. Product Overview …………… 1 3. Features …………… 2 4. Product Specifications …………… 3, 4 5. exterior …………… 5 6. Installation …………… 6 7. Installing the bracket …………… 7...
-
Page 8: Safety Instructions
1. Safety Instructions The safety instructions below are prepared to avoid physical or monetary damage from an accident, so please read carefully and follow them. Do not install the product in a place that contains salt or produces the sulphurous gas. Do not insert metal objects or inflammable substances inside. - Page 9 3. Features This product is a 14" camera housing that is designed to guarantee that the outdoor CCTV camera is installed securely for stable operation. Firm and secure with the semi-permanent material, it is designed to be in harmony with the surrounding environment and to help the CCTV camera operate stably regardless of the dirt that may accumulate in the installation site and the weather condition.
-
Page 10: Product Specifications
. Product Specifications 1. Model Name : SHB-4200 2. Purpose : Outdoor Housing 3. Product Name : CAMERA HOUSING 4. Features : Dustproof, Sealed 5. Material : Body – Aluminium AL A6063. Front, Rear – ABS Incombustible 6. Use Condition : -15 ~ +45 7. - Page 11 Product Specifications 1. Model Name : SHB-4200H 2. Purpose : Outdoor Housing 3. Product Name : CAMERA HOUSING 4. Features : Dustproof, Sealed 5. Material : Body – Aluminium AL A6063. Front, Rear – ABS Incombustible 6. Use Condition : -35 ~ +50 7.
- Page 12 exterior • Body • Front, Rear • Mount Base...
-
Page 13: Installation
6. Installation • Wiring Diagram (SHB-4200H) • How to connect the BNC connector 1) Insert the cable to the cable gland from outside of the product and connect it to the terminal block. 2) Connect the BNC connector to the cable and insert it to the cable gland from inside. - Page 14 7. Installing the bracket and the cushion pad Location with cushion pad * Depending on the size of the camera, the location of the cushion pads may vary.
