Pop-up
Changing Room
assembly instructions
PLEASE READ THIS INSTRUCTION BEFORE ASSEMBLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pop-up and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Overland Vehicle Systems Pop-up

Summary of Contents for Overland Vehicle Systems Pop-up

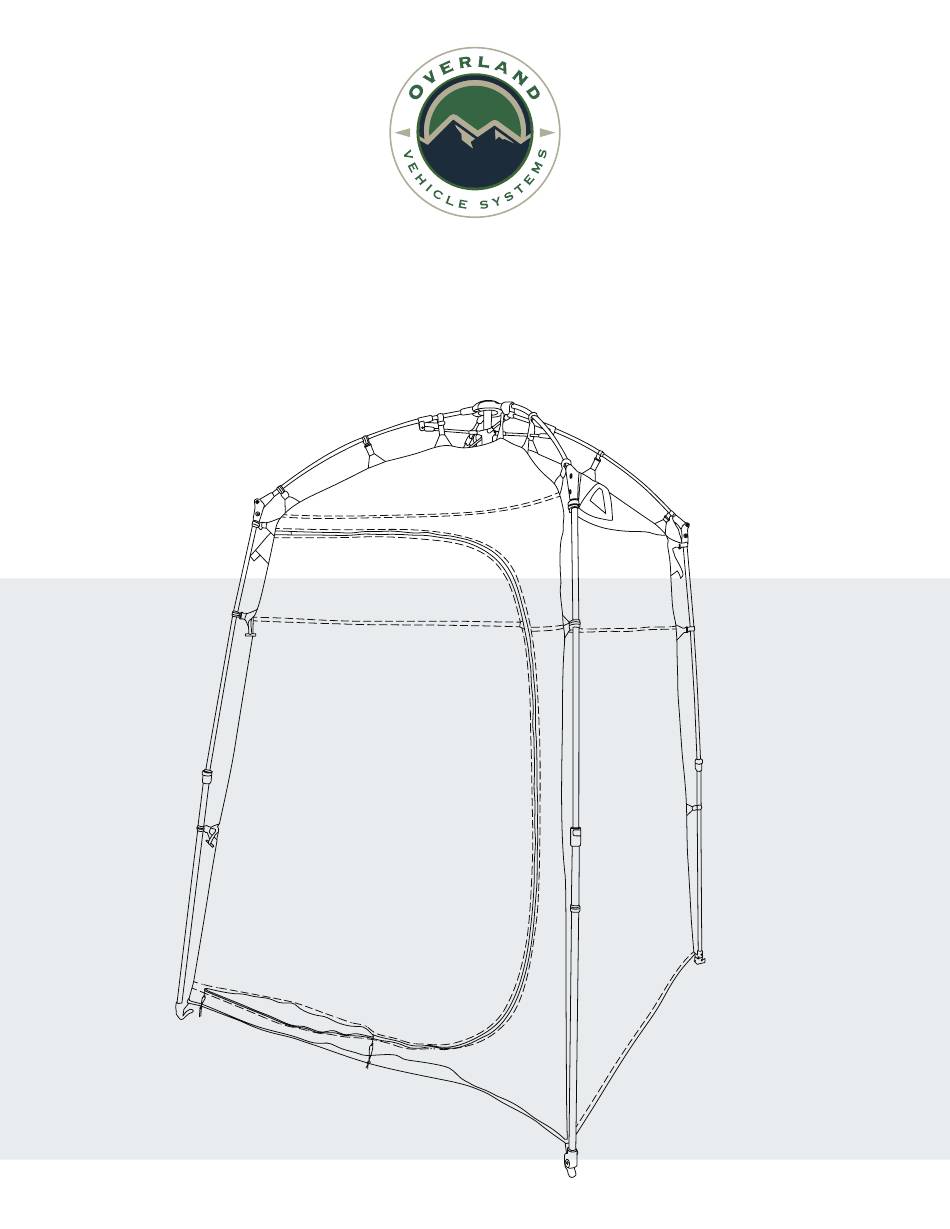

  • Page 1 Pop-up Changing Room assembly instructions PLEASE READ THIS INSTRUCTION BEFORE ASSEMBLY...
  • Page 2 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS ASSEMBLY 1. Lay changing room flat on floor with center pointing upward. Then bring arms out till the top is formed. 2. Pull hub together make sure that it locks.
  • Page 3 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS 3. Tie loop under hub. 4. Expand telescoping legs and click to secure. 5. Clip fabric to tent frame. PULL UP PRESS HERE...
  • Page 4 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS 6. Use provided stakes, then secure the shower with guide ropes. 7. Set up Solar Shower by first attaching the hose to the shower spigot with provided zip tie, then trim as needed.
  • Page 5 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS 8. Secure nozzle so that water does not pour out when filling with water. 9. Twist nozzle to adjust water flow when in use. 10. Undo cap and fill with water, then secure.
  • Page 6 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS 13. Clip in and secure shower bag using the 4 clips on the roof of the shower. TAKE DOWN 1. Unhook the shower bag, drain any remaining water and store in carrying bag.
  • Page 7 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS 2. Remove stakes and guide ropes. Unclip tent fabric and collapse the telescoping legs. PRESS HERE PULL DOWN 3. Unfasten loop under hub. 4. Unlock hub. Unlocked...
  • Page 8 POP-UP CHANGING ROOM Full Kit: 26019910 SET-UP & CARE INSTRUCTIONS 5. Lay fabric corners inward to the center pole. HOW TO FOLD UP 1. Fold all corners inward 2. Lay fabric flat 3. Fold fabric over 4. Store in bag...
  • Page 9 G- GUIDE ROPES X4 H- TRANSPORT BAG X1 + In a moving vehicle, always store the Pop-Up Changing room inside its traveling bag on the floor of the vehicle, either behind the 1st row of seats or behind the 2nd row of seats.
