Summary of Contents for Hoshizaki FM-AKE Series

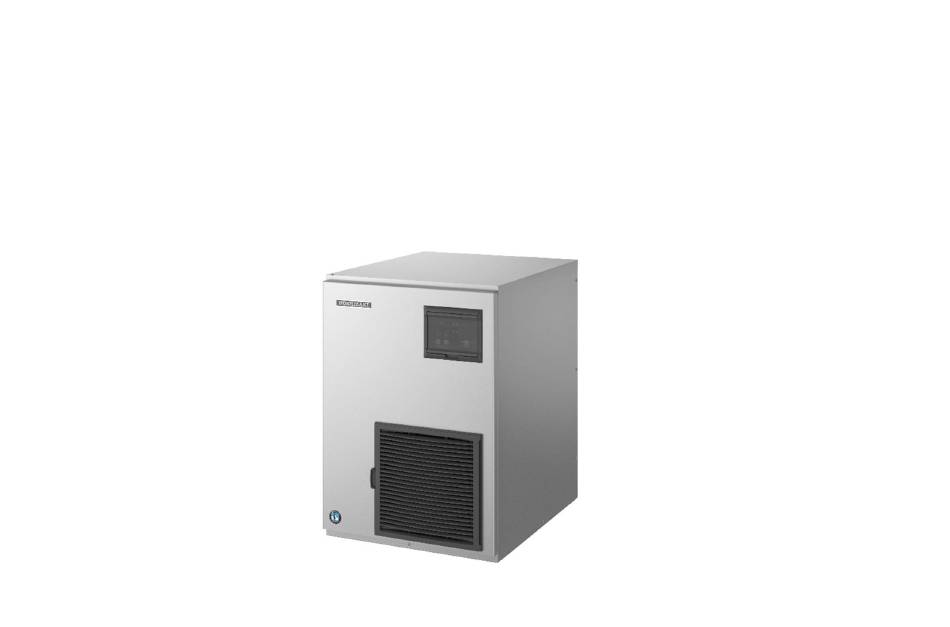

- Page 1 FM-AKE Series Bags Replacement Rev. 01 : 17 Aug.2021...
- Page 2 1 Replacement Disconnect power supply Screwdriver Diagonal Cable tie Tube Plastic bag pliers 4X1559‐07 Before work, unplug the Rev. 01 power cord for safety. 3 How to access 1) Remove front and top panel.
- Page 3 4 Location of Bags *Refer to the following pages about “Wiring protection methods” and “Number of bags” 1) Locate bags and replace with tubes, one by one and 2) Locate bags on base next to compressor. fix with cable tie. Do not take all bags off at once. Picture_A 3) Re fit control box cover and front panel.
- Page 4 6 Reference. Wiring protection methods a. In the case of using “new bag” Note : If you can not have new bags, Please choose method “b” or “c”. 4X1559‐07 Tie the bag with a Put the terminals inside new bag. cable tie.(150mm) Rev.
- Page 5 6 Reference. Wiring protection methods c. In the case of using “tubes” Prepare UL tube. Put the tube over the Fold the tube in half. And Put the terminal terminals and bind the *If the tube is too inside the tube. bottom of the tube with long, cut it.
- Page 6 7 Reference. Number of Bags 1) Please refer to the table below to find out which models are covered, where the bags are located and how many there are. * Please Note * For any model, If you find the amount of bags to be less than what is on this table, then please fit missing bag(s) to locations pictured in “4.Location of bags”...
