Summary of Contents for Mikroe PICPLC16 V7A

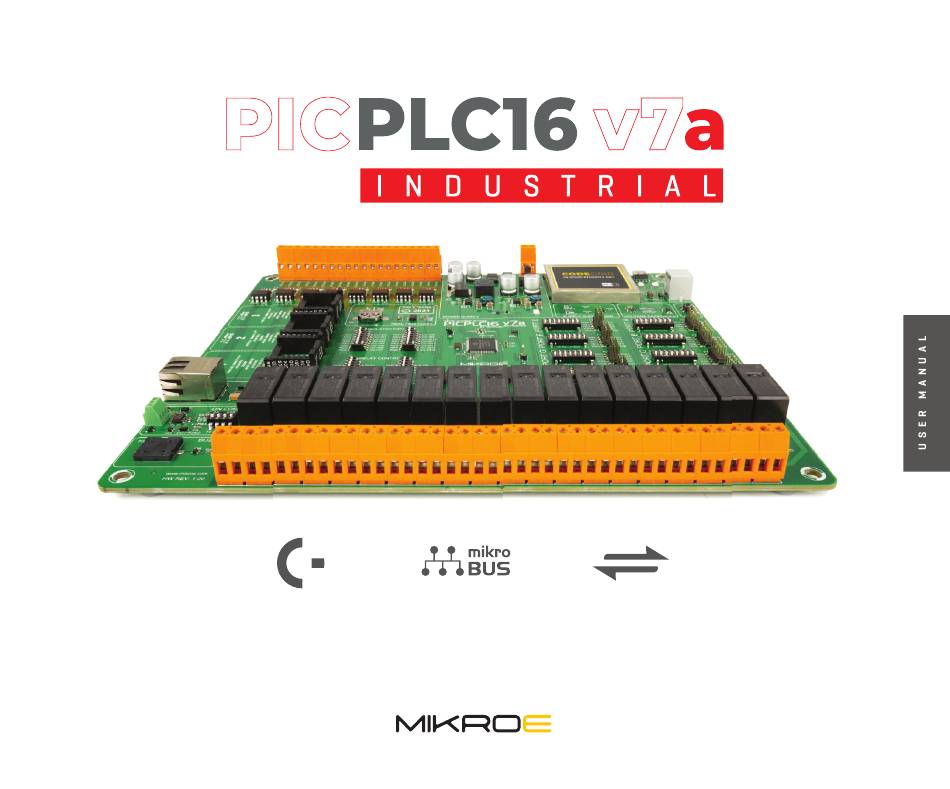

- Page 1 POWER CODEGRIP mikroBUS AMAZING ISOLATED ™ RELAYS ON BOARD SOCKETS CONNECTIVITY INPUTS...
- Page 3 Thank you for being our valued customer! From day one, we at MikroElektronika are committed to changing the embedded electronics industry through the use of industry standard hardware and software solutions. We are excited to have the opportunity to present you the NEW generation of our flagship development board –...
- Page 4 Time-saving embedded tools...
-
Page 5: Table Of Contents
Table of contents Introduction Communication Introduction Ethernet It's good to know LIN Communication Power supply unit Connectivity Power supply mikroBUS sockets ™ How to power the board? Click boards ™ INPUT/OUTPUT group Programmer/debugger Modules On-board programmer Real Time Clock What is the CODEGRIP? Magnetic Buzzer Where to start? Relays and Octocouplers... -
Page 6: Introduction
INTRODUCTION The PICPLC16 v7a development system provides a development environment for experimenting with industrial devices. With 16 opto- inputs and 16 relays (for currents up to 16A), you can develop PIC-based industrial, home or office automation devices the easy way. -
Page 8: It's Good To Know
PIC 18F9 7 J6 0 is th e on -b o a rd mi c ro c ont ro ller ! PIC18F97J60 is the on-board chip of PICPLC16 v7a. It has operating frequency up to 42 MHz, 128K bytes of flash memory, and 4K RAM memory. -
Page 9: Power Supply
POWER SUPPLY The PICPLC16 v7a development system is connected to the power supply source via the TB1 connector. The power supply voltage can be either DC or AC. A DC power supply voltage can be in the range of 9V to 32V, whereas the AC power supply voltage can Figure 1: Power range between 7V and 23V. -
Page 10: How To Power The Board
HOW TO POWER THE BOARD? The PICPLC16 v7a development board is powered with POWER SUPPLY: POWER CAPACITY: Via screw terminal (7V to 23V AC or Up to 500mA with USB, and external power supply source. Make sure the power supply... -
Page 11: On-Board Programmer
USB Type A/B connectors. PICPLC16 v7a development board is supported by a powerful CODEGRIP Suite, offering complete control over the development board. It is used to intelligently manage programming and debugging tasks, and to configure various other options and settings, providing visual feedback through its clean and comprehensive Graphical User Interface (GUI). -
Page 12: Programming With Icd2/Icd3
PROGRAMMING WITH ICD2/ICD3/ICD4 PICPLC 16 v7a is equipped with RJ-12 connector compatible with Microchip ICD2, ICD3, and ICD4 external programmers. You can either ® use the on-board CODEGRIP programmer or external programming tools as long as you use only one of them in the same time. Insert your ICD programmer cable into connector CN9, as shown in image. -
Page 13: Ethernet
This makes the Ethernet protocol very popular for communication over longer distances or in noisy environments. The PICPLC16 v7a features standard RJ-45 Ethernet connector to establish a connection with a personal computer, network router, or other Ethernet network device. PIC18F97J60 MCU feature an embedded Ethernet controller module. -
Page 14: Lin Communication
It effectively supports remote application within a car's network. The LIN Bus is particularly intended for mechatronic nodes in distributed automotive applications, but is equally suited to industrial applications. The PICPLC16 v7a utilizes the MCP2003B, it provides a physical interface to automotive and industrial LIN systems, in accordance to the LIN Bus Specifications Revision 2.2, SAE J2602 and ISO 17987. -
Page 15: Mikrobus ™ Sockets
™ is the add-on board standard that offers maximum expandability with the smallest number of pins. More information at www. mikroe.com/mikrobus mikroBUS™ SOCKET IN DETAIL All the mikroBUS sockets are now redesigned and improved. They ™ became much sturdier, allowing a better grip of the Click board . -
Page 16: Click Boards
They enhance rapid development and accelerate time to market. These ready- to-use boards require no additional hardware configuration. More information at www.mikroe.com/click CODE EXAMPLES It's easy to get your Click board ™... -
Page 18: Input/Output Group
Figure 9: MIDDLE POSITION disables much to the connectivity potential of the There are eight PORTs on the PICPLC16 v7a Tri-state DIP both pull-up and pull-down feature development board, labeled from PORTA to PORTH. The PORTs are located along the... -
Page 19: Real Time Clock
Real-Time Clock (RTC) A real-time clock is widely used in alarm devices, industrial controllers, consumer devices etc. An external real-time clock peripheral module (RTC) in combination with the button cell battery allow continuous tracking of time, even if the main power supply is OFF. -
Page 20: Relays And Octocouplers
RELAYS AND OPTOCOUPLERS Industrial devices usually utilize more power than the In addition to relays, the development system also features microcontroller can provide via its I/O ports. To enable optocouplers, the function of which is to galvanically isolate the microcontroller to be connected to such devices, the signals brought to the microcontroller inputs from industrial development system is provided with 16 relays by means of devices. -
Page 21: Additional Gnds
ADDITIONAL GNDs PICPLC16 v7a contains two GND pins located in the center of the board, which allow you to easily connect oscilloscope GND reference when you monitor signals on microcontroller pins, or signals of on-board modules. GND pin located near the MCU and mikroBUS™... - Page 22 What’s Next? You have now completed the journey through each and every feature of the PICPLC16 v7a development board. You have become familiar with its modules, organization, and the programmer/debugger. Now you are ready to start using your new board. We suggest following steps which are highly recommended to begin with.
- Page 23 D I S C L A I M E R All the products owned by MikroElektronika are protected by copyright law and international copyright treaty. Therefore, this manual is to be treated as any other copyright material. No part of this manual, including product and software described herein, must be reproduced, stored in a retrieval board, translated or transmitted in any form or by any means, without the prior written permission of MikroElektronika.
- Page 24 If you want to learn more about our products, please visit our website at www.mikroe.com If you are experiencing some problems with any of our products or just need additional information, Time-saving embedded tools please place your ticket at www.mikroe.com/support If you have any questions, comments or business proposals, please contact us at office@mikroe.com...
