Mikroe click Proximity 2 Manual

Proximity 2 click

1. Introduction

Proximity 2 click™ features MAX44000, an
IC that integrates a proximity as well as an
ambient light sensor. The light sensor has
a dynamic range of 0.03 to 65.535 lux. The
IR proximity detector is matched with an
integrated IR LED driver (for the onboard
high power infrared LED). The detecting
range is Proximity 2 click™ communicates
with the target board microcontroller
through mikroBUS™ I2C (SCL, SDA), and
INT lines. It's designed to use a 3.3V power
supply only.

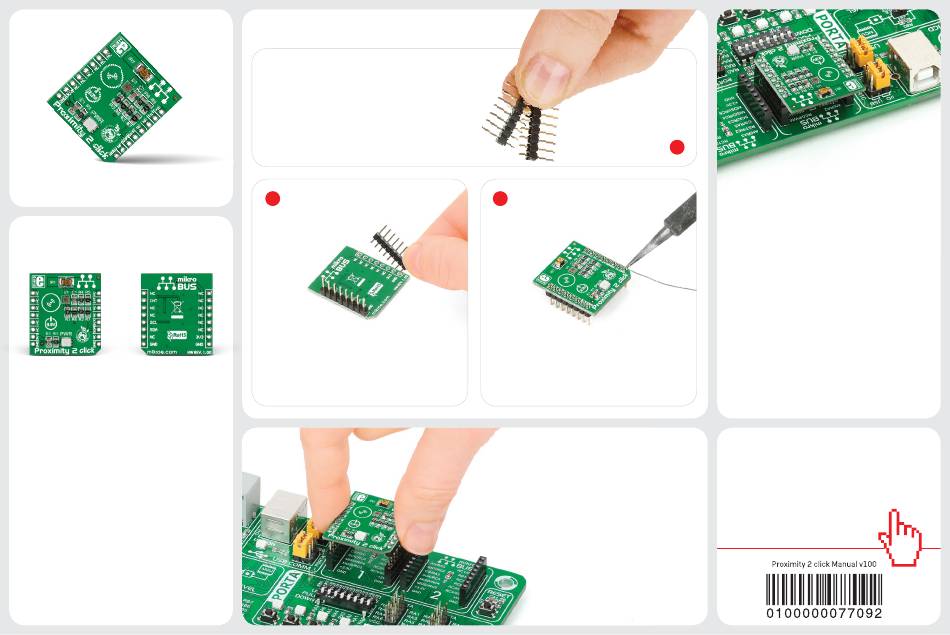

2. Soldering the headers

Before using your click ™ board, make sure
to solder 1x8 male headers to both left and
right side of the board. Two 1x8 male headers
are included with the board in the package.
™
2
Turn the board upside down so that
the bottom side is facing you upwards.
Place shorter pins of the header into the
appropriate soldering pads.
1
3
Turn the board upward again. Make sure
to align the headers so that they are
perpendicular to the board, then solder the
pins carefully.

3. Plugging the board in

Once you have soldered the headers your
board is ready to be placed into the desired
mikroBUS socket. Make sure to align the
™
cut in the lower-right part of the board with
the markings on the silkscreen at the
mikroBUS socket. If all the
™
pins are aligned correctly,
push the board all the way
into the socket.

4. Essential features

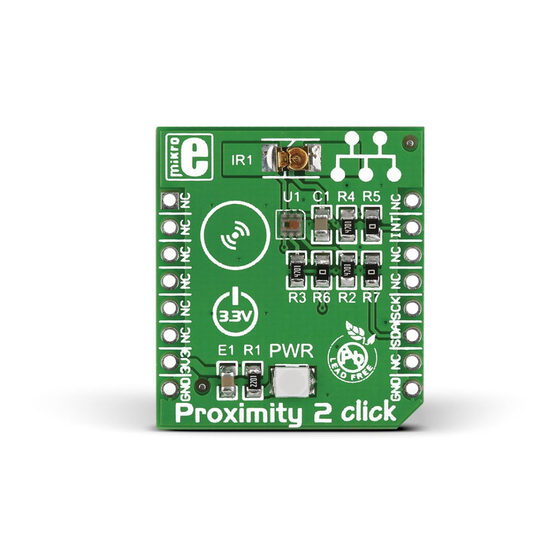

Proximity 2 click™ is an excellent
prototyping platform for the MAX44000
IC. The chip (in a optically transparent
package contains an array of photodiodes
that convert light to current, which is in turn
converted into a digital value. With only a
2mm x 2mm footprint, MAX44000 is ideal
for handheld accessories (smartphones
and similar). The wide range and low power
consumption makes the sensor suitable
for presence and ambient detection in
industrial sensors as well.
