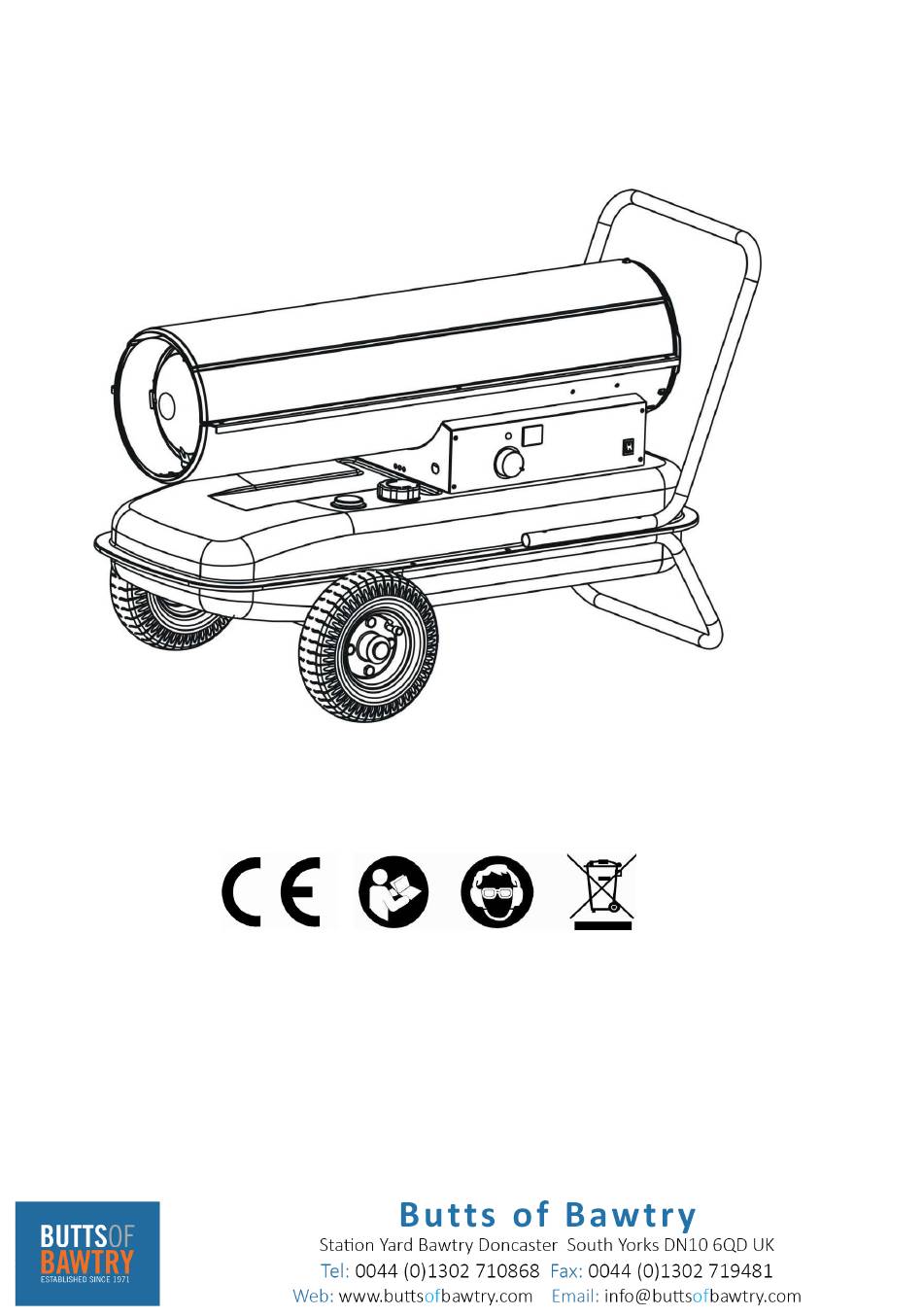

- Page 1 DIESEL SPACE HEATER ABU0001 Instructions & Assembly SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
Table of Contents NOT FOR USE IN RESIDENTIAL LIVING Warnings ..............3 AREAS OR IN NON-ADEQUATELY VENTILATED ENCLOSED SPACES Specifications and Precautions ......4 Features and Dimensions ........5 Unpacking Assembly Operation ....... 6 FIRE, BURN, INHALATION, AND EXPLOSION HAZARD.KEEP SOLID COMBUSTIBLES, Theory of Operation ........... -
Page 3: Specifications And Precautions
SPECIFICATIONS CAUTION: Use with No. 1-K kerosene or No. 1 diesel fuel Models CT2142 openings as marked for each additional heater. Pressure (bar) 0.36 Max. Capacity (KW) 6. Always keep combustibles, like paper and wood at least 2.4 m from the heater outlet and 1.2 m from (Kcal/h) 25800 the top, sides and inlet. -
Page 4: Features And Dimensions
Features Figure 1. Features Dimensions Figure 2. Product Dimensions... -
Page 5: Unpacking Assembly Operation
Unpacking substitute. 1. Remove heater from carton. THEORY OF OPERATION 2. Remove all protective material which may have been Fuel System: This heater is equipped with an air pump that applied to the heater for shipment. operates off of the electric motor. The pump forces air 3. -
Page 6: Maintenance
Maintenance TO START THE HEATE 1. Fill the tank with kerosene until fuel gauge points to “F”. Never service heater while it is plugged 2. Be sure fuel cap is secure. in or while hot! 3. Plug power cord into prong, grounded extension cord and plug extension cord into prong 220-240V grounded outlet. - Page 7 Maintenance (Continued) NOZZLES: Nozzles should be cleaned or replaced at least once per heating season. Contaminated fuel could make this necessary immediately To clean dirt from nozzle, blow compressed air through nozzle front. It may be necessary to soak nozzle in clean 1-K kerosene to help loosen any particles.
-
Page 8: Wiring Diagrams
(see Figure 11). Use flat blade screwdriver to turn valve. Correct pump pressure is as follows: Models Pump Pressure ABU0001 5.0Psi(0.36bar) Tolerance ± 10% For best measurement of pressure, test with full tank of fuel. Optimum pressure occurs when the nose cone is cherry red and there are no extending flames from the heater. -
Page 9: Exploded Drawing Parts Breakdown
Exploded Drawing Parts Breakdown... - Page 10 Part Number for Model: ABU0001 Description Combustion Chamber Assembly 30-001-0100 Upper Shell 30-002-0100 Burner Head Assembly 30-003-0100 Nozzle Kit 30-004-0101 Nozzle Seal Spring 15-004-0102 Nozzle Seal Washer 15-004-0103 Nozzle Sleeve 15-004-0104 Burner Head 30-004-0102 Fuel line Fitting 15-004-0107 Air line Fitting...
-
Page 11: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Heater fires, but Main PCB shuts 1. Incorrect pump pressure 1. Adjust Pump Pressure (Page 9) heater off after a short period of time. 2. Dirty Input, Output or Lint Filter 2. Clean/replace Air Filter (Page 7) Lamp is flickering, and LED display 3.
