VIZIO
QUICK START GUIDE

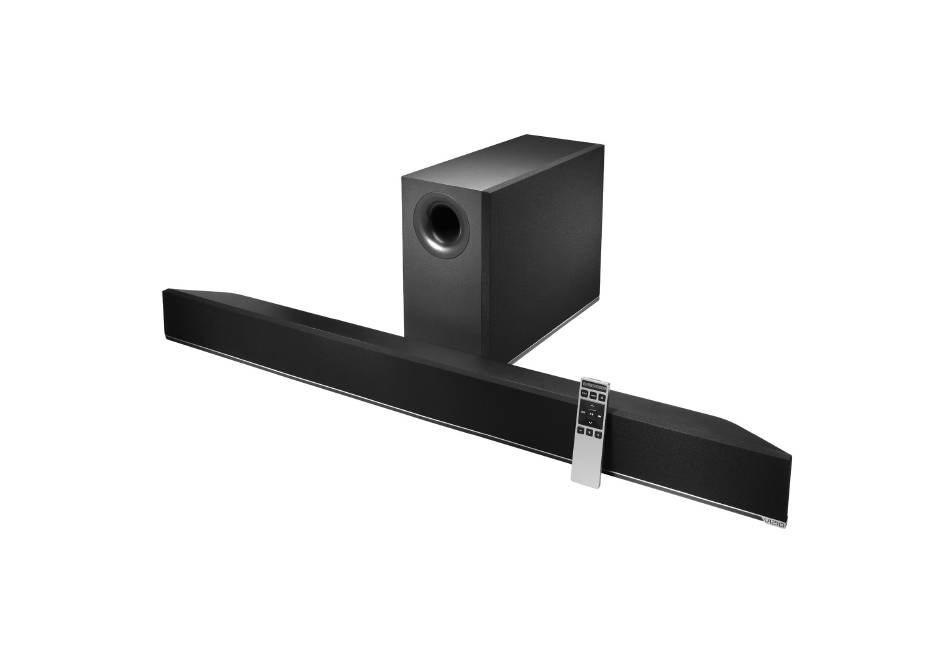

Model: S3821w-C0

Advertisement

Table of Contents
loading

Related Manuals for Vizio S3821w-C0

Summary of Contents for Vizio S3821w-C0

  • Page 1 VIZIO QUICK START GUIDE Model: S3821w-C0...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric • The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, the user to the presence of un-isolated, dangerous voltage within your Unit that may be of and maintenance.

  • Page 3: Package Contents

    PACKAGE CONTENTS High Definition Sound Bar Remote Control This Quick with Batteries Start Guide Power Stereo RCA to 3.5mm Coaxial Audio Digital Optical Adapter Audio Cable Cable Cable 2 x Sound Bar Wall 2 x Wall Wall Mount Mount Brackets Mount Screws Template (Size: M4 x 10)

  • Page 4: Controls And Connections

    CONTROLS & CONNECTIONS Back of Sound Bar DIGITAL (3) Coaxial In AUX (1) Analog Audio In OPTICAL (4) Digital Optical Audio In AUX (1) Analog Audio In Power Port USB (5) USB In...
  • Page 5 Back of Sound Bar Control Buttons are located here: Power Input Bluetooth Input (Hold to force pair, See “Bluetooth Pairing” on page 12) Volume...
  • Page 6 FIRST-TIME SETUP Back of Sound Bar GOOD GOOD BETTER BETTER DIGITAL COAXIAL DIGITAL OPTICAL 3.5MM TO 3.5MM TO CABLE** CABLE** RCA CABLE RCA CABLE CHOOSE ONE CABLE: BETTER GOOD AND CONNECT IT TO YOUR TV *Not all TVs have the audio outputs shown above. To connect the Sound Bar directly **When using either of the Digital Inputs, if there is no audio: (A) try setting the TV to your other devices (Blu-ray player, game system, etc) see your device’s user manual.
  • Page 7 Connect the Power Adapter to the Sound Bar. Plug the Power Adapter into a Power Outlet.
  • Page 8 BACK OF SUBWOOFER Connect a Power Cable to the Subwoofer. Plug the Power Cable into a power outlet. Flip the Power Switch into the On position.
  • Page 9 Sound Bar is centered below the TV. For the best surround sound experience, position the Sound Bar as shown. The Sound Bar should be close to ear level.
  • Page 10 Remove the battery cover Insert the included batteries by gently sliding it away and gently slide the battery from the remote. cover back into place. Turn your TV on, then press the Power button Input Power on the remote to turn the Sound Bar on. Press the Input button to switch between audio sources.

  • Page 11: Using The Remote

    USING THE REMOTE Input Power Press to change input source. Press to turn on or off. Enter/Play/Pause Press to select an option. Volume + Press to Play or Pause. Press to increase volume. Previous Next Press to return to previous track. Press to skip to the next track.

  • Page 12: Bluetooth Pairing

    Indicators on the Display Panel on the front of the Sound Bar will light sequentially from left to right and back again. Once the device is paired, the LED Indicators will stop flashing. 2. You can now search for the Sound Bar (VIZIO S4221w) using your Bluetooth device. For more information, see the documentation that came with your device.

  • Page 13: Using Bluetooth Mode

    USING BLUETOOTH MODE Your Sound Bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the Sound Bar, as long as you stay within range of the Sound Bar, your device should remain paired, even if you change the input on the Sound Bar.

  • Page 14: Advanced Setup

    ADVANCED SETUP Connect up to five (5) different devices Back of Sound Bar to the Sound Bar (devices shown are examples-you can use any device). To listen to a device, change the input source on the Sound Bar. Optical, Coaxial, and 3.5mm cables transmit audio only.

  • Page 15: Wall Mounting The Sound Bar

    WALL MOUNTING THE SOUND BAR Wall-Mount Back of Sound Bar Screw Holes Insert and tighten two Wall-Mount Screws with a Phillips-head screwdriver into the Wall-Mount Screw Holes. Place the included wall mounting template against the wall under your TV. Mark the four bracket holes using a pencil.
  • Page 16 Be sure your screws are attached to wood studs or drywall anchors (for drywall) or concrete anchors (for brick/concrete walls). Wall mounting hardware is not included. 15.75 in (400 mm) Wall Mount Screw Screw Size: M4 x 10 If you are unfamiliar with power tools or the layout of electrical wiring in the walls of your home, consult a professional installer.

  • Page 17: Help & Troubleshooting

    HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your Sound Bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •...
  • Page 18 DO YOU HAVE QUESTIONS? LET US HELP! YOUR PRODUCT INCLUDES FREE LIFETIME TECH SUPPORT The VIZIO support team is highly trained and is based in the United States. We can help with: • New Product Setup • Connecting Your Devices •...

  • Page 19: Vizio Recommends

    HDTV into the ultimate smart TV. Using the latest version of Google TV™, Co-Star decks out your existing HDTV with apps, full-screen Web browsing and the best in streaming entertainment. And with 1080p Full HD resolution, built-in Wi-Fi, and 3D-readiness, VIZIO Co-Star is the ultimate entertainment upgrade for any high-definition television.
  • Page 20 VIZIO RECOMMENDS Introducing the new E-series slim frame design. The VIZIO E-series LED TV is shattering the mold in a way only VIZIO can, with high-quality design and picture at the best value. With a stunningly slim outer frame design – and LED with 1080p Full HD for rich colors and vivid details, this HDTV gives you the best picture at the best value.
  • Page 21 With uncompromising performance, and premium picture and audio quality in a remarkably thin profile, the VIZIO Thin+Light is the Ultrabook that’s impossible to ignore. Ultra-responsive and ultra-portable, the VIZIO Thin+Light boots up instantly and goes wherever you do. If good things come in small packages, this must be the best there is.

  • Page 22: One-Year Limited Warranty

    VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.

  • Page 23: Legal & Compliance

    LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 24 RF exposure statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. © 2013 VIZIO INC. ALL RIGHTS RESERVED. 130401OC-NC...
