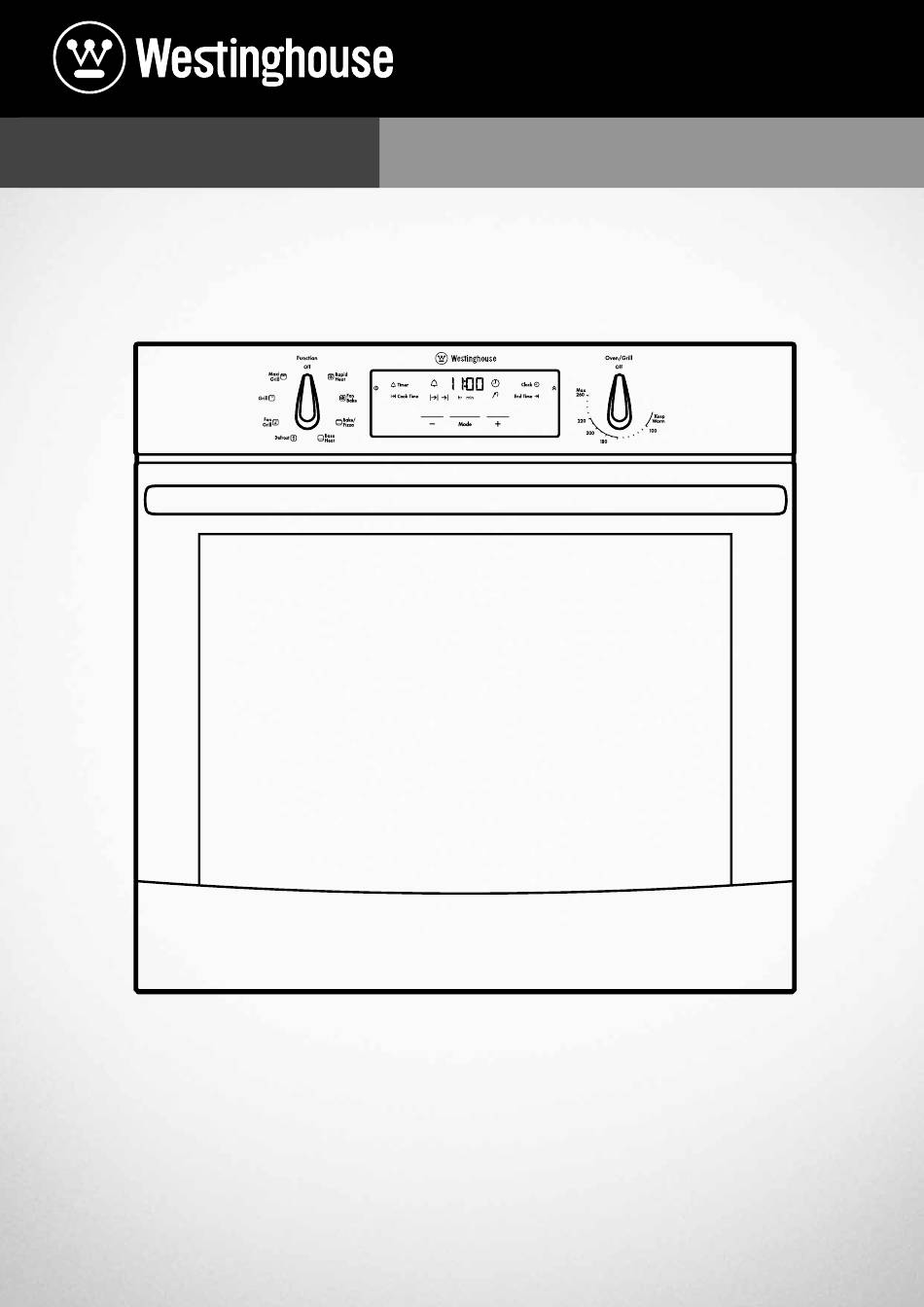

- Page 1 USER MANUAL ELECTRIC BUILT-IN OVENS WVE606, WVE607, WVE613, WVES613L/R, WVE614, WVE615, WVEP615, WVE616, WVE617, WVEP618, WVE626, WVEP627, WVE636, WVE645, WVE655, WVE665...
-
Page 2: Table Of Contents
Failure to strictly adhere to the requirements in this manual may result in personal injury, property damage and affect your ability to make a claim under the Westinghouse manufacturer’s warranty provided with your product. Products must be used, installed and operated in accordance with this manual. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Please read the user manual carefully and store in a handy Steam can be released. There is a risk of skin burns. place for later reference. There is a risk that steam causes moisture damage to cabinets. •... - Page 4 IMPORTANT SAFETY INSTRUCTIONS Cooktop only or harsh solvents to clean your stainless steel appliance. • If the ceramic glass on cooktop is accidently cracked, • Do not line the bottom of the oven or grill with foil or switch off the appliance to avoid the possibility of cookware, it will damage the enamel.
-
Page 5: Product Description
PRODUCT DESCRIPTION oven/grill indicator light WVE613 & WVES613 function selector oven/grill temperature selector ‘auto-off’ timer oven/grill indicator light WVE614 ‘auto-off’ timer oven/grill temperature selector function selector function indicator light oven indicator light WVE615 & WVE606 function selector electronic clock oven/grill temperature selector function indicator light oven indicator light WVE616... -
Page 6: Product Description
PRODUCT DESCRIPTION WVEP615 temperature selector function selector upper oven indicator light lower oven indicator light WVE626 upper upper oven/grill lower electronic clock lower oven/grill function temperature function temperature selector selector selector selector upper oven indicator light lower oven indicator light WVE636 upper upper oven/grill... -
Page 7: Before First Use
BEFORE FIRST USE Preparing your appliance for the first time • Please remove all internal boxes and bags from the oven before operation. • Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. -
Page 8: Installing Your Oven Accessories
INSTALLING YOUR OVEN ACCESSORIES Slides (Telescopic runners) • The catalytic liners attach to each side of your oven. There is a left hand and right hand version. The black, Obtain left hand side rack and left hand slide – see shiny side of the liner needs to touch the oven wall, image to identify. - Page 9 Shelves and trays TIPS & INFORMATION IMPORTANT The shelves are designed so that they have maximum travel but cannot be accidentally pulled right out. The trays are designed the same way and fit straight into the side racks. To fit a shelf or tray to side racks: •...
- Page 10 INSTALLING YOUR OVEN ACCESSORIES Shelves and trays (WVEP615 only) Shelves and trays (WVE655 only) • To insert the grill tray in a separate grill underbench product, open the grill door and fully extend the grill TIPS & INFORMATION IMPORTANT drawer. Position the grill tray so that the slots on the Your oven comes with formed “easy clean”...
-
Page 11: Using Your Oven
USING YOUR OVEN Understanding your oven functions Steam Assisted Cooking (WVE617 model only) Your oven will have a selection of the following functions. Perfect for all kinds of meat, poultry and fish dishes. The Refer to “Description of your appliance” to confirm what hot air ensures the outside of the food is sealed whilst functions are available to you. - Page 12 USING YOUR OVEN (CONTINUED) Pizza Defrost The “Defrost” function uses low temperature air which is “Pizza” is a combination of “Base heat” and “Fan bake” circulated by the fan. You can defrost (thaw) your food and offers you the combined benefits of both functions. before you cook it.
- Page 13 Maxi Grill (grill in oven models only) Fan Assist (duo small oven only) “Maxi grill” directs radiant heat from 2 powerful upper Heat comes from two elements, one above and one elements onto the food. You can use the “Maxi grill” below the food.
- Page 14 USING YOUR OVEN (CONTINUED) WARNING TIPS & INFORMATION CAUTION IMPORTANT Once the food is cooked, turn the temperature selector Cooling/Venting fan back in an anti-clockwise direction. Do not force it right round in a clockwise direction as this will result in damage This appliance is fitted with a cooling fan.
- Page 15 Cooking with your timer (selected models only) General features The oven is equipped with an electronic clock that can be used to turn the oven on and off automatically. The WARNING CAUTION ‘Cook time’ function automatically turns the oven off after Set the timer clockwise.
- Page 16 USING YOUR OVEN (CONTINUED) Setting the cooking duration Press symbols or to stop the clock from beeping. Select the desired oven The oven indicator light will appear and the Switching the clock display ON and OFF heating source will switch on. Press together symbols for 3 seconds to Press...
- Page 17 Setting the oven function After 5 seconds from last change, the symbol will stop flashing confirming the cooking end time Turn the oven selector clockwise to select is set. the desired oven function. The default temperature The “Cooking end time” will be shown on the display. for that function will be shown on the display.
- Page 18 USING YOUR OVEN (CONTINUED) Displaying the oven centre and set temperature (other DEMO mode than pyrolytic clean function) The oven can be set to operate in a demo (e.g. in a retail Press the button when the oven is operating store) mode.
- Page 19 Changing the time of day Setting the cooking end time Switch the appliance “Off” by pressing “On / Off”. Select the desired oven function and cooking temperature. Press button repeatedly until the “Set clock” symbol appears flashing with the “Timer arrow” Press button repeatedly until the symbol...
- Page 20 USING YOUR OVEN (CONTINUED) Setting the minute minder Activating the child-proof lock The minute minder can be used with the oven on or off. When the child lock is activated, the oven cannot be switched on. Press button repeatedly until the “Minute minder”...
- Page 21 • Do not use a lot of cooking oil when roasting. This will prevent the splattering of oil on the sides of the oven Not a shelf and the oven door. Polyunsaturated fats can leave position residue which is very difficult to remove. •...
-
Page 22: Cooking Guide
COOKING GUIDE Choosing the best oven settings The following table is intended as a guide and experience may show some variation in cooking times necessary to meet individual requirements. It may be necessary to change some cooking times and temperatures from your previous oven. -
Page 23: Grilling Guide
GRILLING GUIDE Grilling hints Guide to better grilling WARNING WARNING TIPS & INFORMATION IMPORTANT Always clean the grill/oven dish after every use. Excessive Definite times can not be given for grilling as it is fat build up may cause a fire. dependant on the size of the food and your own tastes. -
Page 24: Steam Cooking Guide
STEAM COOKING GUIDE (WVE617 model only) Steam product description TIPS & INFORMATION IMPORTANT Cooking with steam is a great addition to straight ‘hot air’ cooking. Steam brings out all the natural flavours and goodness in the food, cooks evenly from surface to centre and retains more nutrients and vitamins. - Page 25 Steam operating sequence Once cooking is complete, remove the food and turn off the oven. Leave the oven door ajar to aid drying Open the water drawer in the control panel by out the oven. pressing it. Drain the water tank once the appliance is cool. (See Pour approximately 850mL of water into the “Emptying water tank”) drawer.
-
Page 26: Dealing With Cooking Problems
DEALING WITH COOKING PROBLEMS PROBLEM CAUSES REMEDY Uneven cooking • Incorrect shelf position • Select shelf suitable for cooking function. See cooking function tables in cooking guide • Oven tray too large • Experiment with other trays or dishes • Trays not centralised •... -
Page 27: Getting To Know The Oven
GETTING TO KNOW THE OVEN Get to know the oven with this ‘Simple Test Cake’ Although we strive for a perfect performing oven, it’s possible that there will be some variation in colour when baking. Therefore, we suggest this simple, easy and delicious to make Simple Test Cake, it can help you understand your new oven. -
Page 28: Care And Cleaning
CARE AND CLEANING WARNING WARNING WARNING WARNING Ensure the oven is electrically isolated before cleaning. The door glass on this appliance is made from a tough, This can be done by switching off the appliance via durable material that withstands heating and cooling the powerpoint or isolating switch (if available), or the without breaking. - Page 29 Removing catalytic liners (where fitted) TIPS & INFORMATION IMPORTANT Catalytic self-clean panels are coated with a specially formulated enamel coating over a base of regular enamel. This enamel coating has a rough and porous surface. During normal cooking, fats and other food splatter is partially absorbed into the surface and oxidised away.
- Page 30 CARE AND CLEANING (CONTINUED) Rotating latch models - rotate latch 180 and the grill element will drop down freely. After cleaning, raise the grill element and secure by rotating the latch back 180 Releasing the grill element WARNING WARNING Make sure the appliance is turned off before you remove or replace parts, to avoid the possibility of electric shock.
- Page 31 • Grasp the oven door with a hand each side of the door and remove it from the oven by pulling it towards you. • Repeat this for the smaller clear glass panel (when fitted). • Lay the oven door with the outer side facing downwards on something soft and flat (for example a blanket on a kitchen table) to prevent scratches.
- Page 32 CARE AND CLEANING (CONTINUED) Re-assembling the bottom trim (on selected models) • Push down to “snap” each side of bottom trim back into door columns. Re-assembling the top door trim • Take hold of the top door trim at each side and position it to the inside edge of the glass.
- Page 33 Fitting the oven door Cleaning the quad glazed oven door (on selected models) • Take hold of the oven door with a hand on each side and with the door at an angle of 45 , position the recesses at the bottom of the door onto the hinge WARNING CAUTION arms of the oven.
- Page 34 CARE AND CLEANING (CONTINUED) Cleaning the door glass panels • Lay the oven door with the outer side facing WARNING CAUTION downwards on something soft and flat (for example a blanket on a kitchen table) to prevent scratches. Do not to use harsh abrasives on the glass panes as the reflective surface plays a role in the function of the oven.
- Page 35 Fitting the oven door Chamfer to be located in this corner • Take hold of the oven door with a hand on each side and with the door at an angle of 30˚, position the recesses at the bottom of the door onto the hinge arms of the oven.
- Page 36 CARE AND CLEANING (CONTINUED) WARNING CAUTION Do not lift the door by the handle. Rough handling will cause glass to break. Removing the door glass panels Cleaning the door glass panels WARNING CAUTION WARNING CAUTION Rough handling, especially around the edges can cause Do not to use harsh abrasives on the glass panes as the the glass to break.
- Page 37 Before carrying out the Pyrolytic cleaning function WARNING WARNING • Clean large deposits, spills or grease from the oven cavity. • Please keep small children at a safe distance. The appliance becomes very hot. • Never clean non-stick baking trays and tins in the oven during the pyrolytic cycle.
- Page 38 CARE AND CLEANING (CONTINUED) Starting the Pyrolytic cleaning function (WVEP615 & WVEP627 models only) WARNING CAUTION Do not turn off the mains power supply to the oven • Make sure all accessories are removed from the oven during the pyrolytic cleaning cycle. This could damage including shelves, trays and side racks.
-
Page 39: Using Your Cooktop
USING YOUR COOKTOP Cleaning your ceramic hotplate WARNING CAUTION Remove all spilt food and fat with a razor blade The ceramic cooktop is made from ceramic glass,a tough scraper (supplied with the unit) while the ceramic durable material that withstands heating and cooling glass is still warm, but not hot. -
Page 40: Troubleshooting
TROUBLESHOOTING Cooktop Faults If there is a problem with the oven and/or grill, please: PROBLEM POSSIBLE CAUSE SOLUTION • Check the points listed below before calling for Heating • Power not • Check cooktop service. It may be possible to avoid a call by fixing the elements not switched on is plugged in and... - Page 41 Oven PROBLEM POSSIBLE CAUSE Oven or grill • Time of day not set. not working • Power not turned on. • Controls are incorrectly set. • Oven is in ‘Demo’ mode, refer to Using your oven section. • Household fuse has blown or power supply is off. NOTE: If the household fuse continues to blow, call the Customer Care Centre.
-
Page 42: Installing Your Appliance
INSTALLING YOUR APPLIANCE WARNING WARNING WARNING WARNING To avoid any potential hazard, you must follow our This appliance must be properly earthed. instructions when you install your appliance. Failure • Do not lift the appliance by the door handles. to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution. - Page 43 • If a powerpoint is fitted it must be accessible with the Cabinet construction for your appliance appliance installed, as the plug must be accessible For the best integration within a kitchen, install the after installation. appliance in a standard 600mm wide cupboard that gives •...
- Page 44 INSTALLING YOUR APPLIANCE Non-pyrolytic underbench ovens and side open door oven Your underbench oven looks best when the control panel is directly under the benchtop. An upper infill panel may have to be added if the cooktop placed over the oven is too deep. Refer to cooktop installation instructions for required clearance between cooktop and oven.
- Page 45 Separate grill underbench oven Your underbench oven looks best when the control panel is directly under the benchtop. An upper infill panel may have to be added if the cooktop placed over the oven is too deep. Refer to cooktop installation instructions for required clearance between cooktop and oven.
- Page 46 INSTALLING YOUR APPLIANCE Double oven GAS TYPE Flush fit 1086 581min Proud fit 1078 560min use black installation screws supplied mounting holes use black installation screws supplied 450mm min. Combo oven – cooktop cut-out dimensions COOKTOP DIMENSIONS A minimum gap of 40mm must be maintained between Overall Cooktop Dimensions the top of the underbench oven and the bottom of the Width...
-
Page 47: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Westinghouse’ is the brand controlled by Electrolux Home Products In addition, Electrolux is not liable under this warranty if: Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004... - Page 48 Electrolux Top Service encompasses the after sales service including Delivery, Home Service and Spare Parts. and WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by Electrolux Home Products Pty Ltd. All Rights Reserved. A17443101 Rev A ECN 109379 ©...
