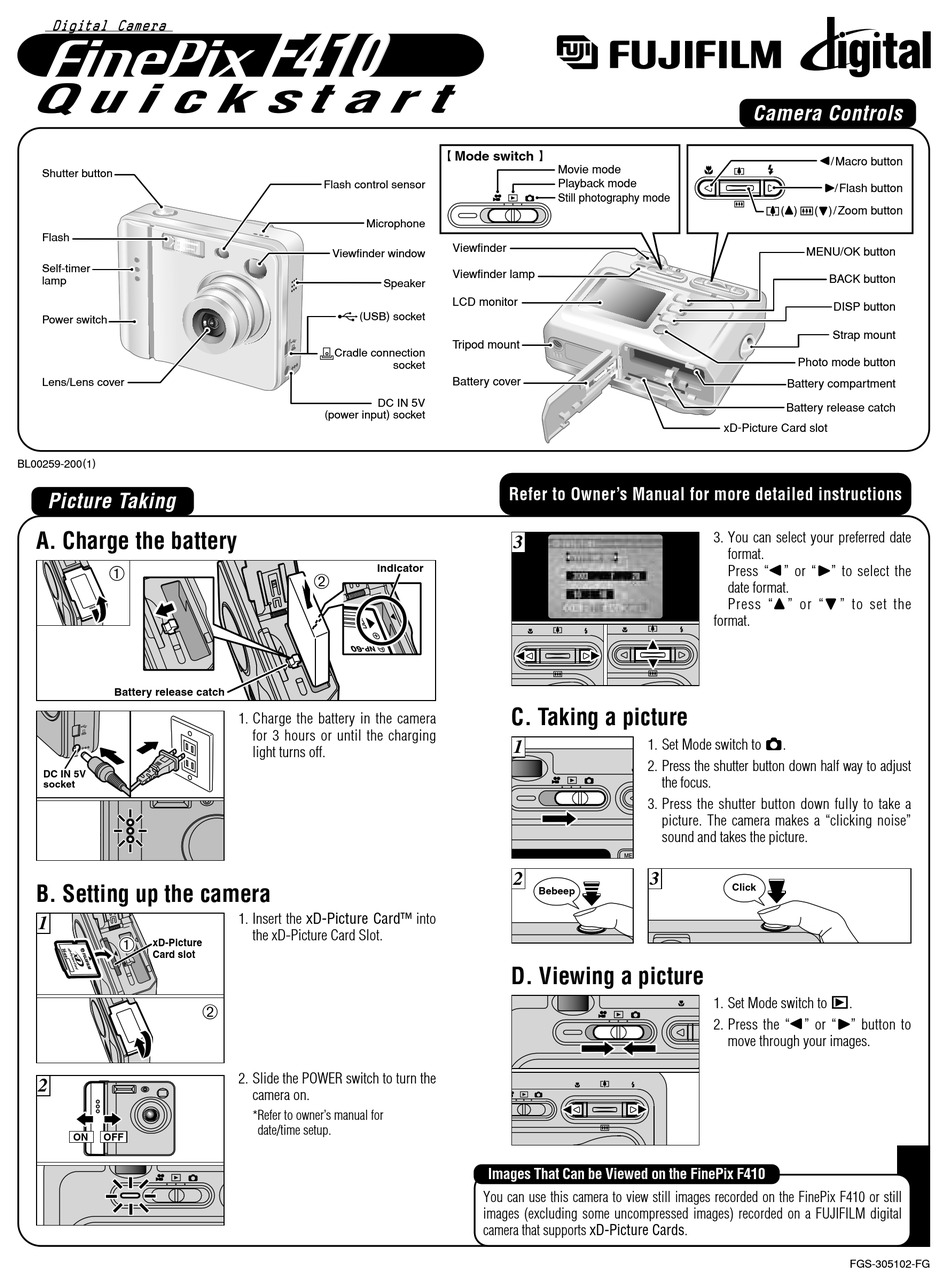

FujiFilm Finepix F410 Quick Start

Shutter button
Flash
Self-timer
lamp
Power switch
Lens/Lens cover
BL00259-200 ( 1 )
Picture Taking
A. Charge the battery
0 1
Battery release catch
DC IN 5V
socket
B. Setting up the camera
1
1 0
xD-Picture
Card slot
2
ON OFF
F410 F410
Flash control sensor
Microphone
Viewfinder window
USB ) socket
(
Cradle connection
DC IN 5V
( power input ) socket
Indicator
2 0
1. Charge the battery in the camera
for 3 hours or until the charging
light turns off.
1. Insert the xD-Picture Card™ into
the xD-Picture Card Slot.
0 2
2. Slide the POWER switch to turn the
camera on.
*Refer to owner's manual for
date/time setup.
Mode switch
Movie mode
Playback mode
Still photography mode
Viewfinder
Viewfinder lamp
Speaker
LCD monitor
Tripod mount
socket
Battery cover
Refer to Owner's Manual for more detailed instructions
3
C. Taking a picture
1
2
Bebeep
D. Viewing a picture
Images That Can be Viewed on the FinePix F410
You can use this camera to view still images recorded on the FinePix F410 or still
images (excluding some uncompressed images) recorded on a FUJIFILM digital
camera that supports xD-Picture Cards.

Camera Controls

d/ Macro button
c/ Flash button
(a) ( b )/ Zoom button
MENU/OK button
Photo mode button
Battery compartment
Battery release catch
xD - Picture Card slot
3. You can select your preferred date
format.
Press "d" or "c" to select the
date format.
Press "a " or "b " to set the
format.
1. Set Mode switch to q.
2. Press the shutter button down half way to adjust
the focus.
3. Press the shutter button down fully to take a
picture. The camera makes a "clicking noise"
sound and takes the picture.
3
Click
1. Set Mode switch to w.
2. Press the "d" or "c" button to
move through your images.
BACK button
DISP button
Strap mount
FGS-305102-FG
