ROLLOFF Setup Screen
The ROLLOFF setup screen controls
the low frequency audio response of
the IFBT4 by moving the 3 dB corner
of a 4 pole lowpass digital filter. The
50 Hz setting is the default, and should be used
whenever wind noise, HVAC rumble, traffic noise or
other low frequency sounds may degrade the quality of
the audio. The 35 Hz setting may be used in the
absence of adverse conditions, for a fuller bass
response.
Press MENU to return to the Setup window.

COMPAT Setup Screen

The COMPAT setup screen selects
the current compatibility mode, for
interoperation with various types of
receivers. The available modes are:
US
Nu Hybrid - This mode offers the best audio quality
and is recommended if your receiver supports it.

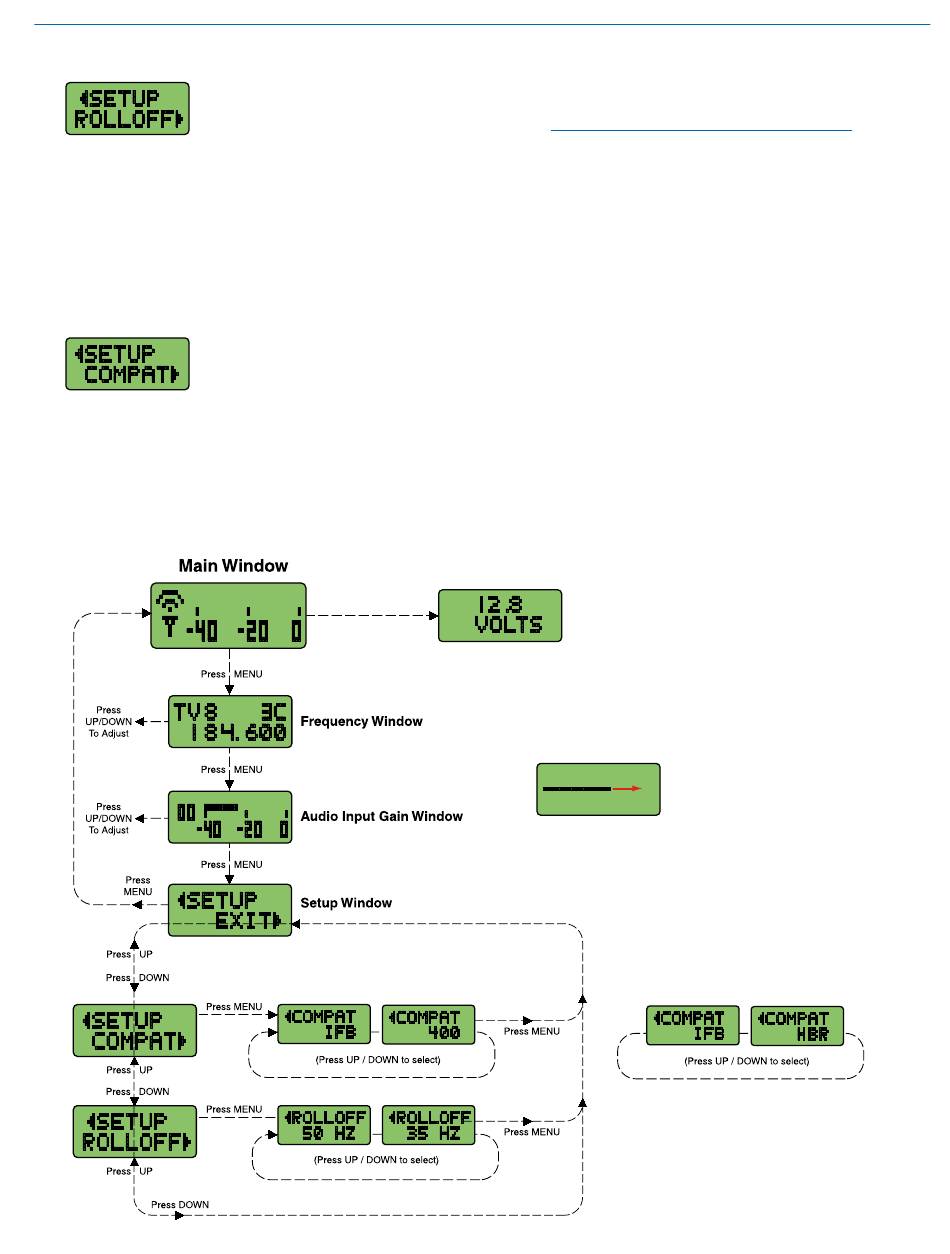

IFBT4 Menu Diagram

Rio Rancho, NM
Press UP or DOWN arrow
US Compat Modes
Synthesized VHF IFB Transmitter
IFB - Lectrosonics IFB compatibility mode. This is the
default setting and is the appropriate setting to
use with the Lectrosonics IFBR1A or a compat-
ible IFB receiver.
NOTE: If your Lectrosonics receiver does not
have Nu Hybrid mode, use Euro Digital Hybrid
Wireless® (EU Dig. Hybrid).
E01, X
IFB - Lectrosonics IFB compatibility mode. This is the
default setting and is the appropriate setting to
use with the Lectrosonics IFBR1A or a compat-
ible IFB receiver.
HBR - Digital Hybrid Mode. This mode offers the best
audio quality and is recommended if your re-
ceiver supports it.
Press MENU to return to the Setup window.

Lock/Unlock Panel Buttons

To enable or disable the control panel buttons, navi-
gate to the Main Window and press and hold the
MENU button for about 4 seconds. Continue holding
the button as a progress bar extends across the LCD.
When the bar reaches the right side of the screen,
the unit will toggle to the opposite locked or unlocked
mode.
Display External Power Voltage
(added feature with firmware Ver. 1.4)
Lock/Unlock Panel Buttons
From the Main Window, press and hold the MENU
button until a progress bar appears (about 4 seconds).
Continue holding the button until the bar reaches the
right side of the LCD. The selected mode will flash briefly.
E01,X Compat Modes
