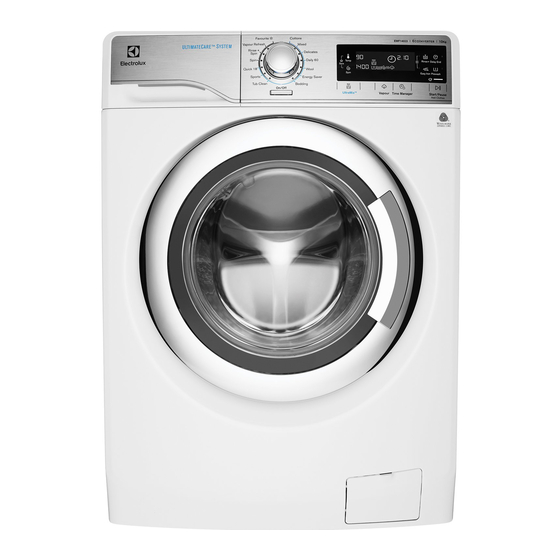

- Page 1 EWF14023 EWF14923 Washing Machine User Manual...
-
Page 2: Table Of Contents
WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. - Page 3 CONTENTS DAILY USE 5.1 Loading The Laundry ....................14 5.2 Using Detergent And Additives ..................15 5.3 Options Setting ......................16 5.4 Starting A Cycle ......................16 5.5 Interruption Of A Program .................... 16 5.6 Changing A Program ....................16 5.7 Changing The Options ....................
-
Page 4: Safety Information
SAFETY INFORMATION 1.1 Conditions Of Use This appliance is intended to be used in household and similar applications such as: Farm houses ● By clients in serviced apartments, holiday apartments ● and residential type environments. In the interest of your safety and to ensure the correct... -
Page 5: Child Safety Device (Door Block Button)
Make sure that children or pets do not climb into the ● drum. This machine is provided with child safety lock option ● ) to prevent children playing with the control panel. (see page 13) 1.3 Child Safety Device (Door Block Button) When you activate this device, you cannot close the door. -
Page 6: Installation
● Always unplug the appliance and turn May cause electric shock! if the off the water supply after use, clean machine is not connected to an and maintenance. earthed/ground system. DO NOT touch the wet clothes and metal ●... -
Page 7: Product Description
PRODUCT DESCRIPTION 2.1 Parts Worktop Detergent/Softener Dispenser For more information see page 15. Control Panel Door Door Handle Drain Pump Filter For more information see page 22. Level Adjustment Feet (Front) Drum Light Drum Lifter Rating Label Child Safety Device For more information see page 5. -
Page 8: Accessories
Plastic Hose Guide This part available from your ● authorized vendor. Only appropriate accessories approved by Electrolux ensure the safety standards of the appliance. If unapproved parts are used, any claims will be invalidated. To connect the drain hose on the edge of a sink. -
Page 9: Control Panel
CONTROL PANEL 3.1 Control Panel Description Program Knob Prewash Touchpad Start/Pause, Add Clothes Touchpad Spin Selection Touchpad Save Favourite Program Add Clothes Function Symbol Temperature Selection Touchpad Easy Iron Touchpad Display Time Manager Touchpad Child Lock (see page 13) Vapour Touchpad Rinse Plus Touchpad UltraMix Touchpad Delay End Touchpad... -
Page 10: Program Chart
(dry clothes) ; Program ; Max. Spin Speed Temperature Type of load and soil level range Model EWF14023 EWF14923 10 kg ; 9 kg ; White and coloured cotton. (Adjust wash time Cottons ; 1400 rpm 1400 rpm according to soil level. See Time Manager table to 90°C... -
Page 11: Program Options Compatibility
3.4 Program Options Compatibility Program Spin Option No Spin Rinse Hold Extra Silent Cottons Mixed Delicates ... - Page 12 Delay End Touchpad ( Prewash Touchpad ( Before you start the program, this option Select this option if you wish your laundry makes it possible to define the end of the to be pre-washed before the main wash. washing program from minimum of 1 Use this option for heavy soil.
-
Page 13: Settings
To set “Child Lock” option: UltraMix (TM) ( ● To activate the function, press When you select this option, the detergent “Rinse + ( ) and Easy Iron ( )” is blended and dissolved in water within a touchpads at the same time until the “pre-mixing technology”... -
Page 14: Before First Use
To restart the program from the point at Pressing the “Start/Pause” touchpad which it was interrupted, press this to pause the program. touchpad again, the Start/Pause pilot Wait for the machine to come to a light will stop flashing. -
Page 15: Using Detergent And Additives
Using Detergent And When you use the liquid detergent: Additives Do not use gelatinous or thick IMPORTANT: Please read liquid detergents. “Detergents Type and Do not put more liquid than the Quantity of Detergent”on page maximum level. 19 before use. Do not set the “Prewash”... -
Page 16: Options Setting
5.3 Options Setting After approx. 15 minutes from the start of a program: If you want your laundry to be spun or The appliance will automatically use temperature different from the one adjust the selected program duration proposed by the washing machine, according to the type and size of the pess the Spin “... -
Page 17: At The End Of The Program
If the door lock indicator “ ” does not You must drain the water to open the disappear, this means that the machine door. is already heating and the water level is To drain the water: above the bottom edge of the door or the Press the “Start/Pause ”... -
Page 18: Washing Hints
WASHING HINTS 6.1 Sorting The Laundry Never wash whites and coloureds together. Whites may lose their Follow the wash code symbols on each “whiteness” in the wash. garment label and the manufacturer’s New coloured items may run in the first washing instructions. -
Page 19: Detergents Type And Quantity Of Detergent
Mould stains: treat with bleach, rinse The choice and quantity of detergent will well (whites and fast coloureds only). depend on ; Grass: soap lightly and treat with bleach type of fabric (delicates, woollens, (whites and fast coloureds only). cottons, etc.) ; the colour of clothes ;... -
Page 20: International Wash Code Symbols
INTERNATIONAL WASH CODE SYMBOLS These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry. Energetic Max. wash Max. wash Max. wash Max. wash DO NOT temperature temperature temperature temperature Hand wash... -
Page 21: Maintenance Wash With "Tub Clean" Program
8.4 Maintenance Wash With To aid cleaning, the top part of the additive compartment should be “Tub Clean” Program removed. With the use of low temperature washes it is possible to get a build up of residues inside the drum. We recommend to use “Tub Clean”... - Page 22 2. Do not remove the filter while the 3. Place a suitable water container appliance is operating. Do not clean below the recess of the drain pump the drain pump if the water in the to collect the water that flows out.
-
Page 23: Cleaning The Water Inlet Filter
5. Pull back the drainage duct and turn Clean the filter under the water tap. the filter counter-clockwise to remove it. Put the filter back in the pump into the special guides. Make sure that you correctly tighten the filter to prevent leakages. -
Page 24: Frost Precautions
8.9 Frost Precautions If the appliance is installed in an area where the temperature can be less than 0 °C, remove the remaining water from the inlet hose and the drain pump. Remove the inlet hose behind the Emergency Drain appliance. -
Page 25: Troubleshooting
TROUBLESHOOTING 9.1 Possible Failures Alarm Code: Certain problems are due to lack of simple The appliance does not fill with maintenance or oversights, which can be water properly. solved easily without calling out an engineer. The appliance does not drain Before contacting your local Service Centre, the water. - Page 26 Malfunction Possible cause => Solution The drain hose is squashed or kinked. (Error code: ) => Check the drain hose connection. The drain pump is clogged. (Error code: ) => Clean the drain The machine filter. does not empty and/or does The option “Extra Silent”...
-
Page 27: Emergency Door Opening
Malfunction Possible cause => Solution The cycle is shorter than the The appliance calculated a new time according to the laundry load. time displayed. The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. -
Page 28: Technical Data
220-240 V / 50 Hz Total power absorbed 2100 W Minimum fuse protection 10 A Water supply pressure (Maximum / Minimum) 0.8 MPa / 0.05 MPa EWF14023 EWF14923 Cottons 10 Kg 9 Kg 4 Kg 4 Kg Mixed Delicates 4 Kg... -
Page 29: Installation
INSTALLATION 11.1 Unpacking CAUTION! All transit bolts and packing must be removed before using the appliance. You are advised to keep all transit devices so that they can be refitted if the machine ever has to be transported again. Use gloves. Remove the external film. If necessary, use a cutter. -
Page 30: Positioning
11.2 Positioning It is important that your washing machine stands firm and leveled on the floor to ensure correct operation. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to avoid restricting the washing machine door. -
Page 31: Water Inlet
The inlet hose must not be When the washing machine is lengthened. If it is too short and levelled, try to rock it from corner to you do not wish to move the tap, corner. If it does rock, adjust the you will have to purchase a new, legs again until it is levelled and longer hose specially designed for... -
Page 32: Electrical Connection
11.5 Electrical Connection This machine is designed to operate on a 220-240 V, single-phase, 50 Hz supply. “An incorrect power supply may void your warranty.” Check that your domestic electrical For the correct functioning of the machine, the drain hose must... -
Page 33: Environment Concerns
ENVIRONMENT CONCERNS 12.1 Packaging Materials For more detailed information about recycling of this product, The materials marked with the please contact your local city symbol are recyclable. office, your household waste disposal service or the shop where >PE<=polyethylene you purchased the product. >PS<=polystyrene >PP<=polypropylene 12.3 Ecological Hints... - Page 34 NOTE...
