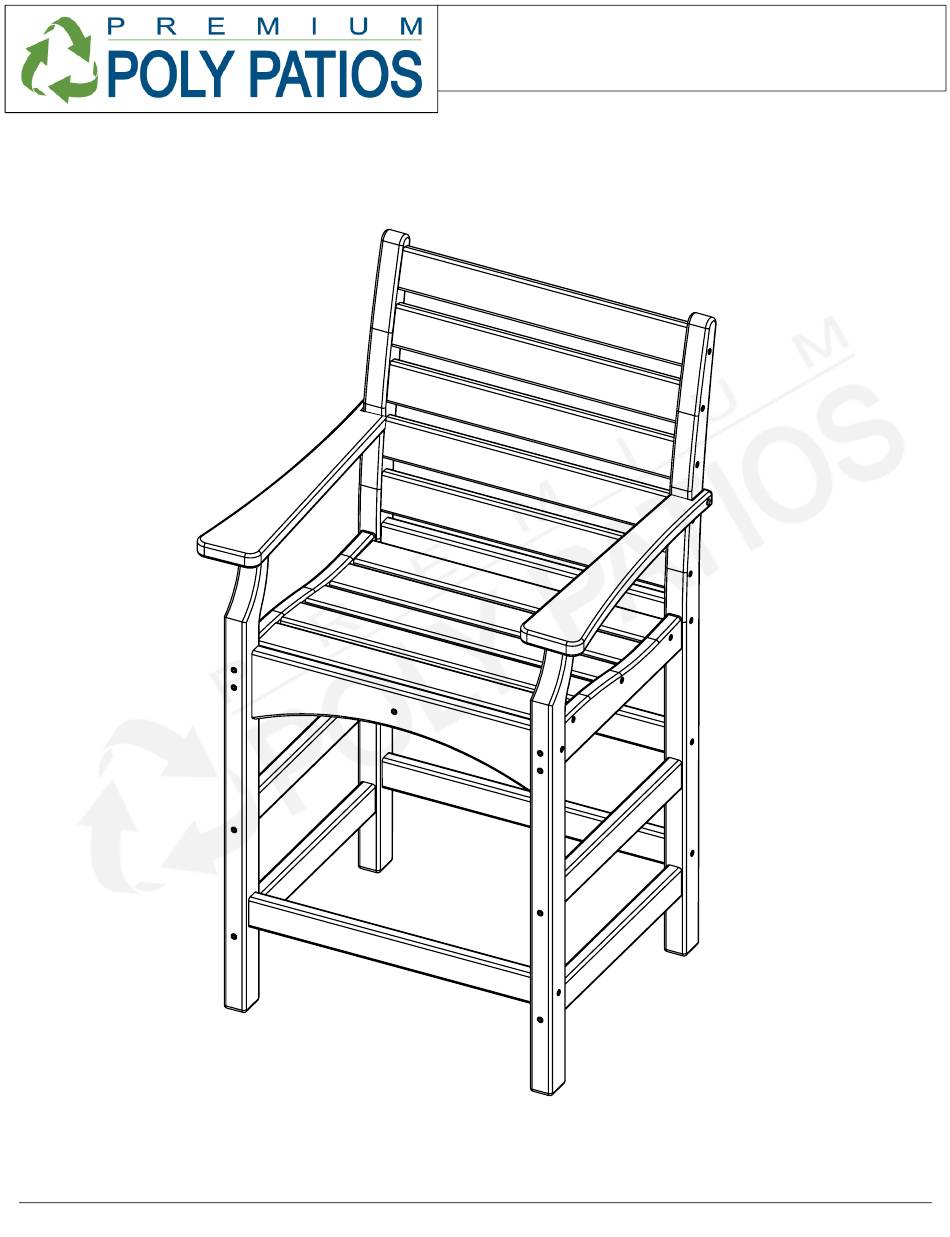

- Page 1 PIEDMONT COUNTER CAPTAINS CHAIR PT-0507 REV01-2/19 PT-0507 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 PARTS PART DESCRIPTION PART NO. BACK ASSEMBLY SA-00219 SEAT ASSEMBLY SA-00207 FRONT ASSEMBLY SA-00218 SEAT SUPPORT PRT00294 BASE SPREADER PRT-00287 LEFT ARM PRT-00392 RIGHT ARM PRT-00393 HARDWARE PART DESCRIPTION PART NO. #8 X 1-1/2" TORX SCREW H-0000-S815 #8 X 2" TORX SCREW H-0000-S82 #8 X 2-1/2"...
- Page 3 Please read entire instructions before beginning Place Parts E & B into A as shown Connect Part G to C with Hardware d by rotating Part G clockwise until the connection feels tight Repeat Step 3 for Part F Attach Part C using the hardware shown PT-0507 Assembly 1-877-904-1234...
- Page 4 Turn the assembly over & attach the hardware shown Connect Part D to the center, underside of Part B as shown PT-0507 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
