2' Adirondack Poly Glider
(A) - Seat Assembly
(B) - Back Assembly
(C) - Glider Base
(D) - Glider Base
(E) - Front & Back Crosspieces
(F) - Lintels
(G) - Bearing Support Arms
(H) - Armrest Assembly
(I) - Armrest Assembly
Hardware
2 -5/16" x 4" Bolt
2 - 5/16" x 3" Bolt
4 - 5/16" x 2 1/2" Bolt
4 - Large Nut (3/8")
8 - Small Nut (5/16")
24 - Washers
48 - 2" Screws
1.

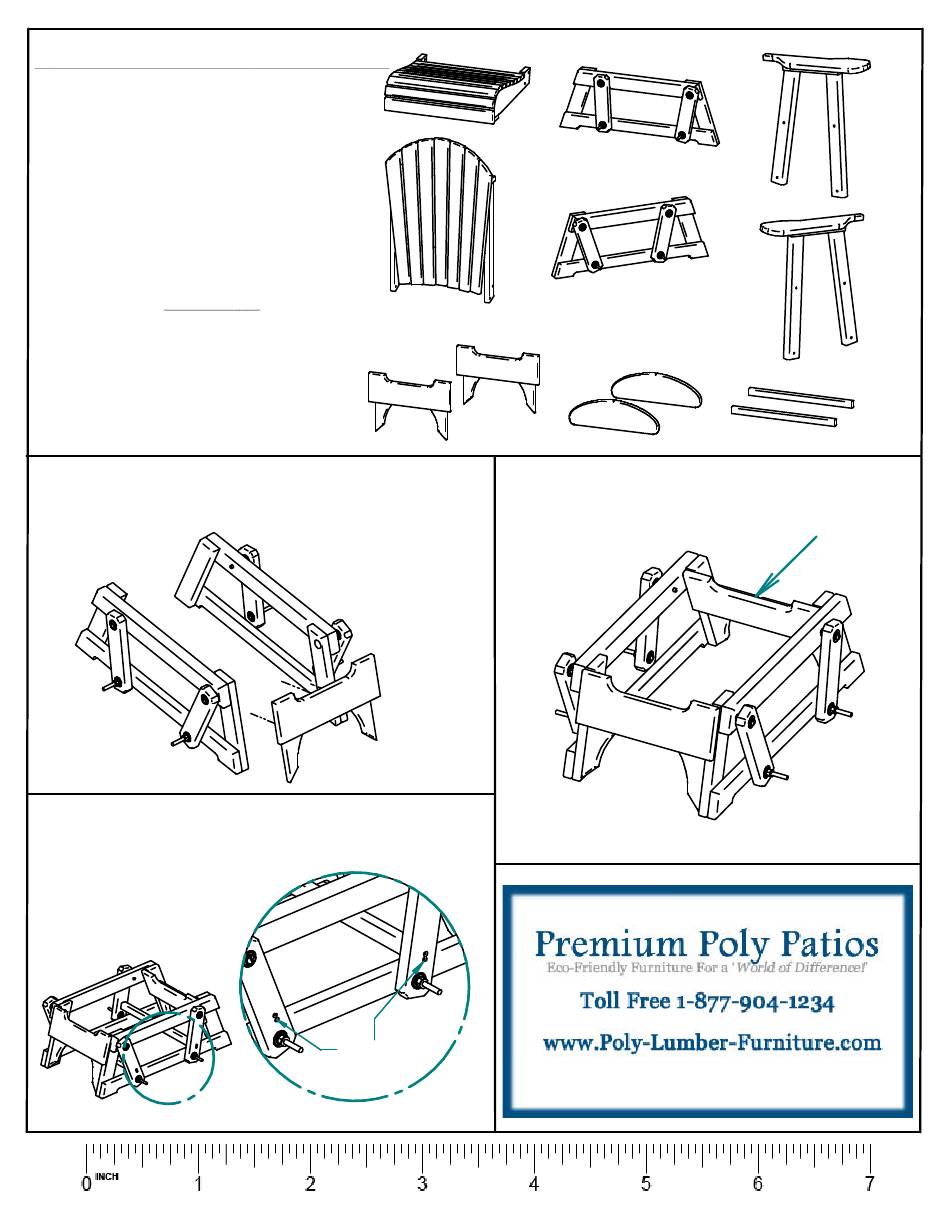

Attach (E) Front Crosspiece to Glider Base Sides
using 2" Screws.
**Be sure to match all letters and/or numbers**
Attach (F) Bearing Support Arms to Glider Base
3.
Bearing Arms using 2" Screws.
**Be sure to match all letters and/or numbers**
Premium Poly Patios - Poly Lumber Furniture
right side
left side
right side
left side
2" Screws
www.Poly-Lumber-Furniture.com
A.
B.
E.
2.
Attach (E) Back Crosspiece to Glider Base
Sides using 2" Screws.
**Be sure to match all letters and/or numbers**
C.
H.
D.
F.
G.
I.
