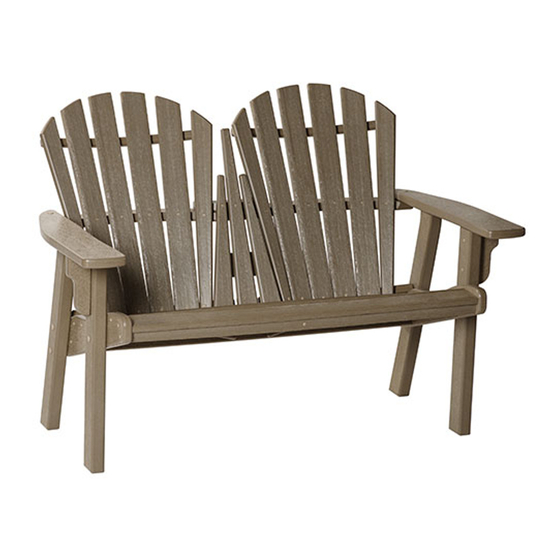

- Page 1 COASTAL BENCH AD-0118 REV02-6/19 AD-0118 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 2 #8 X 2" TORX SCREW FRAME COLOR H-0000-S82 #8 X 2-1/2" TORX SCREW H-0000-S825 5/16" X 1-1/2" CHAIR BOLT H-0000-CB51615 5/16" X 2-1/8" CHAIR BOLT H-0000-CB516218 DOUBLE SCREW H-0000-DS T20 & T25 TORX BIT H-0000-CTD Suggested Tools: Drill, Plastic Mallet AD-0118 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 3 Attach Part G to the previous assemblies using Hardware e, this step is made easier if assembly is upside down Place Part J into Part G & attach it with the hardware shown AD-0118 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
- Page 4 Slide Parts K & H into place and attach it using the hardware shown Back View Under Seat View Slide Part L into place and attach it using the hardware shown AD-0118 Assembly 1-877-904-1234 www.Poly-Lumber-Furniture.com...
