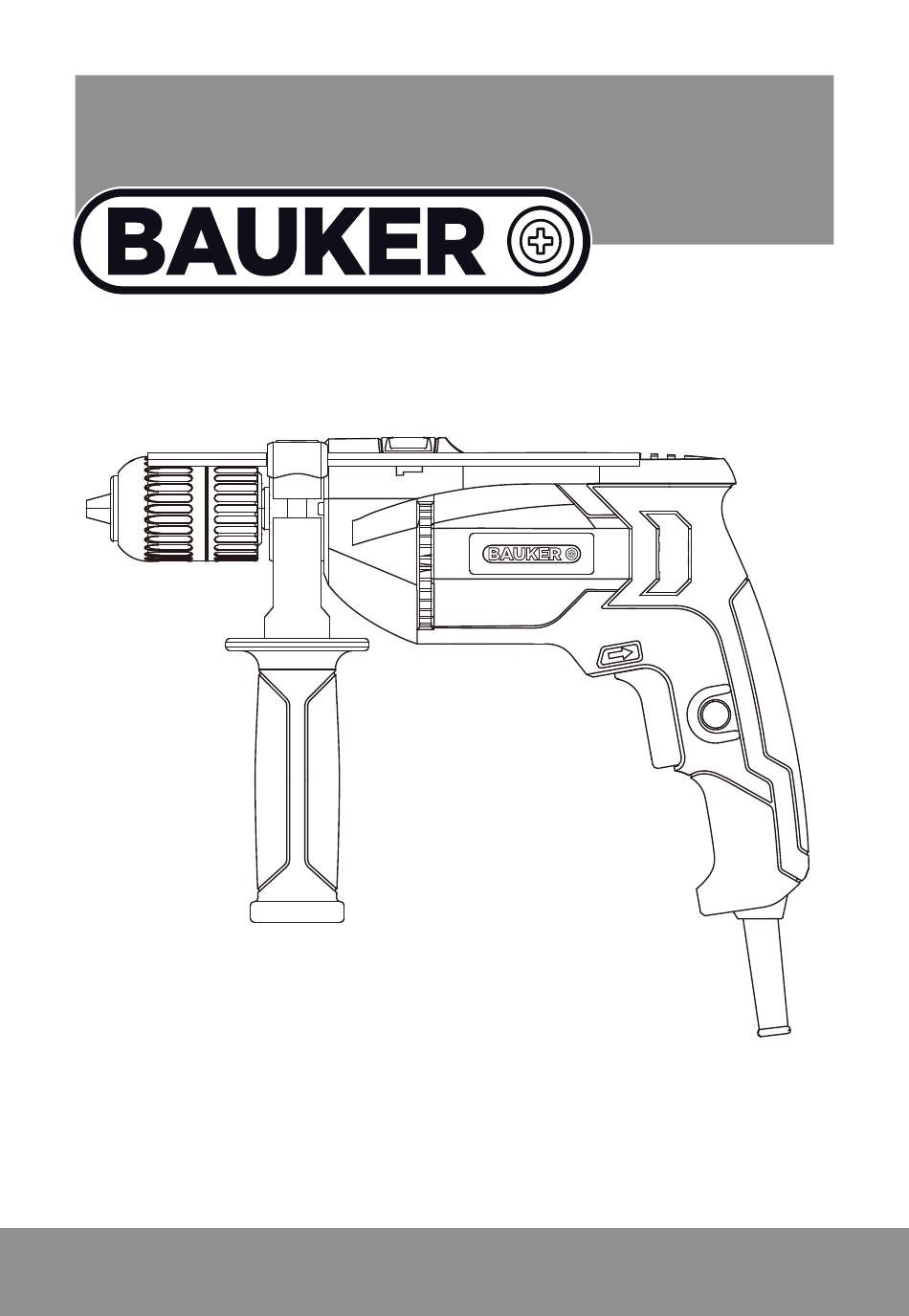

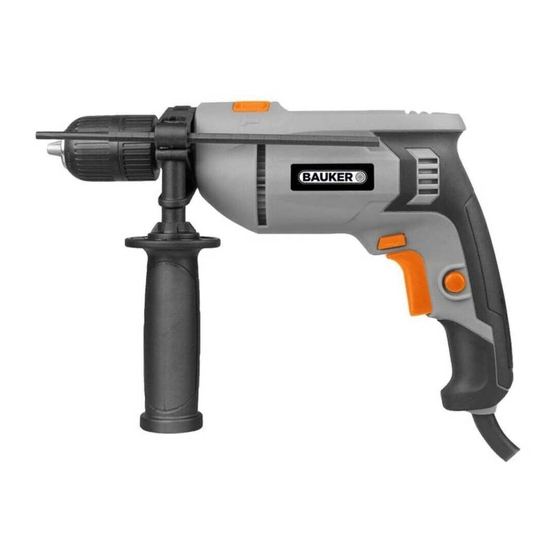

- Page 1 PDI750G 750W 13MM IMPACT DRILL ORIGINAL INSTRUCTION MANUAL...
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions Important - Please read these instructions fully before starting assembly may result in electric shock, fire and/or serious injury. General Power Tool Safety Warnings Save all warnings and instructions for future reference. -
Page 4: Personal Safety
protected supply. Use of an RCD reduces the risk of electric shock. Important - Please read these instructions fully before starting assembly 3) Personal safety a) Stay alert, watch what you are doing and use General Power Tool Safety Warnings common sense when operating a power tool. -
Page 5: Hammer Safety Warnings
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. - Page 6 SYMBOL To reduce the risk of injury, user must read instruction manual Wear eye protection Wear ear protection Wear dust mask Double insulation Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. EN-6...
- Page 7 EN-7...
- Page 8 EN-8...
-
Page 9: Component List
6. ON/OFF SWITCH 7. AUXILIARY HANDLE Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type PDI750G / PDI750G.1 (PDI-designation of machinery, representative of Impact Drill) Rated voltage 230 -240V~ 50 Hz Rated power 750 W... -
Page 10: Noise Information
ACCESSORIES Auxiliary handle Depth gauge We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. - Page 11 Helping to minimize your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days.
-
Page 12: Maintenance
8. FORWARD AND REVERSE ROTATION CONTROL (SEE FIG. F) To change the rotational direction, push the forward/reverse selector switch to the right position (as viewed from the front of the drill). The rotation will now be forward rotation. Push the forward/reverse selector switch to the left position. -
Page 13: Environmental Protection
ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE –... -
Page 14: Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Description Impact Drill Type designation PDI750G (PDI-designation of machinery, representative of Impact Drill) Function Boring holes in various materials Complies with the following Directives: 2006/42/EC, 2011/65/EU, 2014/30/EU...
