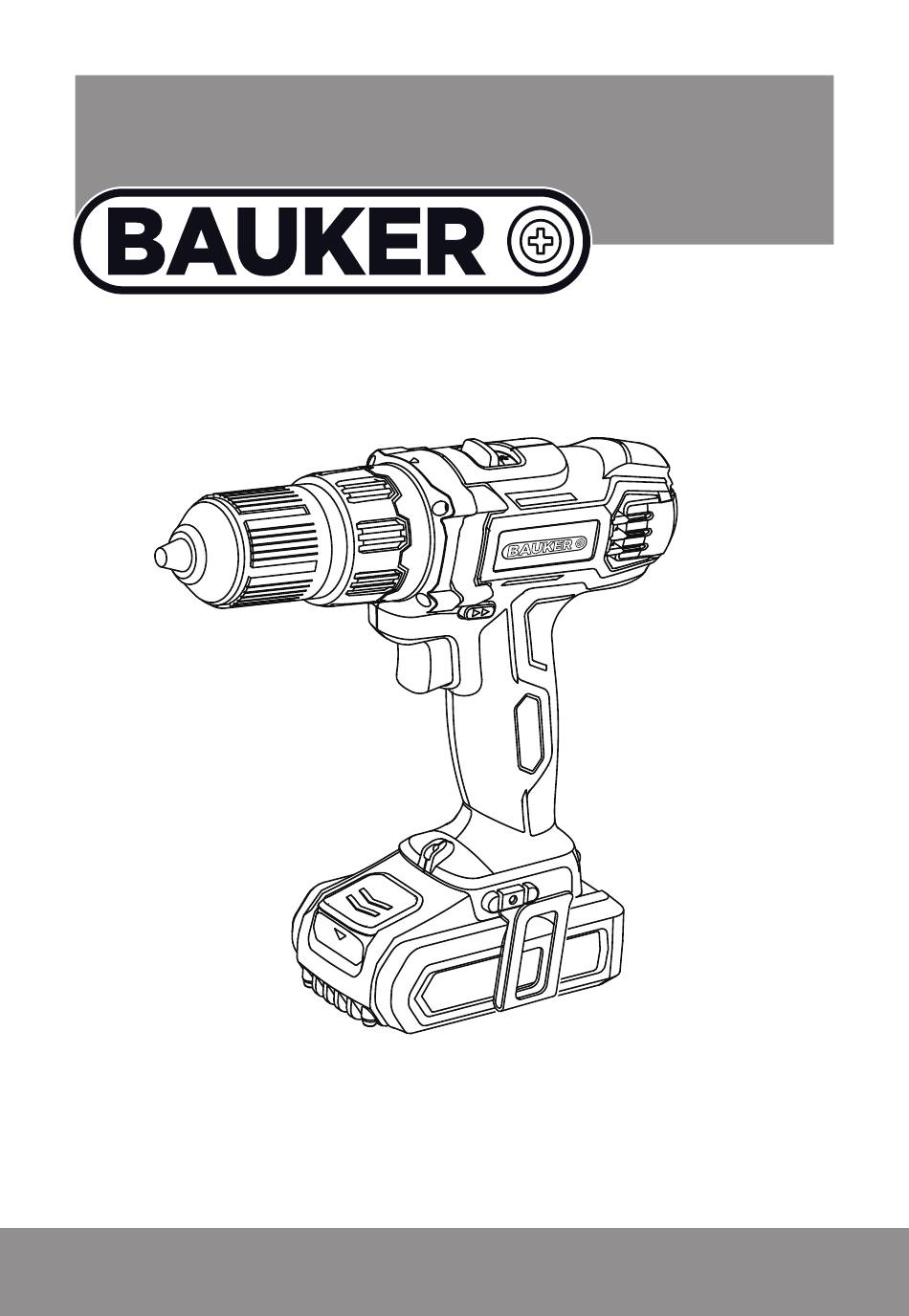

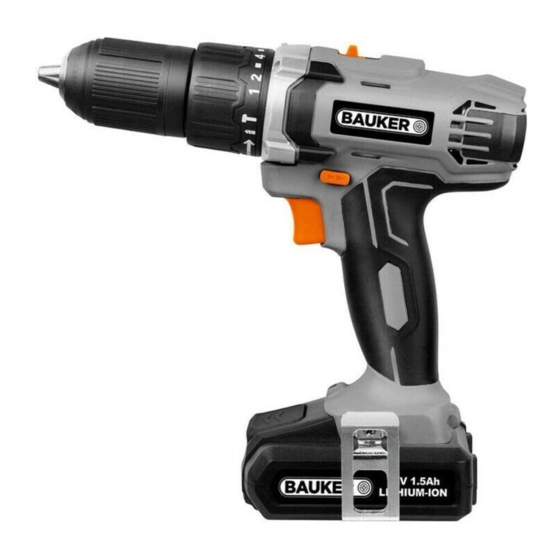

  • Page 1 CDI218W1 18V COMBI DRILL ORIGINAL INSTRUCTION MANUAL...
  • Page 2 ORIGINAL INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS Important - Please read these instructions fully before starting assembly WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions General Power Tool Safety Warnings may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.
  • Page 3 e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Important - Please read these instructions fully before starting assembly f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) General Power Tool Safety Warnings protected supply.
  • Page 4 4) Power tool use and care a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off.

  • Page 5: Drill Safety Warnings

    c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

  • Page 6: Additional Safety Instructions For Your Battery Charger

    a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

  • Page 7: Safety Warnings For Battery Pack

    4.5°C, or above 40.5°C. This is important as it can prevent serious damage to the battery pack. 17.Charge only battery pack of the same model provided by manufacturer and of models recommended by manufacturer. SAFETY WARNINGS FOR BATTERY PACK a) Do not dismantle, open or shred cells or battery pack.
  • Page 8 When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other. n) Recharge only with the charger specified by manufacturer. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 9 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Do not expose to rain or water Do not burn Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist.
  • Page 10 EN-10...
  • Page 11 A E2 EN-11...
  • Page 12 EN-12...

  • Page 13: Component List

    8 ON/OFF SWITCH 9 SIGHT LIGHT 10 BATTERY CHARGER Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type CDI218W1 (CDI-designation of machinery, representative of Cordless Drill) Voltage No load speed 0-400/0-1500/min Impact rate 0-6400/0-24000bpm...

  • Page 14: Noise Information

    ACCESSORIES Battery pack (ABP118W1) Charger (ACG118W) Belt clip We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

  • Page 15: Charging Procedure

    exposure level over the total working period. Helping to minimize your vibration exposure risk. ALWAYS use sharp chisels, drills and blades. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days.

  • Page 16: Operation

    OPERATION 1. INSTALLING AND REMOVING THE BATTERY PACK a) TO REMOVE THE BATTERY PACK (SEE FIG. B1) Depress the Battery Pack Release Button firmly first and then slide the Battery Pack out from your tool. b) TO INSTALL THE BATTERY PACK (SEE FIG. B2) Slide the fully charged Battery Pack onto the tool with sufficient force until it clicks into position.
  • Page 17 8. TORQUE ADJUSTMENT (SEE FIG. I) (Screw driving force of your drill driver) The torque is adjusted by rotating the torque adjustment ring. The torque is greater when the torque adjustment ring is set on a higher setting. The torque is less when the torque adjustment ring is set on a lower setting.

  • Page 18: Problem Solution

    13. TEMPERATURE DEPENDENT OVERLOAD PROTECTION When using as intended for the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature is too hot, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.

  • Page 19: Environmental Protection

    There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. Occasionally you may see sparks through the ventilation slots.

  • Page 20: Declaration Of Conformity

    Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Battery-powered Drill Description Type CDI218W1 (CDI-designation of machinery, representative of Cordless Drill) Function Drilling Complies with the following Directives, 2006/42/EC, 2011/65/EU, 2014/30/EU, 2014/35/EU Standards conform to...
