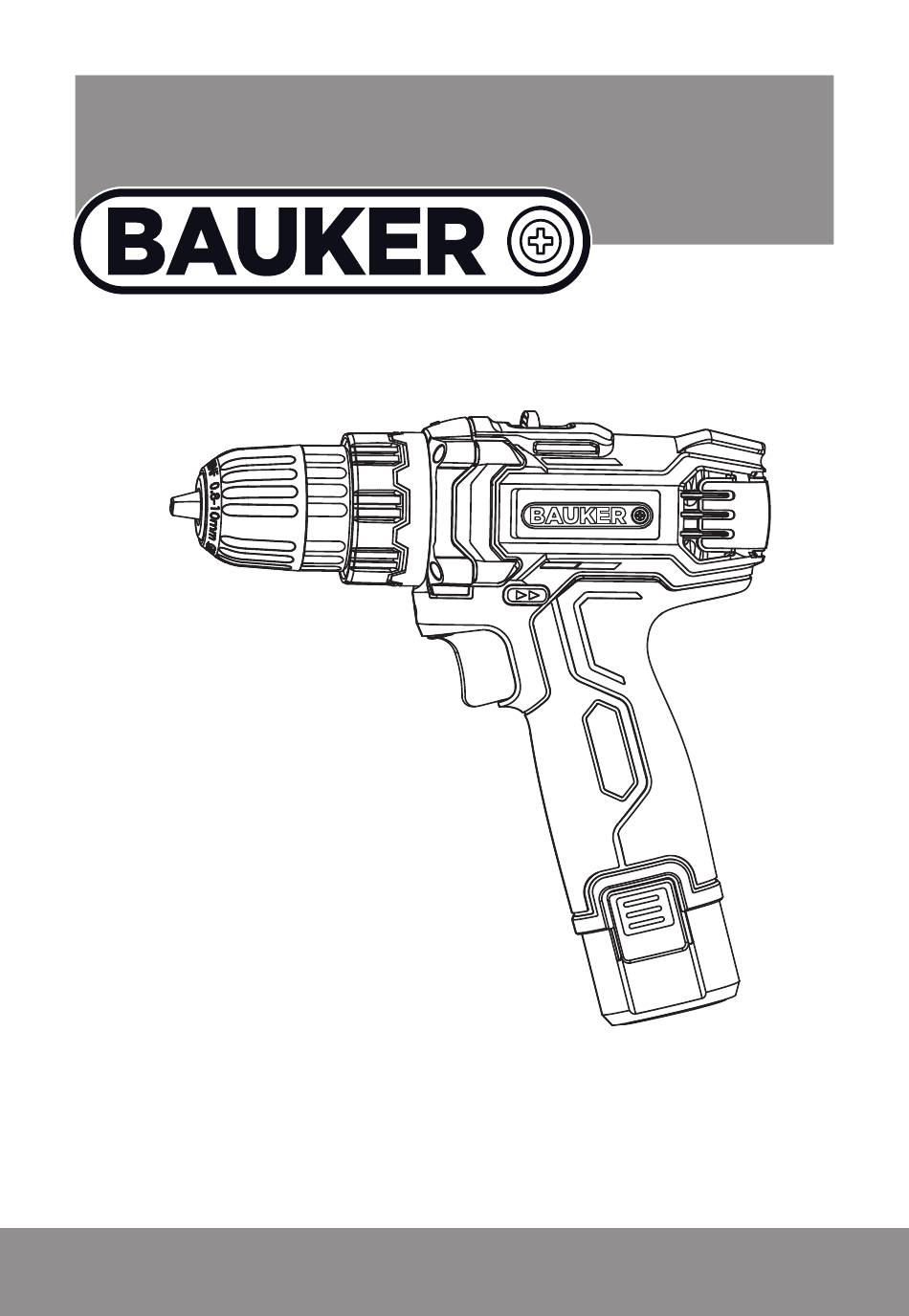

- Page 1 CDT212W 12V LITHIUM-ION DRILL DRIVER ORIGINAL INSTRUCTION MANUAL...
- Page 2 ORIGINAL INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions Important - Please read these instructions fully before starting assembly may result in electric shock, fire and/or serious injury. General Power Tool Safety Warnings Save all warnings and instructions for future reference.
- Page 3 f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric Important - Please read these instructions fully before starting assembly shock. General Power Tool Safety Warnings 3) Personal safety a) Stay alert, watch what you are doing and use...
- Page 4 it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
-
Page 5: Drill Safety Warnings
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 6) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. -
Page 6: Product Safety
f) Seek medical advice immediately if a cell or battery pack has been swallowed. g) Keep battery pack clean and dry. h) Wipe the battery pack terminals with a clean dry cloth if they become dirty. i) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure. -
Page 7: Additional Safety Instructions For Your Battery Charger
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. - Page 8 15. Do not recharge non-rechargeable batteries, as they can overheat and break. 16. Longer life and better performance can be obtained if the battery pack is charged when the air temperature is between 18 C and C. Do not charge the battery pack in air temperatures below C, or above 40.5 C.
- Page 9 SYMBOLS WARNING–To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Double insulation (only for charger) For indoor use only (only for charger) Read the operator’s manual T 2A Fuse Positive terminal Negative terminal...
- Page 10 EN-10...
- Page 11 EN-11...
-
Page 12: Component List
7. BATTERY PACK * 8. ON/OFF SWITCH 9. LED LIGHT *Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Type CDT212W (CDT-designation of machinery, representative of Battery- powered Drill) Charger voltage 220-240V~50/60Hz Voltage No load speed... -
Page 13: Noise Information
NOISE INFORMATION A weighted sound pressure = 64dB(A) = 3dB(A) A weighted sound power = 75dB(A) = 3dB(A) Wear ear protection when sound pressure is over 80dB (A) VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Drilling into metal Vibration emission value = 2.37m/s²... -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for driving in and loosening screws as well as for drilling in wood, metal and plastic. BEFORE PUTTING INTO OPERATION 1. RECHARGING BATTERIES a) CHARGING THE BATTERY The battery charger supplied is matched to the Li-ion battery installed in the machine. -
Page 15: Operation
OPERATION 1. ON / OFF SWITCH (SEE C) Depress the On/Off switch to start and release it to stop your drill. The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch. It is also a variable speed switch that delivers higher speed and torque with increased trigger pressure. -
Page 16: Problem Solution
5 - 9 for driving screws into soft material 10 - 18 for driving screws into soft and hard material for heavy drilling 7. AUTOMATIC SPINDLE LOCK The automatic spindle lock allows you to use it as a regular screwdriver. You can give an extra twist to firmly tighten a screw, loosen a very tight screw or continue working when the battery energy has expired. -
Page 17: Maintenance
Verify the torque position of the torque adjusting ring, you can find the torque-adjusting ring between the chuck and the drill body. Position 1 is the lowest torque (screw driving force) and position 18 is the highest torque (screw driving force). Position is for drill operation. - Page 18 PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows.
-
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK Declare that the product Battery-powered Drill Description CDT212W (CDT-designation of machinery, representative of Battery-powered Type Drill) Drilling Function Complies with the following Directives: 2006/42/EC, 2011/65/EU, 2014/30/EU, 2014/35/EU...
