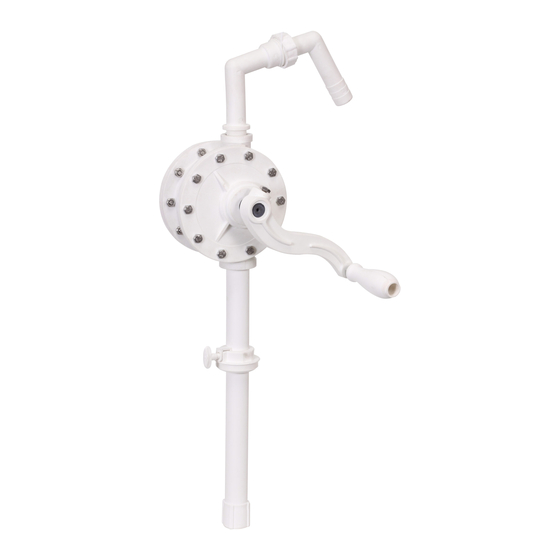

Plastic Rotary
Pump
Hand Rotary Pump is used for
dispensing Urea, Adblue, DEF,
Glycerine, Water based media,
Antifreeze, Detergents, Washing
fluids, Chemicals and other fluids
compatible with materials of
construction of the pump.
The pump is designed to deliver
up to 8 oz. per stroke.
This pump is self-priming. It is
supplied with two 2" MNPT bung
adapters designed to fit most
15-55 gallon drums & a 3 piece
threaded suction tube.
It can be used with most
petroleum based products.
Strainer fitted at the suction
tube inlet stops contaminants
from entering the pump
RECOMMENDED USE
Urea, DEF / Adblue,
DO NOT USE WITH
Acetone, Lacquer, Mineral Oils,
Solvents, Turpentine etc.
FEATURES
DELIVERS
UPTO
5 litres (1.3 gallon) /
20 turns
FLUIDS
UREA
DEF / ADBLUE
SPECIFICATIONS
PUMP TYPE
FLOW
MAXIMUM FLUID TEMPERATURE
MOUNTING
SUCTION TUBE OUTLET O.D.
SUCTION TUBE
DISCHARGE TUBE OUTLET O.D.
OUTLET TYPE
WETTED MATERIAL OF
CONSTRUCTION
MAXIMUM VISCOSITY
Bung Cross Bolt
Rotary
8 oz. per stroke
104° F / 40° C
2" MNPT Bung
1-7/32"
3 piece / Threaded
1"
2 Pc curved discharge spout
Stainless Steel, Ryton, Viton
and Glass Filled Polypropylene
2000 SSU
INSTRUCTION MANUAL
Bung Nut
Suction Tube
Strainer
600548
Discharge Spout
Crankshaft
Crank Arm
Handle
4
Advertisement
Related Manuals for Mäktig 600548
Summary of Contents for Mäktig 600548
- Page 1 INSTRUCTION MANUAL Plastic Rotary 600548 Pump Hand Rotary Pump is used for dispensing Urea, Adblue, DEF, Glycerine, Water based media, Antifreeze, Detergents, Washing fluids, Chemicals and other fluids compatible with materials of construction of the pump. Discharge Spout The pump is designed to deliver up to 8 oz.
- Page 2 PUMP ASSEMBLY & INSTALLATION Note: It is a good practice to use a sealant such as Teflon to have totally Assemble the 2 parts of the leak-proof connection. Discharge spout together & fasten the assembly onto If the pump is about to be re-used after an extended period of time, it the outlet on the main pump may loose it’s prime &...
- Page 3 PARTS LIST REF NO. PARTS DESCRIPTION QTY. Plastic Rotary Pump Body Lever (Machining) Grub Screw Handle Handle Pin E-Clip Suction Pipe Assembly Drum (Bung) Nut Bend Pipe Non Drip Cap TROUBLESHOOTING PROBLEM CAUSE SOLUTION Pump does not dispense fluid or does not prime Pump not able to create adequate suction Prime the pump.
