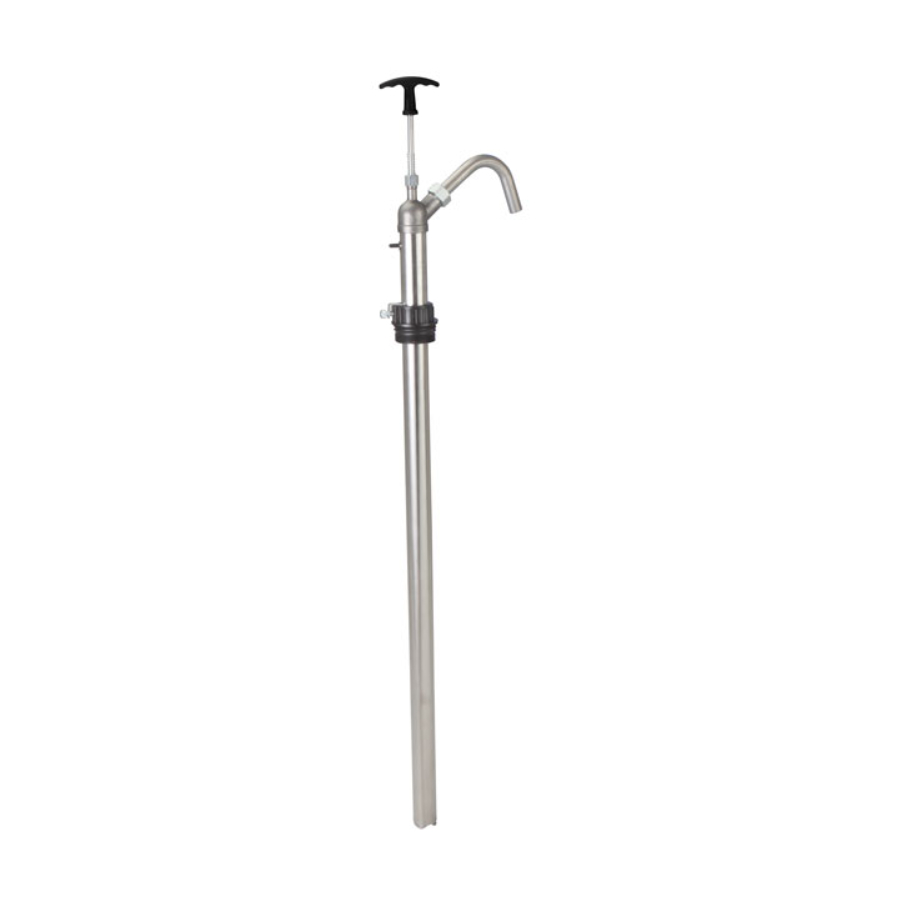

316 Stainless Steel
Vertical Lift Pump
Self priming vertical lift pump with
exceptional chemical resistance
Pump body made of 316 Stainless
Steel
PTFE piston makes it suitable for
use with wide variety of media
Pump includes a 2" bung adaptor
with dual threads for use with metal
and plastic drums
Grounding stud and locknut for
attaching grounding wire
Designed for use with 55 gallon
(205 litre) drums
Flow control tube can be inserted
into lift handle to restrict the flow
rate
WETTED COMPONENTS
316 Stainless Steel, PTFE
RECOMMENDED USE
Photographic chemicals / Solvents,
Diesel, Kerosene, Thinners, Acetone,
Benzene, Naptha, Urea, DEF,
Adblue, Light oil (upto SAE 40) etc.
DO NOT USE WITH
Heavy oils
FEATURES
FLOW RATE
UPTO
25 OZ. (750 ML) /
STROKE
SPECIFICATIONS
PUMP TYPE
Vertical Lift
MAX. VISCOSITY
SAE 40
ADAPTER TYPE
2"
MAX. TEMPERATURE
60° C (140°F)
Bung Cross Bolt
STAINLESS
STEEL
INSTRUCTION MANUAL
An extra set of spare seals and flow control
tubes included with each pump
600543

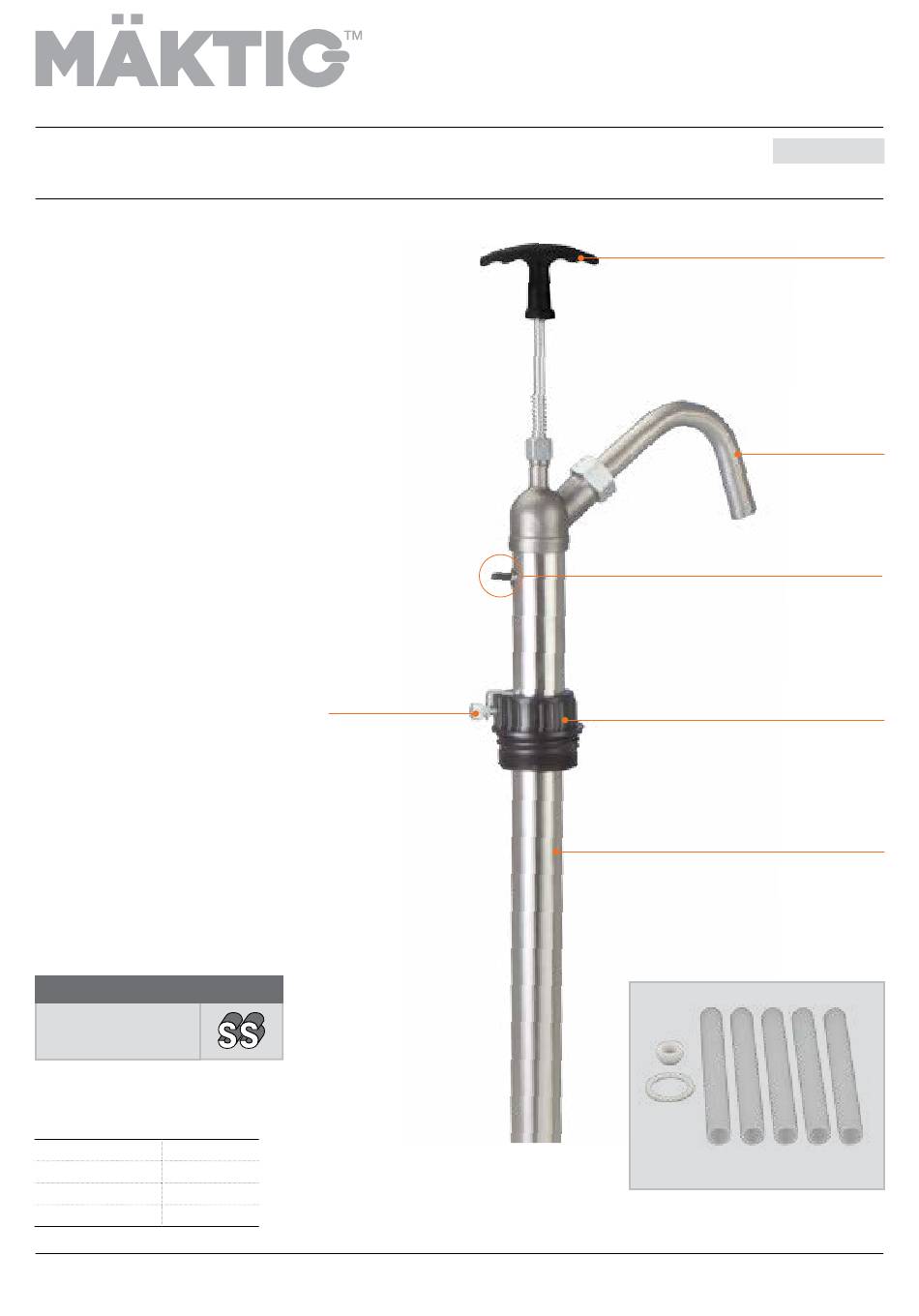

Vertical Lift
Handle
Outlet Spout
Grounding stud
and locknut
Bung adaptor with
dual threads
Suction Tube
5
Advertisement
Table of Contents
Related Manuals for Mäktig 316
Summary of Contents for Mäktig 316
- Page 1 600543 Vertical Lift Pump Self priming vertical lift pump with exceptional chemical resistance Vertical Lift Pump body made of 316 Stainless Handle Steel PTFE piston makes it suitable for use with wide variety of media Pump includes a 2" bung adaptor...
- Page 2 WARNING: STEPS ON HOW TO REPLACE THE DAMAGED SEAL Hold the rod (5) into a vice Failure to follow all safety information can result in death, personal injury and rotate the T-Handle (7) and/or property damage. anticlockwise to disassemble • Dispensing media can lead to a buildup of static electric charge it from the rod (5).
- Page 3 EXPLODED VIEW THREAD SEALANT THREAD SEALANT...
- Page 4 PARTS LIST REF NO. PARTS DESCRIPTION QTY. Head Barrel Seal Spring T-Handle Plunger Steel Washer Washer Sub. Assembly of Follower Cap Bend Pipe Assembly Lock Nut Protecting Cap Spring Bung Assembly TROUBLESHOOTING PROBLEM CAUSE SOLUTION Pump does not dispense fluid or does not Pump is drawing in air, instead of fluid.
