  • Page 1 User Guide 300Mbps Wi-Fi Range Extender ME10 REV1.0.0 1910080063...
  • Page 2 Specifications are subject to change without notice. is a registered trademark of MERCUSYS TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from MERCUSYS TECHNOLOGIES CO., LIMITED.
  • Page 3 The device complies with RF specifications when the device used at 20 cm from your body. UKCA Mark UKCA Declaration of Conformity Mercusys hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK Declaration of Conformity may be found at https://www.mercusys.com/support/ukca/...
  • Page 4 BSMI Notice 安全諮詢及注意事項 • • 請按照本產品注明的電源類型使用本產品。 • • 清潔本產品之前請先切斷電源。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 • • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 • • 請不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 設備名稱：300Mbps•Wi-Fi•Range•Extender••••••型號（型式）：ME10 Equipment•name•••••••••••••••••••••••••••••••••••••••••••••••••••••••Type•designation•(Type) 限用物質及其化學符號 Restricted•substances•and•its•chemical•symbols 單元 六價鉻• 多溴聯苯 多溴二苯醚 Unit 鉛 汞 鎘 Hexavalent• Polybrominated• Polybrominated• Lead Mercury Cadmium...
  • Page 5 Ǵ Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. Ǵ Do not use the device where wireless devices are not allowed. Ǵ The socket-outlet shall be installed near the equipment and shall be easily accessible. Ǵ...

  • Page 6: Table Of Contents

    CONTENTS Conventions ....................... 01 Chapter 1 Introduction ..................02 1.1 Product Overview ......................02 1.2 Product Appearance ......................02 Chapter 2 Connect the Extender to the Internet ........... 04 2.1 Method 1: Via a Web Browser ..................04 2.2 Method 2: Via WPS ......................07 Chapter 3 Customize Your Network ..............

  • Page 7: Conventions

    More Info Specifications and the latest software can be found at the product page at the official website http://www.mercusys.com. The Quick Installation Guide can be found where you find this guide or inside the package of the router.

  • Page 8: Chapter 1 Introduction

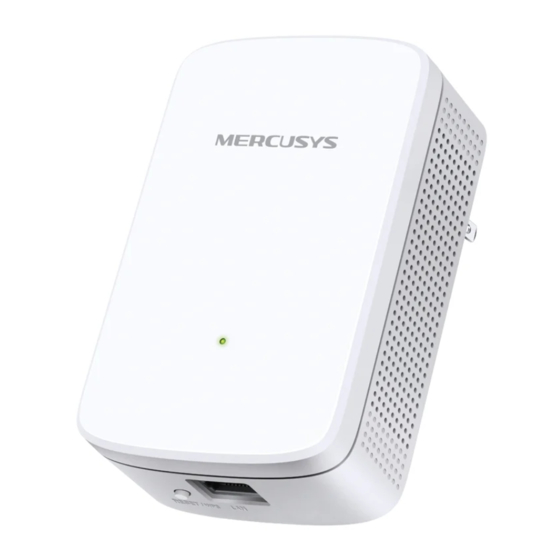

    Chapter 1 Introduction Chapter 1 Introduction Product Overview The range extender connects to your router wirelessly, strengthening its signal and expanding its coverage into areas that could not otherwise be reached. Multicolor LED helps you find the right location for your range extender for the best Wi-Fi extension.
  • Page 9 Chapter 1 Introduction 1.2.2 Item Explanation Item Description Press and hold this button for more than 5 seconds until the Signal RESET/WPS LED turns off to reset the extender. Button Press for 1 second to use the WPS function. Connect your Ethernet-only device (such as a Blu-ray player, game Ethernet console, DVR, or smart TV) to the Ethernet port of the extender to Port...

  • Page 10: Chapter 2 Connect The Extender To The Internet

    Chapter 2 Connect the Extender to the Internet Chapter 2 Connect the Extender to the Internet This chapter introduces how to boost your host wireless coverage. Please follow the step-by-step instructions to set up the internet connection. Power On Plug the extender into a power outlet near your router, and the Signal LED turns solid red.
  • Page 11 Chapter 2 Connect the Extender to the Internet 3) The extender will scan and display all available 2.4 GHz networks. Select your router's 2.4 GHz host network and enter the password to connect.
  • Page 12 Chapter 2 Connect the Extender to the Internet Note: If the network you want to extend is on but not listed, please try the following steps. • Move the extender closer to your router, and try again. • Click OTHER to manually enter the SSID (network name) and password of the network you want to extend. 4) Confirm the network password.

  • Page 13: Method 2: Via Wps

    Chapter 2 Connect the Extender to the Internet Smartphone Tablet Laptop Smart TV Game Console Desktop Method 2: Via WPS 1. Press the WPS button on your router. 2. Within two minutes, press the RESET/WPS button on your extender for 1 second. The Signal LED should change from flashing to solid green or orange, indicating a successful WPS connection.
  • Page 14 Chapter 2 Connect the Extender to the Internet Extended Network Name: Router’s network name with _EXT at the end Password: Same as your router Smartphone Tablet Laptop Smart TV Game Console Desktop...

  • Page 15: Chapter 3 Customize Your Network

    Chapter 3 Customize Your Network Chapter 3 Customize Your Network This chapter guides you on how to configure network settings that are available for this extender. Check Internet Status You can view the internet status of your extender to check whether you have successfully set up the extended network.

  • Page 16: Configure Wireless Network

    Chapter 3 Customize Your Network Click the icon of the Internet/Router/Range Extender/Clients to view corresponding information. Configure Wireless Network If you want to extend another host network after Quick Setup, you can refer to this section. Moreover, you can change the wireless settings for your extended network. Visit http://mwlogin.net, and log in with the password you set for the extender.

  • Page 17: Change Lan Settings

    Chapter 3 Customize Your Network 2. Create a new SSID in Extended 2.4GHz SSID or click COPY HOST SSID. The value is case-sensitive. 3. Click SAVE. Note: If you have changed the wireless settings via a wireless device, you will be disconnected after the settings are applied.

  • Page 18: Specify Dhcp Server Settings

    Chapter 3 Customize Your Network 4. Enter a new IP Address as needed, and leave the Subnet Mask as the default settings. 5. Enter the gateway that is in the same subnet as the IP Address. The gateway is usually the LAN IP address of your router. 6.

  • Page 19: Set Access Control

    Chapter 3 Customize Your Network 1. Select On to enable the DHCP Server of the extender. 2. Enter the starting and ending IP addresses in the IP Address Pool. 3. Enter other parameters if the ISP offers. The Default Gateway is automatically filled in and is the same as the LAN IP address of the router.
  • Page 20 Chapter 3 Customize Your Network 2. Select the device to be blocked in the Add Devices table. 3. Click ADD and the selected device(s) will be added to the blacklist. • To permit specific device(s): 1. Select Whitelist and click Add.

  • Page 21: Adjust Wi-Fi Coverage

    Chapter 3 Customize Your Network 2. Select from the Device List or add devices manually in the Add Devices table. Enter the Device Name and MAC Address if you add devices manually. 3. Click ADD and the selected device(s) will be added to the whitelist. Adjust Wi-Fi Coverage You can set the extender’s Wi-Fi coverage depending on how large you want your Wi-Fi area to be.
  • Page 22 Chapter 3 Customize Your Network 2. Go to Settings > Advanced Settings > Wi-Fi Coverage. 3. Select your desired Wi-Fi coverage level for the extender. 4. Click SAVE.

  • Page 23: Chapter 4 Use Your Extender As An Access Point

    Chapter 4 Use Your Extender as an Access Point Chapter 4 Use Your Extender as an Access Point The extender can work as an access point, transforming your existing wired network to a wireless one. Internet Ethernet1Ethernet2 Ethernet3 Ethernet4 Ethernet Internet Ethernet4 Wired Router Extender Devices...

  • Page 24: Connect Wireless Devices To The Extender

    Chapter 4 Use Your Extender as an Access Point 2 ) Confirm the information and click FINISH. 6. Connect the extender to your wired router via an Ethernet cable. Now you can enjoy the Wi-Fi. Connect Wireless Devices to the Extender Method 1: Connect to the extender manually You can connect your wireless devices to the extender by using the extender’s wireless network names and passwords.

  • Page 25: Led Explanation For The Access Point Mode

    Chapter 4 Use Your Extender as an Access Point LED Explanation for the Access Point Mode When the extender works in the Access Point mode, you can check its working status by following the LED Explanation table below. Status Indication (For Range Extender Mode) Power is off.

  • Page 26: Chapter 5 Manage The Extender

    Chapter 5 Manage the Extender Chapter 5 Manage the Extender This chapter presents how to manage and maintain your extender. Set System Time The System Time of the extender will be used for time-based function such as the Power Schedule function. If you have enabled the Daylight Saving Time feature, the system time will be synchronized with the daylight saving time you configure.

  • Page 27: Control The Led

    Chapter 5 Manage the Extender 2. Select the Start and End date and time of the daylight saving time at your local time zone. 3. Click SAVE. Control the LED The LED of the extender indicates its activities and status. You can turn off the LED when you don’t need it.

  • Page 28: Set Power Schedule

    Chapter 5 Manage the Extender Set Power Schedule The Power Schedule feature allows you to specify a time period during which the extender is off. 1. Visit http://mwlogin.net, and log in with the password you set for the extender. 2. Go to Settings > Advanced Settings > Power Schedule. •...

  • Page 29: Upgrade The Firmware

    Upgrade the Firmware You can download the latest firmware file from the Support page at our website www.mercusys.com and upgrade the extender to the latest firmware version. Note: • Make sure the latest firmware file is matched with the hardware version.
  • Page 30 Chapter 5 Manage the Extender 1. Visit http://mwlogin.net, and log in with the password you set for the extender. 2. Go to Settings > System Tools > Backup & Restore. • To back up configuration settings: Click BACK UP to save a copy of the current settings to your local computer. A ‘.bin’ file of the current settings will be stored on your computer.

  • Page 31: Reboot The Extender

    Chapter 5 Manage the Extender 2. Wait a few minutes for the reset and reboot. Note: 1. During the reset process, do not power off or reset the extender. 2. We strongly recommend you back up the current configuration settings before resetting the extender. Reboot the Extender You can reboot your extender to clear cache and enhance running performance if needed.

  • Page 32: Check System Log

    Chapter 5 Manage the Extender 3. Enter the old password. Then enter the new password twice (case-sensitive) and click SAVE. 4. Use the new password for future logins. Check System Log If the extender is not working properly, you can save the system log and send it to our technical support team.

  • Page 33: Faq (Frequently Asked Questions)

    FAQ (Frequently Asked Questions) FAQ (Frequently Asked Questions) Q1. How to restore my extender’s configuration to its factory default settings? Ǵ Option 1: With the extender powered on, press and hold the RESET/WPS button for more than 5 seconds until the Signal LED turns off, then release the button. Ǵ...
