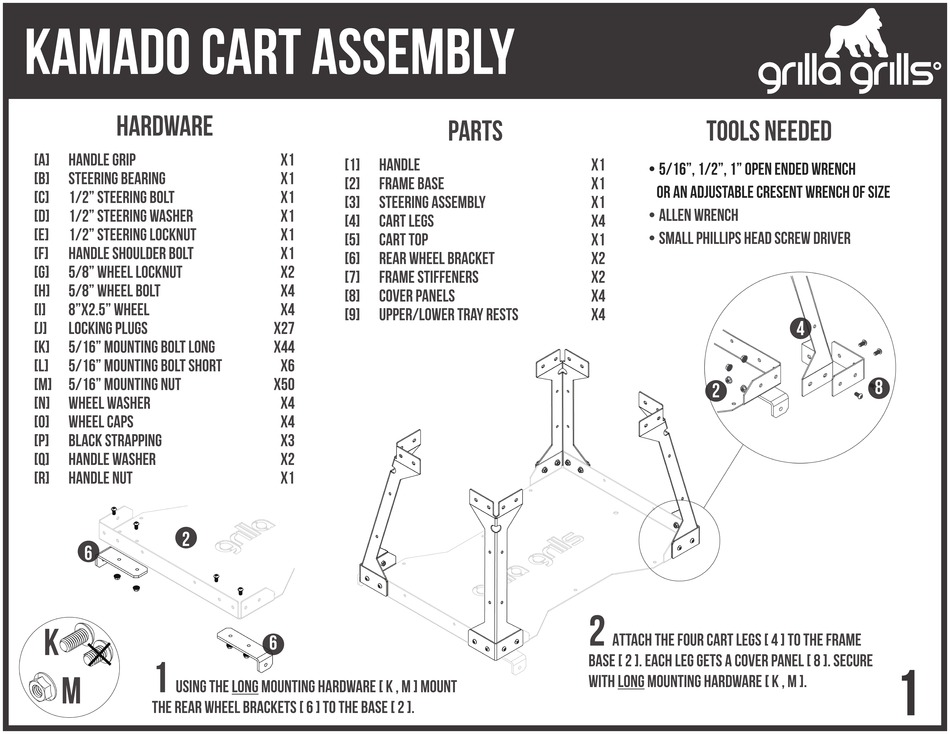

Kamado Cart Assembly
HArdware
[A]
Handle Grip
[B]
Steering Bearing
[C]
1/2" Steering Bolt
[D]
1/2" Steering Washer
[E]
1/2" Steering Locknut
[F]
Handle Shoulder Bolt
[G]
5/8" Wheel Locknut
[H]
5/8" Wheel Bolt
[I]
8"x2.5" Wheel
[J]
Locking Plugs
[K]
5/16" Mounting Bolt Long
[L]
5/16" Mounting Bolt Short
[M]
5/16" Mounting Nut
[N]
Wheel washer
[O]
Wheel Caps
[P]
Black Strapping
[Q]
Handle Washer
[R]
Handle Nut
2
6
K
1
M
using the long mounting hardware [ k , m ] mount
the rear wheel brackets [ 6 ] to the base [ 2 ].
Parts
x1
[1]
Handle
x1
[2]
Frame Base
x1
[3]
Steering Assembly
x1
[4]
Cart Legs
x1
[5]
Cart Top
x1
[6]
Rear Wheel Bracket
x2
[7]
Frame Stiffeners
x4
[8]
Cover Panels
x4
[9]
Upper/Lower Tray Rests
x27
x44
x6
x50
x4
x4
x3
X2
X1
6
Tools Needed
x1
• 5/16", 1/2", 1" Open Ended Wrench
x1
or an adjustable cresent wrench of size
x1
• Allen Wrench
x4
• Small phillips head screw driver
x1
x2
x2
x4
x4
2
2
Attach the four cart legs [ 4 ] to the frame
base [ 2 ]. Each leg gets a cover panel [ 8 ]. Secure
with long mounting hardware [ k , m ].
4
8
1
