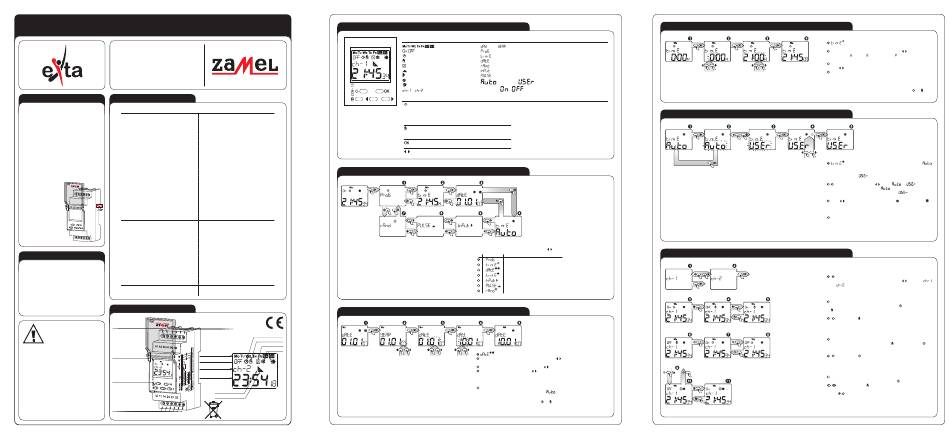

Zamel exta ZCM-12 Instruction Manual

ZCM-12, ZCM-12/U TIME PROGRAMMER
WEEK'S, DOUBLE CHANNEL
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl

DESCRIPTION

TECHNICAL DATA

The ZCM-12 control timers are de- ZCM-12
signed for time functions execution in
Power supply terminals: A1, A2
automatics and control systems. The
ZCM-12: 230 V AC~(-15 ÷ +10 %)
week's programmer controls the output
Input rated voltage:
ZCM-12/U: 24 ÷ 250 V AC, 30 ÷ 300 V DC
relay in dependence of program settings
Nominal frequency: 50 / 60 Hz
(day, hour). The device is fi tted with some
additional functions, among other things Rated power consumption: 2 W / 14 VA
the random function that is used for the
Number of channels: 2
operating mode changing by means of
Program quantity: 400 (100 On/Off pairs per channel)
an external push button. It is possible to
Program: daily, week's
mount the device on TH 35 rail and seal
Operating modes: manual, automatic, random, impulse
it if needed. In case of power supply
malfunction the unit battery sustain Change of season summer/ winter: automatic, manual
enables all settings saving and main-
Colour of LCD panel lighting: amber
taining.
Input: 2
Accuracy of time measurement: max ±1 s / 24 h at temp. 25 °C
CAUTION:
Before installing
Time of clock maintenance: 3 years
the device in the
Time of programme maintenance: 10 years
switchboard
Clamps of release system: IN1, IN1, IN2, IN2
or starting the
system operation Receiver input (supply) terminals: 11, 12, 14, 21, 22, 24
in order to pro-
Output relay parameters: 2 NO/NC-16 A/250 V AC1 4000 VA
gramme it, the bat-
Number of terminal clamps: 12
tery security sepa-
Section of connecting cables: 0,2 ÷ 2,50 mm
rator should be
removed against Ambient temperature range: -20 ÷ +60
discharging.
Operating position: freely
Mounting: rail TH 35 (PN-EN 60715)
Protection degree: IP20 (PN-EN 60529)

FEATURES

Protection level: II
● Week's cycle control in dependence Overvoltage category: II
of the current hour, Pollution degree: 2
● Double-module casing with a protec-
Dimensions: double-modular (35 mm) 90x35x66 mm
tion flap,
Weight: 0,140 kg
● Random op mode, additional IN con-
Reference standards: PN-EN 60730-1; PN-EN 60730-2-7
trol inputs,
PN-EN 61000-4-2,3,4,5,6,11
● Double-channel version,
● Many programs,
● LCD display illumination,

APPEARANCE

● Mounted on TH 35 rail.
The device is designed for sin-
Power terminals
gle-phase installation and must
(A1, A2)
be installed in accordance with
standards valid in a particular
country. The device should be
CAUTION connected according to the de-
tails included in this operating
manual. Installation, connection and control
Week's day
Display
should be carried out by a qualifi ed electrician
staff, who act in accordance with the service Relay state
manual and the device functions. Disassem-
Info fi eld
bling of the device is equal with a loss of gu-
arantee and can cause electric shock. Before
Current time (gg:mm:ss)
installation make sure the connection cables
Control buttons
are not under voltage. The cruciform head
screwdriver 3,5 mm should be used to instal
the device. Improper transport, storage, and
use of the device infl uence its wrong functio-
ning. It is not advisable to instal the device in
the following cases: if any device part is mis-
sing or the device is damaged or deformed.
In case of improper functioning of the device Relay output terminals
contact the producer. (12, 11, 14, 24, 21, 22)
DESCRIPTION
INSTRUCTION MANUAL

MAIN MENU

2
o C

DATE SETTING

Trigger terminals
(IN1, IN1, IN2, IN2)
Automatic mode
Manual mode
Random mode
Winter/summer time
IN active input
Impulse mode active
The symbol means selective collecting
of electrical and electronical equipment.
It is forbidden to put the used equipment
together with other waste
VER. 001_21.09.2009
Description of elements and messages displayed
- days of week - day, - year
- transmitter's status - program setting
- automatic mode - current time setting and summer/winter time shift
- manual mode - current date setting
- random mode - random mode setting
- impulse mode - extenal input setting
- external input - impulse mode setting
- winter time
- automatic, - user
- summer time
- channels - on/off
Button description
• in the main window – the automatic mode enter or relay state changeover, if the timer already in the automatic
mode;
• in the main window (3 seconds) – the random mode enter / exit;
• in the random mode – randomizing active/inactive manual toggle;
• the other windows – exit to a higher level without changes saving;
• in the main window – the manual mode enter or the relay state changeover, if the timer already in the manual mode;
• in the random mode – the relay state changeover and randomizing switch-OFF;
• the other windows - exit to a higher level without changes saving;
• in the main window – the main menu enter;
• the other windows – a submenu enter or setting acknowledgement;
• window/option toggle or set value increase/decrease.
Menu enter by pressing OK;
menu items scrolling by means of cursors .
Function Description
PROGRAM SETTING
CURRENT TIME SETTING
CURRENT DATE SETTING

WINTER / SUMMER TIME SETTING

External Input Setting
IMPULSE MODE SETTING
RANDOM MODE SETTING
- Current date setting; entry after pressing OK;
YEAR - choose adequate year with cursors confi rm with OK, range of
years: 2000÷2099;
MONTH - choose month with cursors confi rm with OK;
DAY - choose day with cursors confi rm with OK; the system has a protec-
tion against introducing incorrect parameter of a day for a given month (it
takes into account leap years and it automatically calculates the day of the
week on the basis of an arranged date);
Confi rmation causes movement to a date setting window and set-up of cur-
rent summer/ winter time - if the option is arranged.
It is possible to exit every submenu window in any moment without sav-
ing settings by pressing the button or .
TIME SETTING
OK;
HOUR- choose adequate hour with cursor
set in 1-24
with OK;
MINUTES - choose adequate parameter of minutes with cur-
sors confi rm with OK;
Confi rmation of the parameter of minutes causes simultane-
ous nullifi cation of the parameter of seconds and movement
to the window of time setting.
It is possible to exit every submenu window in any moment
without saving settings by pressing the button
WINTER / SUMMER TIME SETTING
- automatic time changing on the last March Sunday, at 2:00
into summer time and on the last October Sunday, at 3:00
into winter time,
by user; option entering after pressing OK;
MODE SETTING - with
edge with OK; after selecting
be toggled automatically; after selecting
enter the next window;
With
summer time; if the time icon is changed, the timer will cor-
rect the current time appropriately; acknowledge by pressing
OK;
After time mode selecting winter/summer time change win-
dow will be open.

OPERATING MODE CHANGE (AUTOMATIC, MANUAL, RANDOM)

Before the op mode changing it is necessary, in the
main window, to select with the cursors
or .
MANUAL OP MODE TOGGLE - if the main window is open
and the timer is in the automatic mode
will force the unit to toggle into the manual mode and the
relay state changeover;
Successive
changeover without the op mode changing;
AUTOMATIC MODE TOGGLE – if the main window is open
and the timer is in the manual mode pressing the key
force the unit to toggle into the auromatic mode and the relay
state changeover;
Successive
changeover without the op mode changing;
RANDOM MODE TOGGLE - in order to enter the random
mode it is necessary to press and hold
Pressing the key
order to exit the random mode it is necessary to press the
key .
- setting the current clock time; entry after pressing
which you can
or 1-12 (AM) and 1-12 (PM)format; confi rm
or .
- winter/summer time toggle mode selection:
- winter/summer timer toggle manual,
select or acknowl-
, winter/summer time will
mode you will
select winter/summer, where is winter time, -
channel
pressing the key
key pressing will force the relay state
will
key pressing will force the relay state
key for 3 secs;
forces the relay state changeover; in
