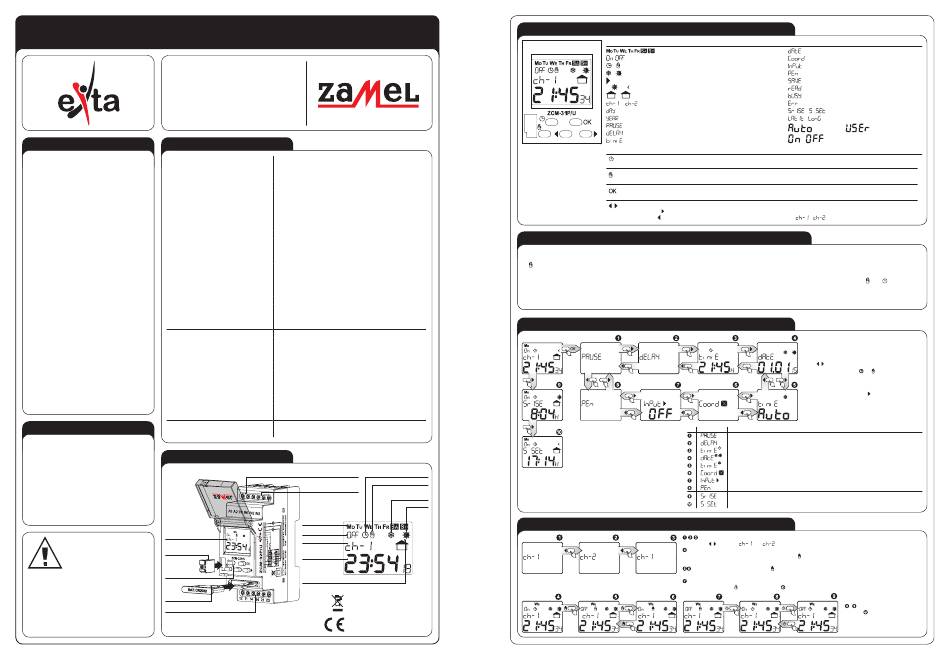

Zamel exta ZCM-32 Instruction Manual

ASTRONOMICAL TWO-CHANNELS
TIME PROGRAMMER ZCM-32, ZCM-32P/U
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamel.com, e-mail: export@zamel.pl

DESCRIPTION

TECHNICAL DATA

Digital steering clocks ZCM-31 are in-
tended for realization of time functions in
the systems of automatics and steering.
Switching on/off the appliance is con-
nected with sunrise and sunset (dawn an
dusk). The information about geographic
coordinates, the place of the clock's instal-
lation, current date and a shift in relation
to the universal time- all these factors are
used in order to calculate the time of sun-
rise and sunset. The system calculates
the end of civil dusk, that is the phase,
Change of season summer/ winter: automatic, manual
during which the centre of the Sun's face
is located on the 6 degrees angular below
the horizon- the Sun's face is not notice-
able but sky is lit with dispersed sunlight.
Cooperation with external memory:
The system additionally has a function of
a programmed night break and an abili- Accuracy of time measurement: max. ±1 s / 24 h at temp. 25 °C
ty of shifting the calculated time of sun-
rise and sunset within a range of +/- 120
Time of programme maintenance: 10 years
min. The construction of a casing makes
it possible to install the system on a rail
Clamps of receiver power supply: 11, 12, 14 - channel 1; 21, 22, 24 - channel 2
TH 35 and possible sealing the appliance
Parameters of transmitter contacts: 2NO/NC-16 A/250 V AC1 4000 VA
with lead. The construction of the sys-
Number of terminating clamps: 12
tem guarantees supporting of all the
Intersection of terminating conductors: 0,2 ÷ 2,50 mm
settings with battery energy when the
electric power supply is off.
In order to protect the battery during
storage, the ZCM series programmers
have a default setting, the so-called
storage mode in which the battery
power consumption is limited to a min-
imum.

FEATURES

● Steering dependant on a current hour
in an astronomical cycle,

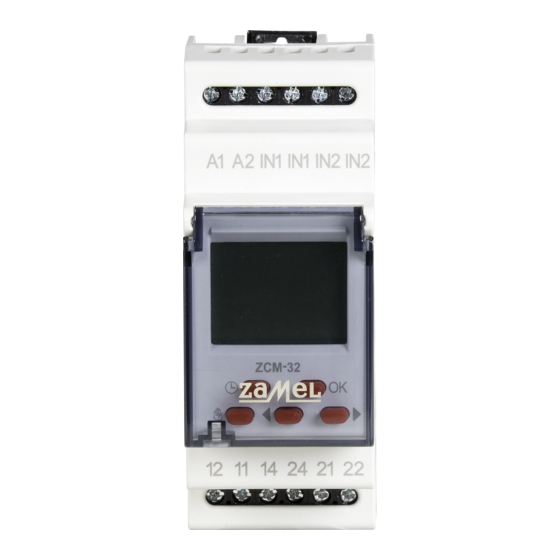

APPEARANCE**

● night break programme possibility and
a change of the calculated sunrise /
sunset time independently for channel
1 and 2,
● two-module casing with a protective
flap valve,
● steering inputs IN1, IN2,
● lighting the LCD display,
● mounted on TH 35 rail.
LCD display
The device should be connected to a
singlephase system according to current
standards. The device connections will External memory**
be described in this manual. Only qual-
ified electricians are allowed to mount,
connect and adjust the device. It is neces-
CAUTION
sary to read this manual and know the unit
Control buttons
functions before the device mounting. Do not disassembly
the device casing or you will lose any warranty rights and ex-
pose yourself to the electric shock hazard. Before mounting
operation make sure of disconnecting the connection wires
Replaceable battery
from the electric network. Use a cross-head screwdriver
of 3.5 mm diameter to mount the device. The relay should
Relay output terminals
be carried, stored and used in an appropriate way. Do not
(12, 12, 11, 11, 14, 14)
mount the device in case of any device parts lack, damage
or deformation. In case of malfunction please notify the man-
ufacturer.
* does not apply to the product ZCM-32
** apply to the product ZCM-32P/U
INSTRUCTION MANUAL
ZAMEL Sp. z o.o.
Power supply clamps: A1, A2
ZCM-32: 230 V AC~(-15 ÷ +10 %)
Rated voltage:
ZCM-32P/U: 24 ÷ 250 V AC, 30 ÷ 300 V DC
Rated frequency: 50 / 60 Hz
0,8 W / 1,4 VA - stand-by
Rated power consumption:
1,8 W / 3,5 VA - channel 1 and 2 in ON state
Number of channels: 2
Programme: astronomical (dawn an dusk)
Mode of work: manual, automatic
Colour of LCD panel lighting: amber
Input: yes - independent for the channel 1 and 2
ZCM-32: no
ZCM-32P/U: yes
Time of clock maintenance: 3 years
Clamps of release system: IN1, IN1 - for channel 1; IN2, IN2 - for channel 2
2
Temperature of work: -20 ÷ +60
o C
Position of work: any
Fixing of casing: TH 35 rail (PN-EN 60715)
Level of protection of casing: IP20 (PN-EN 60529)
Protectivity class: II
Overvoltage category: II
Level of pollution: 2
Measurements: two-module (35 mm) 90x35x66 mm
Weight: 0,17 kg
Compatibility with norms: PN-EN 60730-1; PN-EN 60730-2-7
PN-EN 61000-4-2,3,4,5,6,11
Power terminals
(A1, A2)
Trigger terminals*
(IN, IN, IN, IN)
Week's day
Relay state
Info field:
kanał 1, kanał 2
Current time
(gg:mm:ss)
Pora: day/noc
Do not dispose of this device with other
waste! In order to avoid harmful effects
on the environment and human health,
the used device should be stored in
designated areas. For this purpose, you
can dispose of household waste free of
charge and in any quantity to a collection
point set up, as well as to the shop when
you buy new equipment.
plik: zcm-32_32_pu_bateria_inst_ext_gb | modyfikacja: 25.10.2019
DESCRIPTION

STORAGE MODE / BATTERY REPLACEMENT

● ZCM series programmers have a default setting, the so called storage mode in order to protect the battery during storage.
● In case of battery backup operation the storage mode is switched off during the first use of the programmer. It is done by means of a short pressing of the
push-button and subsequent date and time adjustment.
● In case of a nominal power supply the storage mode is switched off during the first use of the programmer by means of date and time adjustment.
● Adjusting the programmer into the storage mode is realised by means of a reset - in order to carry it out press at the same time the
in the main window.
● ZCM series programmers have the option to replace the clock maintenance battery. Before replacing the battery, disconnect the programmer from the
external power supply. Please pay the attention to correct battery polarity when replacing.

MAIN MENU

Automatic mode
Manual mode
Winter time
Summer time

OPERATING MODE CHANGE (AUTOMATIC, MANUAL)

* does not apply to the product ZCM-32
** apply to the product ZCM-32P/U
Description of elements and messages displayed
- days of week
- relay status
/ - automatic mode / manual
/ - winter time / summer time
- external input
/ - day / night
- channels
- day
- year
- night break setting
- time correction setting
- current time setting and summer/winter time shift
Button description
• In the main window - entry to automatic mode ;
• In other windows - one level up exit without saving the introduced data;
• In the main window - entry to manual mode or change of transmitter status if the clock is already in the manual mode;
• In other windows - one level up exit without saving the introduced data;
• In the main window - entry to main menu;
• In other windows - entry to sub- menu or confirmation of the parameter being set;
• Shifting windows / menu options or increasing / decreasing of the parameter being set;
• Right cursor ( ) in the main window - displaying a time of sunrise and sunset;
• Left cursor ( ) in the main window - switching between channels
Function Description
NIGHT BREAK SETTING
CORRECTION OF TIME SETTING (SUNRISE/ SUNSET TIME)
CURRENT TIME SETTING
CURRENT DATE SETTING
Time Setting (SUMMER/WINTER SEASON)
GEOGRAPHICAL POSITION AND TIME ZONE SETTING
External Input Setting
EXTERNAL MEMORY ADJUSTMENT**
CALCULATED SUNRISE TIME
CALCULATED SUNSET TIME
Before the operating mode changing it is necessary, in the main window, to select with the
cursors channel or .
CHANGE OF MODE INTO MANUAL - if the system is situated in the main window and it is
in the automatic mode, pressing the button will cause a shift of the system from the manual
mode with simultaneous change of transmitter status;
Subsequent pressing of button will cause switching transmitter to the opposite status with-
out change of work mode;
CHANGE OF MODE INTO AUTOMATIC - if the system is placed in the main menu and it is in
the manual mode , pressing button
- current date setting
- geographical position setting
- EXTERNAL INPUT SETTING
- external memory operation**
- external memory record**
- external memory reading**
- external memory busy**
- reading / record error**
/ - sunrise time / sunset time
/ - latitude/ longitude
- automatic, - user's
- switched on / switched off
/ .
and push-buttons
We enter menu from the main window by
choosing OK; we move inside menu using cur-
sors . Return to the main window is possible
after pressing button or .
You can enter the windows of displaying cal-
culated sunrise/sunset time from the main
window by using cursor . Return is automat-
ical after 10 s.
will cause automatic shift to the automatic mode, with
simultaneous updating trans-
mitter status.
Subsequent pressing of
button will cause switching
transmitter to the opposite
status without change of work
mode.
